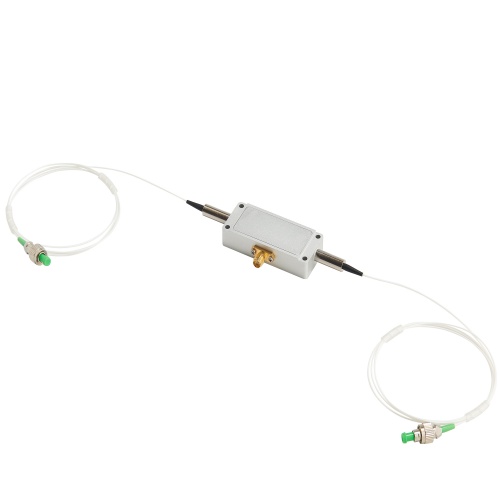

1064nm 100MHz Single-mode Fiber Acousto-Optic Modulator (AOM)

1064nm 100MHz Single-mode Fiber Acousto-Optic Modulator (AOM)

parameter
material :TeO2
wavelength:1064nm
Average optical power handling :  3W
Peak (pulsed) optical power:  3kW
Ultrasonic sound velocity : 4200m/s
Insertion loss  :1.5dB
Polarization Extinction Ratio：18dB
Extinction ratio : 50dB
Return loss: 40dB
Rising edge time ：50ns
frequency :100MHz
Frequency shifting : +/-100MHz
Frequency stability: 100+/-0.1%MHz
RF power :1.8W
Voltage VSWR :1.2:1
Input impedance:  50Ω
Device interface SMA
Fiber type ： 10/125 Single-mode
Fiber length： 1m
Fiber optic interface： FC/APC
Operating temperature ：-20~60℃
Storage temperature ：-30~70℃
