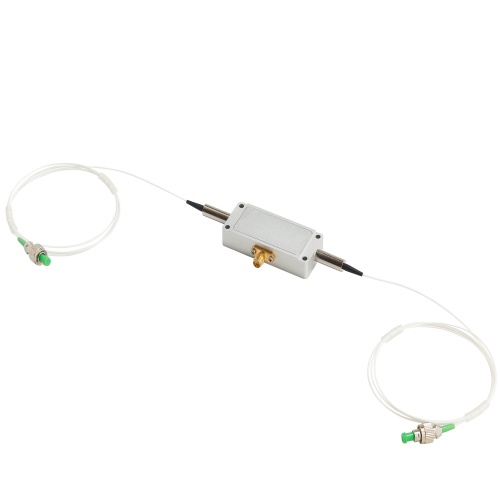

1310nm 200MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)

1310nm 200MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)

parameter
material :TeO2
wavelength:1310nm
Average optical power handling : 0.5W
Peak (pulsed) optical power: 0.5kW
Ultrasonic sound velocity : 4200m/s
Insertion loss :5dB
Polarization Extinction Ratio：18dB
Extinction ratio : 60dB
Return loss: 40dB
Rising edge time ：10ns
frequency :200MHz
Frequency shifting : +200MHz（
Customizable -200）
Frequency stability: 200+/-0.1%MHz
RF power :2.5W
Voltage VSWR :1.2:1
Input impedance: 50Ω
Device interface SMA
Fiber type ：PM71550
Fiber length： 1m
Fiber optic interface： FC/APC
Operating temperature ：-20~60℃
Storage temperature ：-30~70℃
