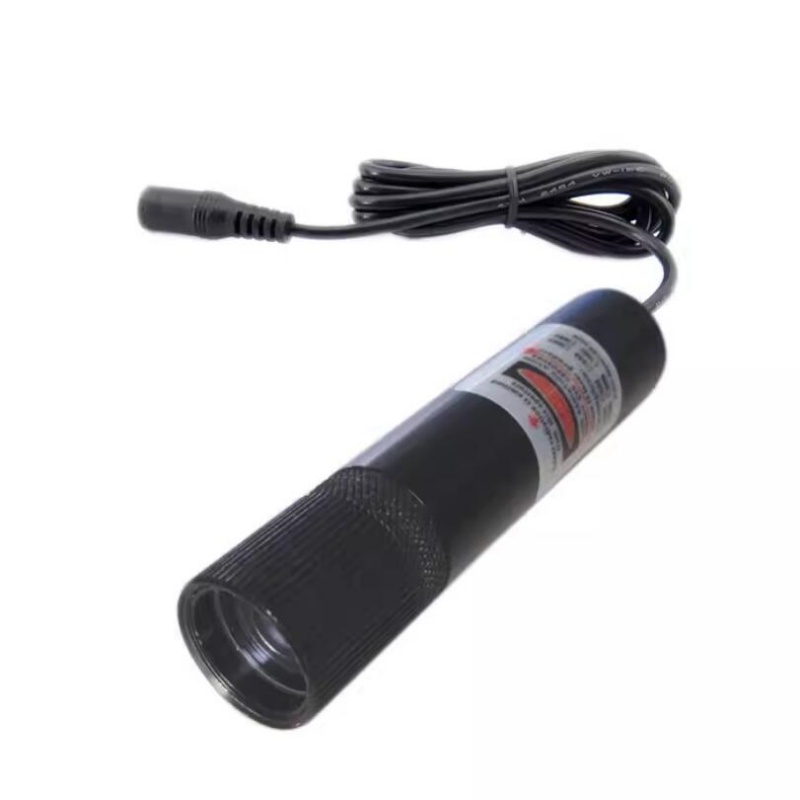

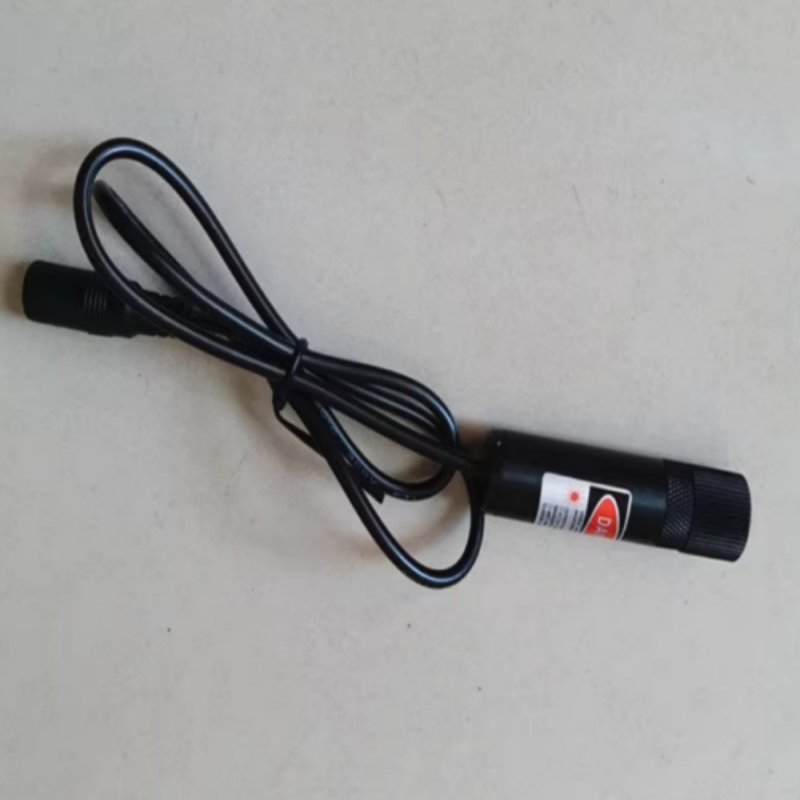

520nm Expanded Beam Green Dot Collimating Laser Module Laser Laser Light 10mW 10mm 15mm Parallel Aim

520nm Expanded Beam Green Dot Collimating Laser Module Laser Laser Light 10mW 10mm 15mm Parallel Aim

[Specification]

Wavelength:520nm
Power: 10mW
Exit pupil beam: 10mm or 15mm
Divergence angle: 0.1mrad~0.6mrad adjustable
Optical system: optically coated glass lens group
Lens focal length: 52mm
Spot description: The spot is less than 20mm at 50 meters, and can be adjusted to about 1.5mm at 6 meters. Adjustable down to 0.8 mm at 5 meters
Operating voltage: 3V or 5V
Laser class: III.a
Fuselage material: aviation aluminum alloy oxidation treatment
Operating temperature: -10°C~50°C
Storage temperature: -40°C~80°C
Dimensions: Φ20mm×100mm
Working time: More than 12 hours (with good heat dissipation)
