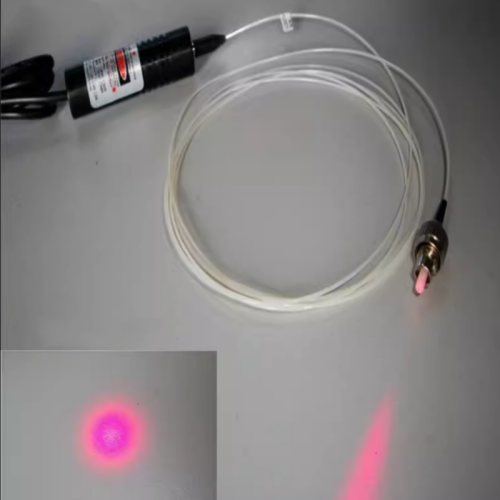

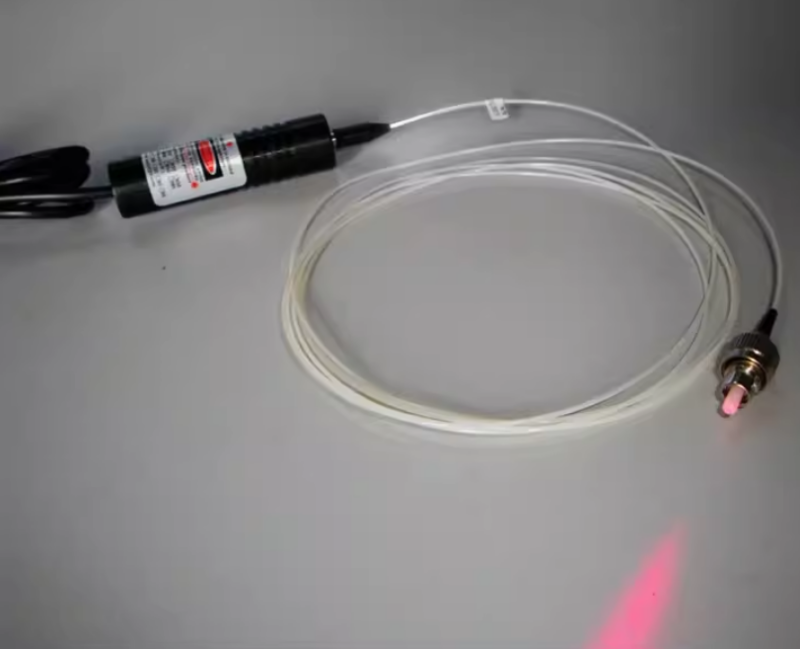

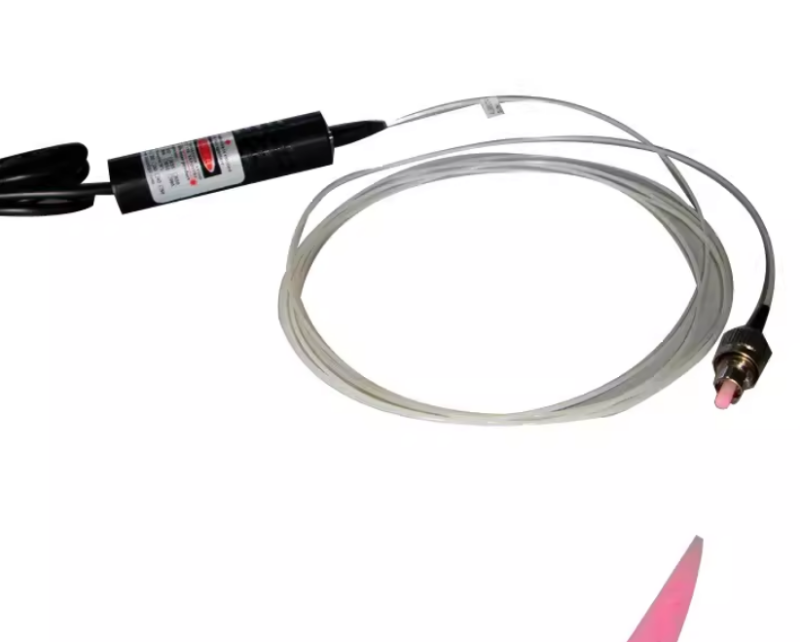

635nm Red Fiber Coupled Laser, Single Tunable Positive Dot 10-70mW FCPC

635nm Red Fiber Coupled Laser, Single Tunable Positive Dot 10-70mW FCPC

[Specification]

Wavelength: 635nm
Exit pupil power: 10mW~70mW (coupled power)
Divergence angle: 0.6mrad
Optical system: optically coated glass lens, high-quality aspheric plastic lens
Fiber core diameter: single-mode 4.5um (i.e. output aperture)
Cladding size: 125um
Fiber outer diameter: 0.9mm
Injection Numerical Aperture: 0.12
Spot description: The diameter of the smaller spot at 0.5 meters is about Φ0.5mm, and the spot size can be adjusted according to the distance used

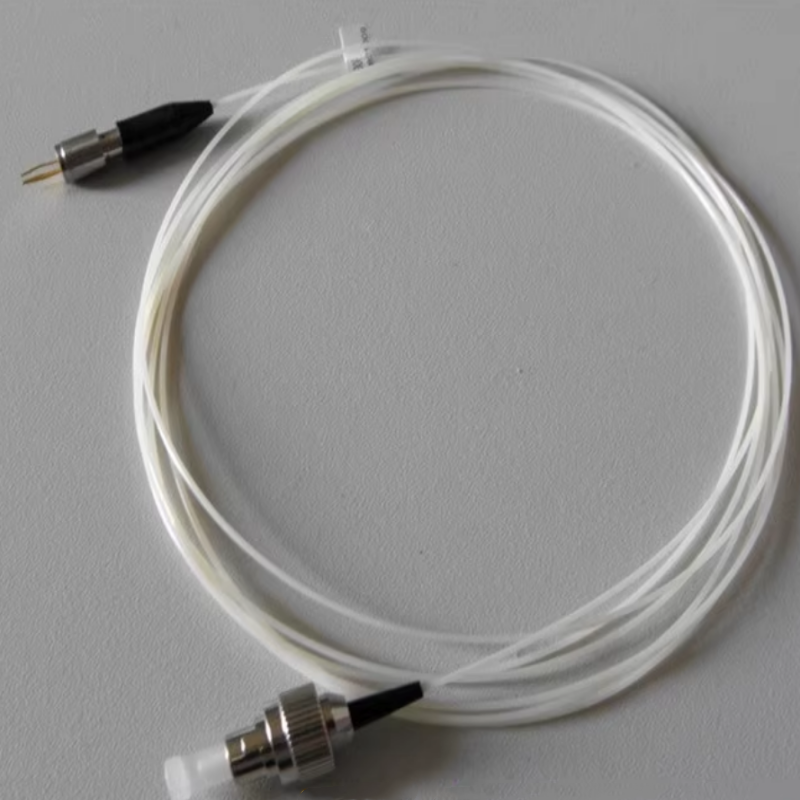

Fiber length: 1 meter
Fiber Material: Quartz Material
Working voltage: DC 3 or 5V optional (12V can be ordered, need to be consulted)
Laser class: II., III.a, III.b
Operating temperature: -10°C~50°C
Storage temperature: -40°C~80°C
Dimensions: Φ16mm×60mm
