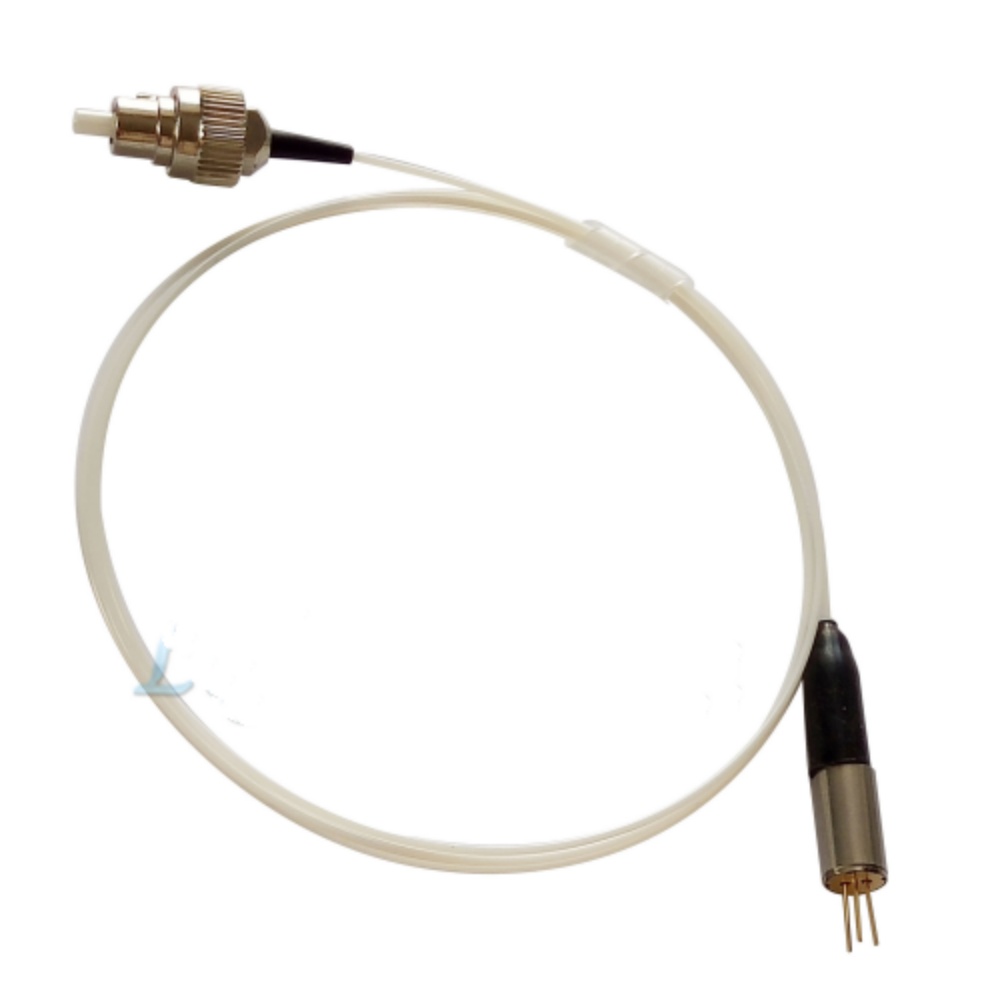

685nm 3mW 10mW FP SM Fiber coaxial laser diode photodetector

685nm 3mW 10mW FP SM Fiber coaxial laser diode photodetector

parameter

Model: LSFLD685-3
Wavelength：685nm
Output power：3mW.10mW
Reverse voltage:2V
Operating Current:42mA
Operating Voltage:2.6V
Soldering temperature(time):260℃
Operating temperature:-10～+60℃
Storage temperature:-40～+85℃

Features:
MQW F-P LD
Single mode
Metal can type hermetic
Low threshold/operate current
High reliable

Applications:
Optical Sensing
Industrial automatic control
Science analysis and experiment
Test and Measurement Equipment
Laser range finder

LSFLD685-3 685nm 3mW FP SM Fiber coaxial laser diode photodetector

LSFLD685-10 685nm 10mW FP SM Fiber coaxial laser diode photodetector
