Adjustable power 405nm 50mW 200mW violet laser module 12V TTL positioning light

Adjustable power 405nm  50mW 200mW violet laser module 12V TTL positioning light

Parameter:

Main machine size: L60mm * W30mm * H30mm
The mounting hole spacing of the cooling shell is 16mm, and the installation spacing of the fan is 24mm

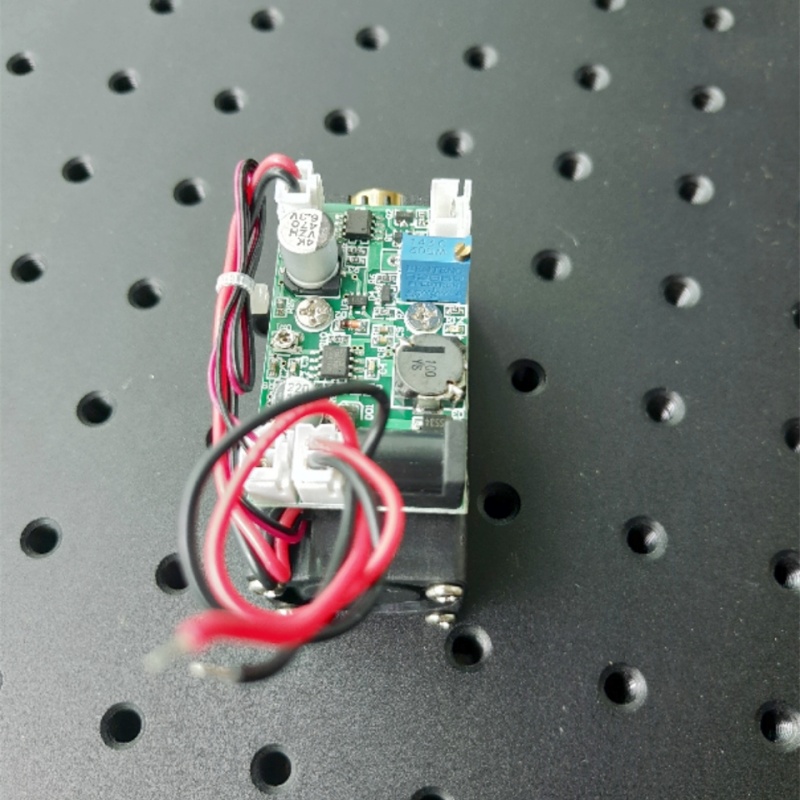

Board size: 49mm*29.2mm
Output wavelength: 405nm
Output power: 50mW.200mW
Refrigeration method: Aluminum heat dissipation
Modulation Frequency: Modulable
Working characteristics: can work continuously
Finish: Blue
Housing Material: Aluminum
Circuit control: constant current
Reverse polarity protection: with automatic identification of positive and negative poles
Working voltage: DC=12V
Operating current: I<120mA
Warm-up time: None
Operating temperature: -10°C~+40°C
Storage temperature: -10°C~+40°C

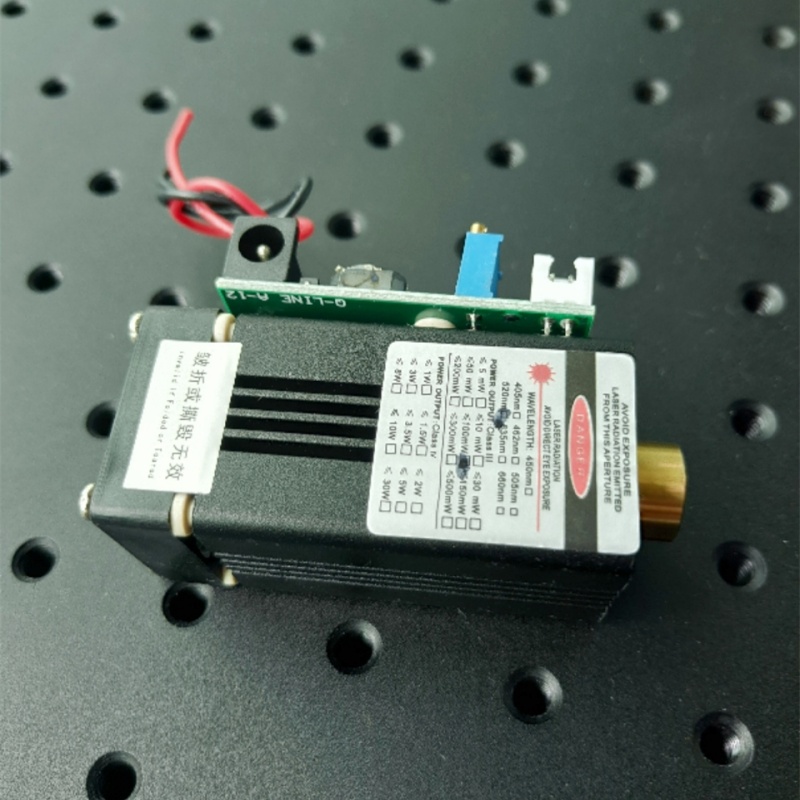

Structural features: laser tube, lens, heat dissipation shell
Note: The power supply is external.
