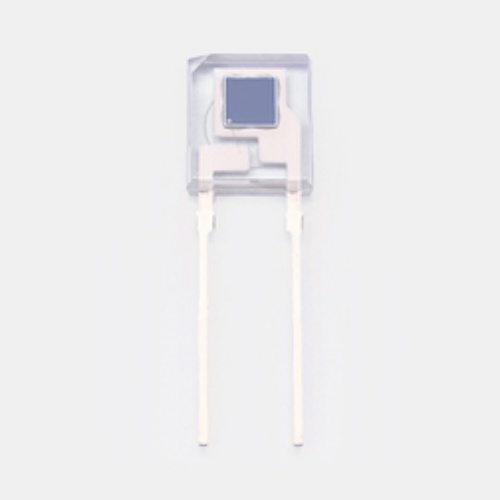

Hamamatsu S2506-02 silicon PIN photodiode for detect visible to near-infrared wavelengths

Hamamatsu S2506-02 silicon PIN photodiode for detect visible to near-infrared wavelengths

peculiarity
– Visible to the near-infrared band
– Plastic package: 7 × 7.8 mm
– Light-receiving dimensions: 2.77 × 2.77 mm
Reverse voltage (max): 20 V
Spectral response range: 320 to 1100 nm
Maximum sensitivity wavelength (typical): 960 nm

Hamamatsu S2506-02 silicon PIN photodiode
