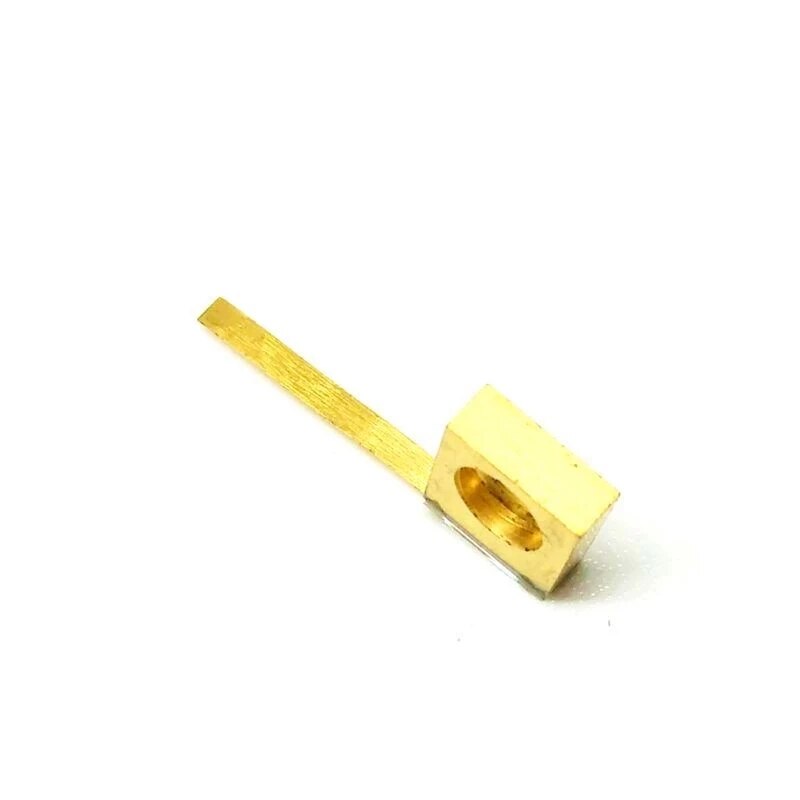

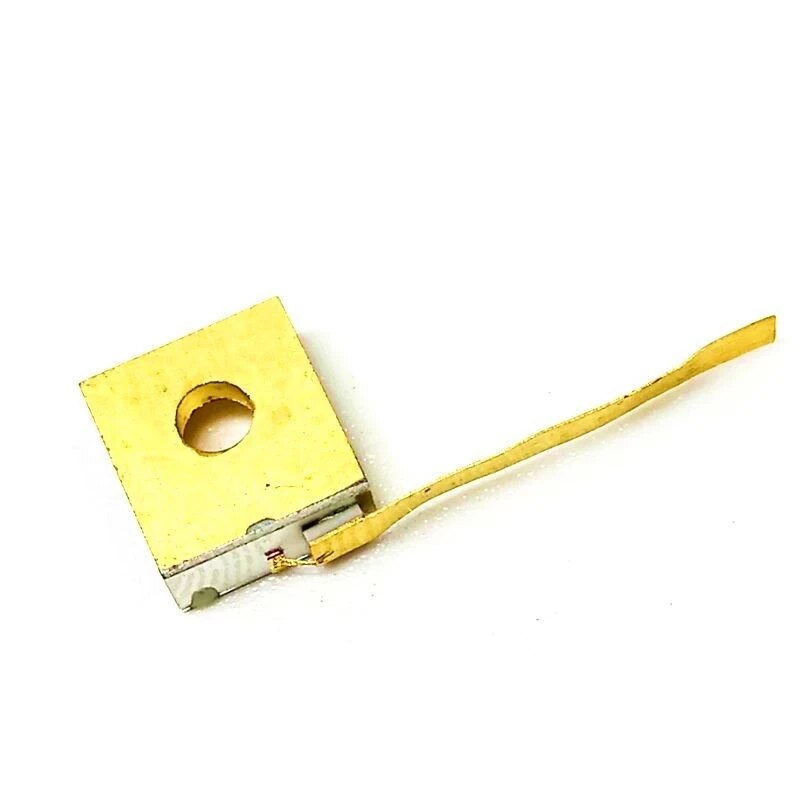

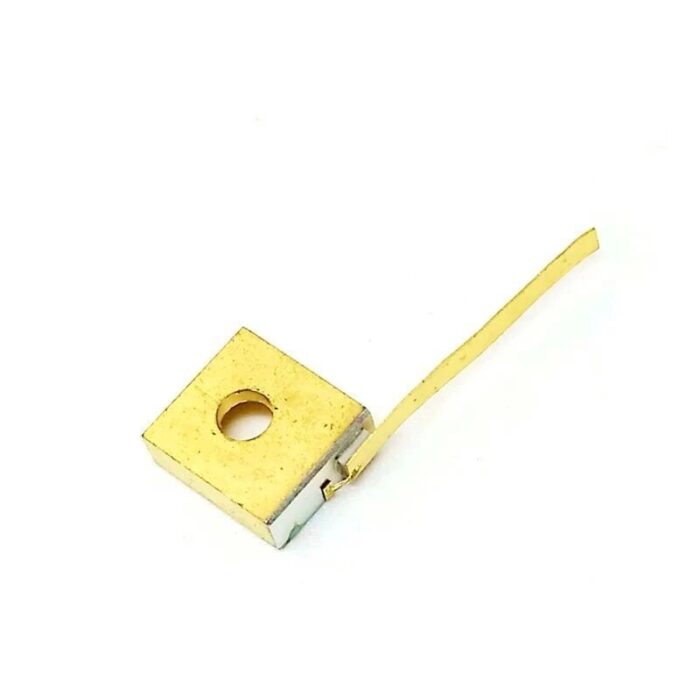

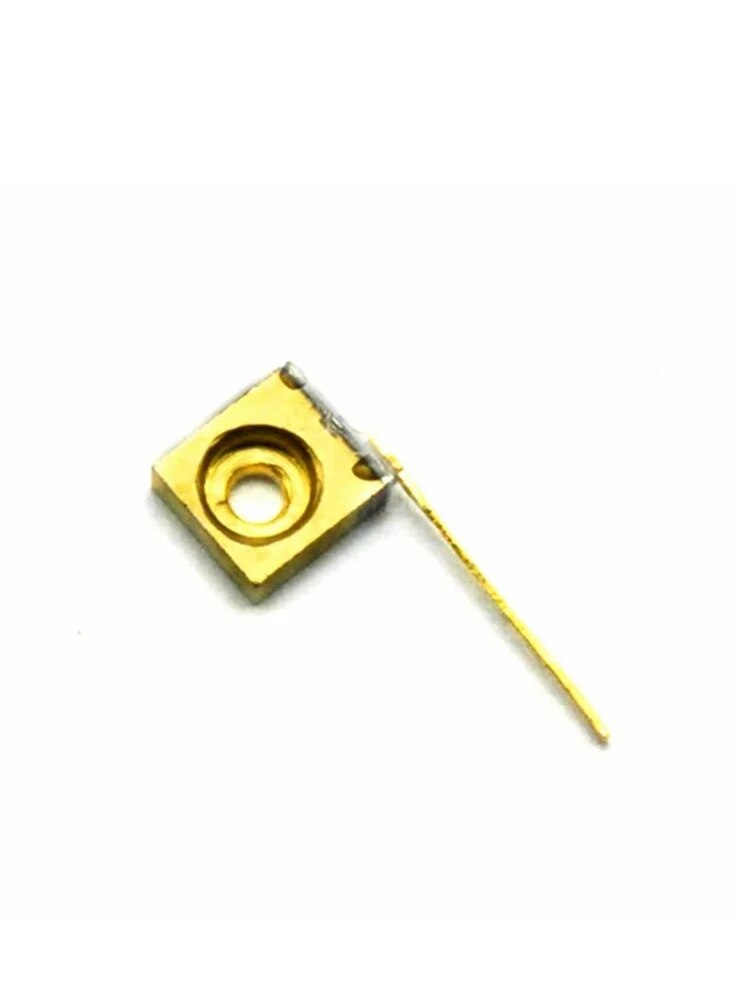

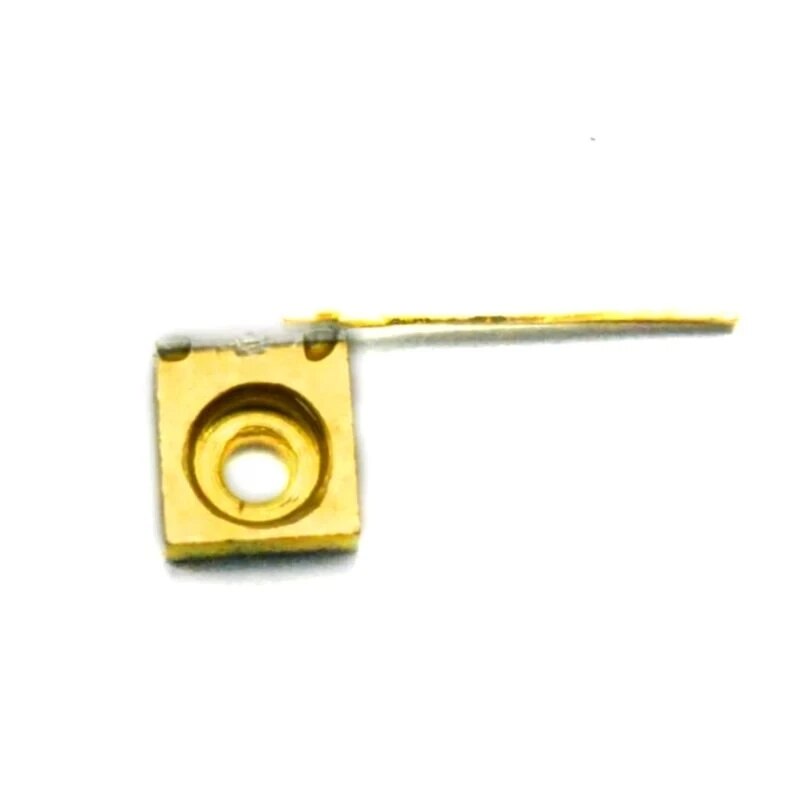

Infrared C-mount 808nm 810nm Laser Diode for Lab 500mW 0.5W LD Semiconductor

Parameter:

Wavelength(nm):805±5

Output Power(mw):500

Light-emitting area:100*1um

Working Current:I<530mA

Working Voltage:≤1.8V

Life expectancy:≥10,000 hours

Package:C-Mount

Dimensions:7X7mm

Features:

1.C- Mount encapsulation,the electrode lead is negative，the tube is positive.

2.For green laser pump.This Infrared laser diode is an industrial electronic component and used for as Industrial testament, Lab, DIY.

3.The laser diode is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.

4.Only for professionals.

Note:

1. Laser avoid directly point to eyes and skin;

2. Transport, storage, use must take anti-static measures, transport and storage between the need to connect short-circuit protection between the pins;

3. The use of constant current power supply, work to avoid surges;

4. should be rated current, rated power used;

5. Laser work to ensure good heat dissipation;

6. The best working temperature is 25 ℃;

7. Storage temperature: -20 ℃ -60 ℃

Package:

1pc * x Laser Diode for Lab 500mW 0.5W 808nm 810nm Infrared IR Lasers C-mount LD Semiconductor
