LPC836 650nm Red Laser TO18 5.6mm LD Diode 350mw 500mW CW
Product Description
Mitsubishi LPC836 650nm Red Laser TO18 5.6mm LD Diode 350mw 500mW CW
LPC-836 High Power 650nm Red Laser Diode: 380mW+ CW or 570mW+ Pulse
Brand new stock directly packed from the manufacturers production trays. This diode is used by several portable laser manufacturers for high power red lasers rated at 200-300mW
The specification given below is provided by the Japanese distributor.
Specification
Wavelength: 660nm
Output Power CW: 380mW ave. 400mW max.
Output Power Pulse: 570mW target duty 35%
Operating Current: <340mA
Operating Voltage: 2.2-3.0V
Maximum Operating Temperature: 75°C

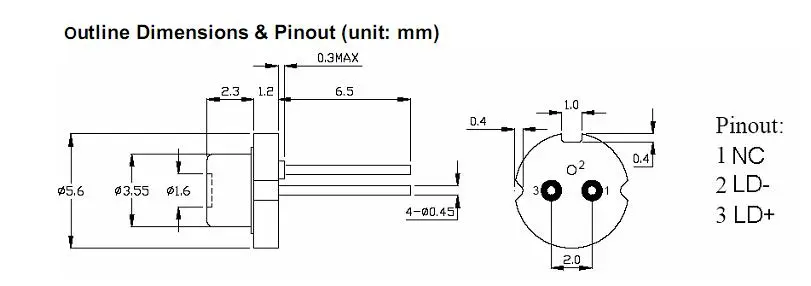

Package: TO18 Open (5.6mm)
Working Life: >10,000 hrs at 50% Max. Power
Type Name: LPC-836 (Mitsubishi)
Made in: Japan
Power more powerful (=LPC826+50mW)
Supplied in antistatic bag protected by a plastic box.
Note:
This diode needs careful handling, like all laser diodes it is static-sensitive but also the fine wire connections from the pin to the laser chip are exposed and easily broken.
