LSGPD-UVC1.5 photodiode 210-280nm 1.5mm UVC photodiode photodetector $89.00 – $99.00

LSGPD-UVA1.5 UV 1.5mm photodiode 230-390nm ultraviolet photodiode photodetector With fiber coupling

$79.00 – $99.00

Clear
Compare
Add to wishlist
SKU: N/A Category:
Description

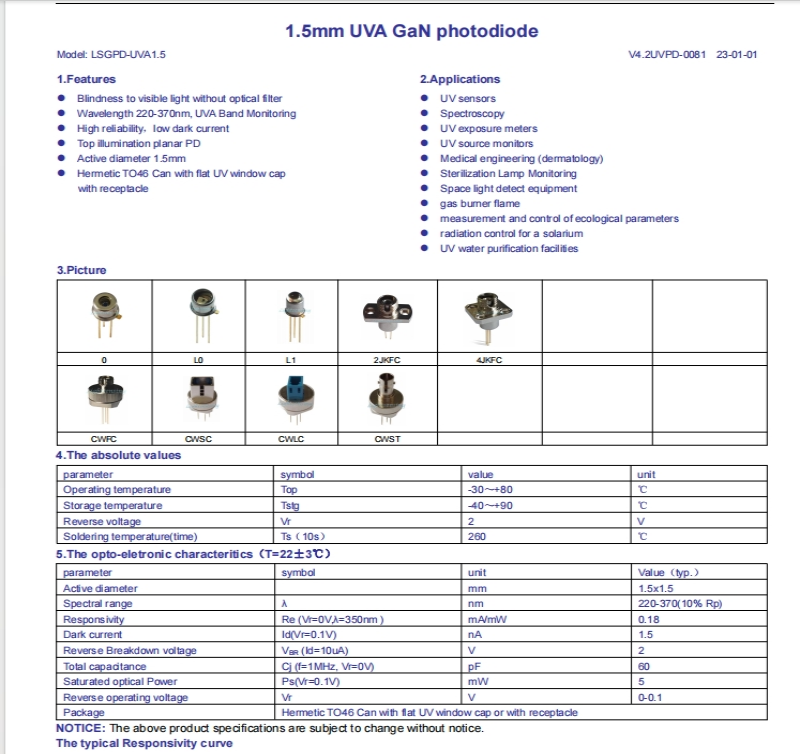

LSGPD-UVA1.5 UV 1.5mm photodiode 230-390nm ultraviolet photodiode photodetector With fiber coupling

Blindness to visible light without optical filter

Wavelength 220-370nm, UVA Band Monitoring

High reliability, low dark current

Top illumination planar PD

Active diameter 1.5mm

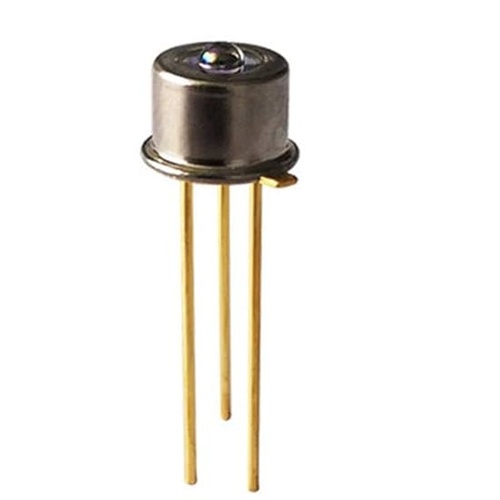

Hermetic TO46 Can with flat UV window capwith receptacle

LSGPD-UVA1.5 UV 1.5mm photodiode 230-390nm ultraviolet photodiode photodetector With fiber coupling

LSGPD-UVA1.5 UV 1.5mm photodiode 230-390nm ultraviolet photodiode photodetector With fiber coupling

LSGPD-UVA1.5 UV 1.5mm photodiode 230-390nm ultraviolet photodiode photodetector With fiber coupling

LSGPD-UVA1.5 UV 1.5mm photodiode 230-390nm ultraviolet photodiode photodetector With fiber coupling

Additional information
Size

2PIN, 3PIN, Fiber coupling
