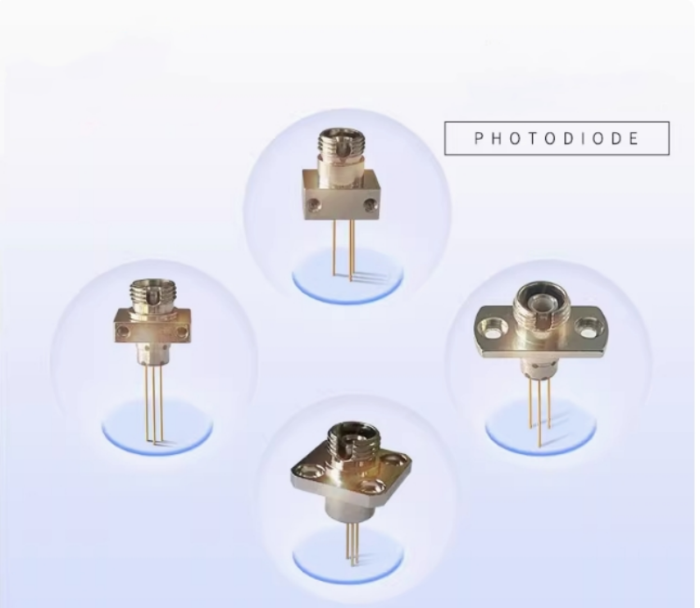

LSGPD-UVC1.5 photodiode 210-280nm 1.5mm UVC photodiode photodetector

LSGPD-UVC1.5 photodiode 210-280nm 1.5mm UVC photodiode photodetector

Features:
Model: LSGPD-UVC1.5
Blindness to visible light without optical filter
Wavelength 210-280nm,Full UV Band Monitoring
High reliability,low dark current
Top illumination planar PD
Active diameter 1.5mm
Hermetic TO46 Can with UV flat-window cap with receptale

Applications:
 UV sensors
 Pure UV-C Monitoring，
 Sterilization Lamp Monitoring
 Environmental technology
 medical applications
 industrial sensors
 inspecting and controlling of UV radiation

parameter

Model: LSGPD-UVC1.5
Wavelength：210-280nm
Active diameter：1.5×1.5mm
Saturated Optical Power：8mW
Forward current:1mA
Reverse voltage:2V
package:TO46
Soldering temperature(time):260℃
Operating temperature:-30～+80℃
Storage temperature:-40～+90
