LSIPD-UL0.5 800-1700nm 0.5mm Low Dark Current InGaAs PIN photodiode photodetector

LSIPD-UL0.5 800-1700nm 0.5mm Low Dark Current InGaAs PIN photodiode photodetector

parameter

Model: LSIPD-UL0.5
Wavelength：800-1700nm
Active diameter：0.5 ×0.5mm
Saturated Optical Power：8mW
Reverse voltage：10V
Reverse Breakdown voltage:30V

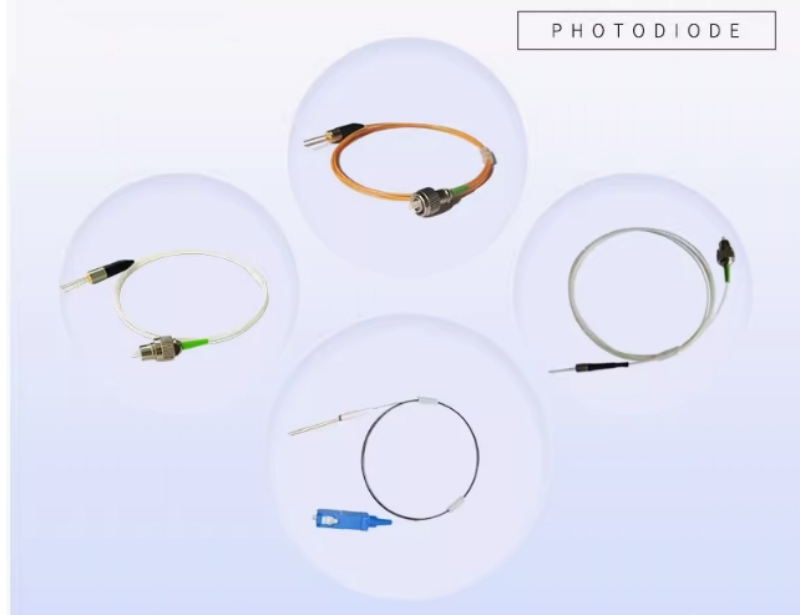

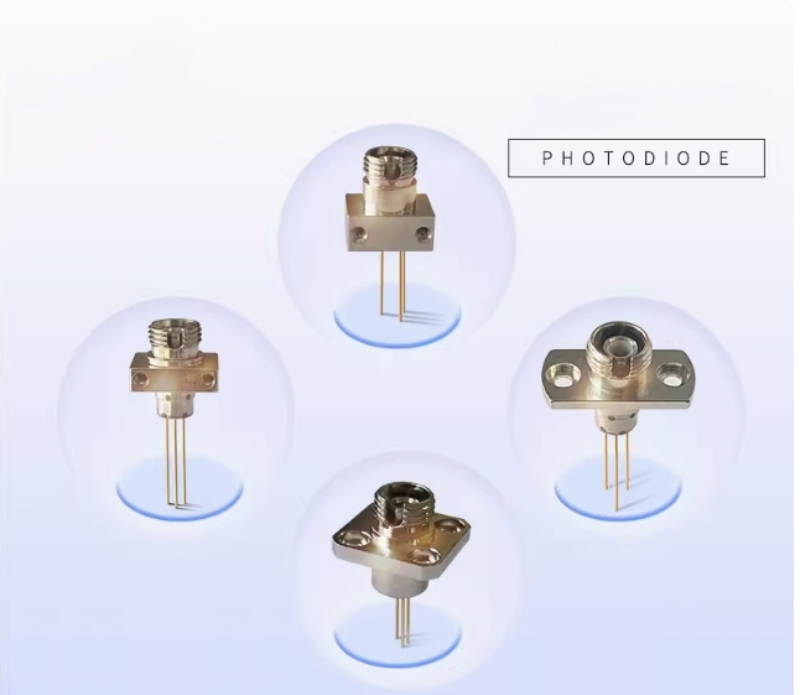

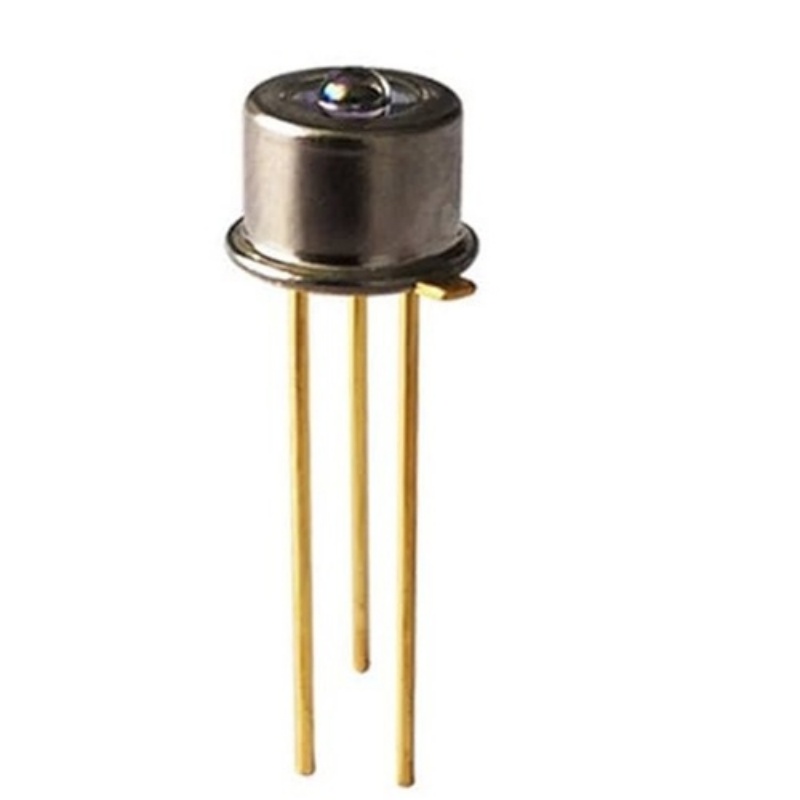

package:Hermetic TO46 Can with receptacle or fiber coupling
Soldering temperature(time):260℃
Operating temperature:-40～+85℃
Storage temperature:-40～+100℃

Features:
High reliability, Ultra low dark current
Top illumination Planar PIN PD
Active diameter 0.5mm
TO46 Can with receptacle or fiber coupling

Applications:
Optical sensor
Optical power meter
Industrial automatic control
Science analysis and experiment
Space light detect equipment
Response spectrum testing
