LSIPD22-0.5 800-2200nm 0.5×0.5mm InGaAs PIN photodiode photodetector

LSIPD22-0.5 800-2200nm 0.5×0.5mm InGaAs PIN photodiode photodetector

parameter

Model:LSIPD22-0.5
Wavelength：800-2200nm
Active diameter：0.5mm ×0.5mm
Saturated Optical Pow er：3mW
Reverse voltage：1V
Reverse Breakdown voltage：3V

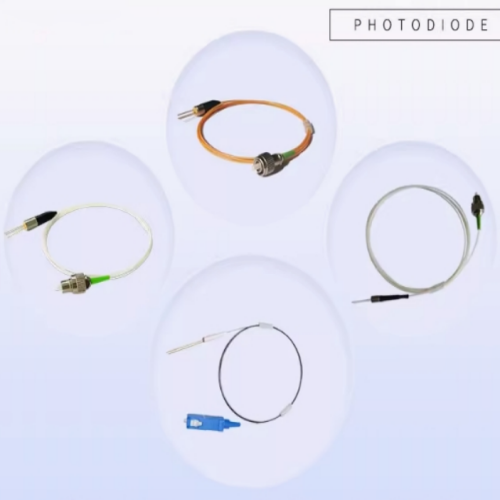

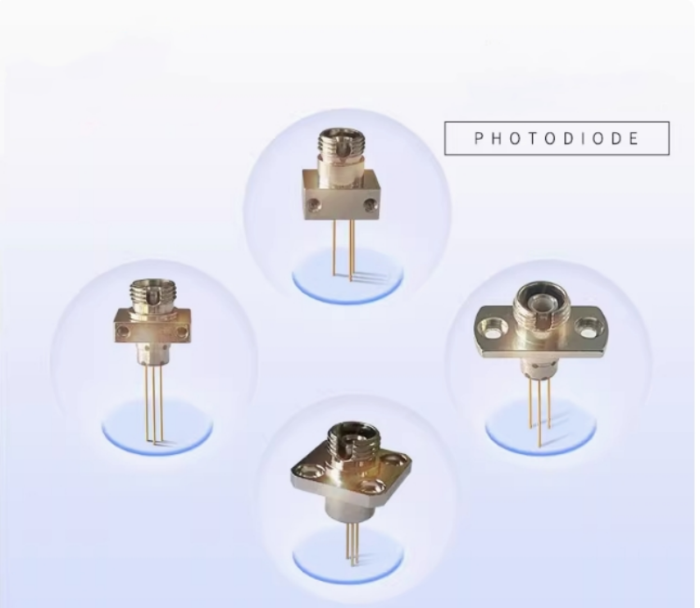

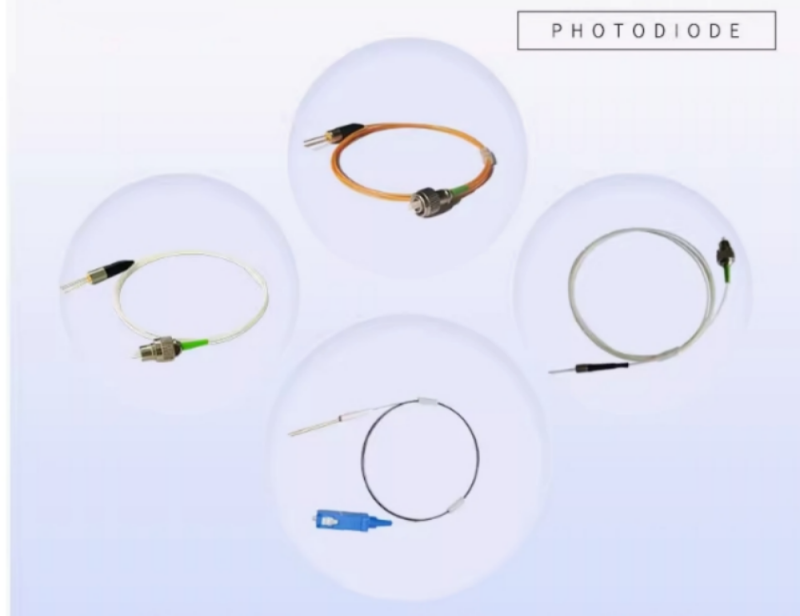

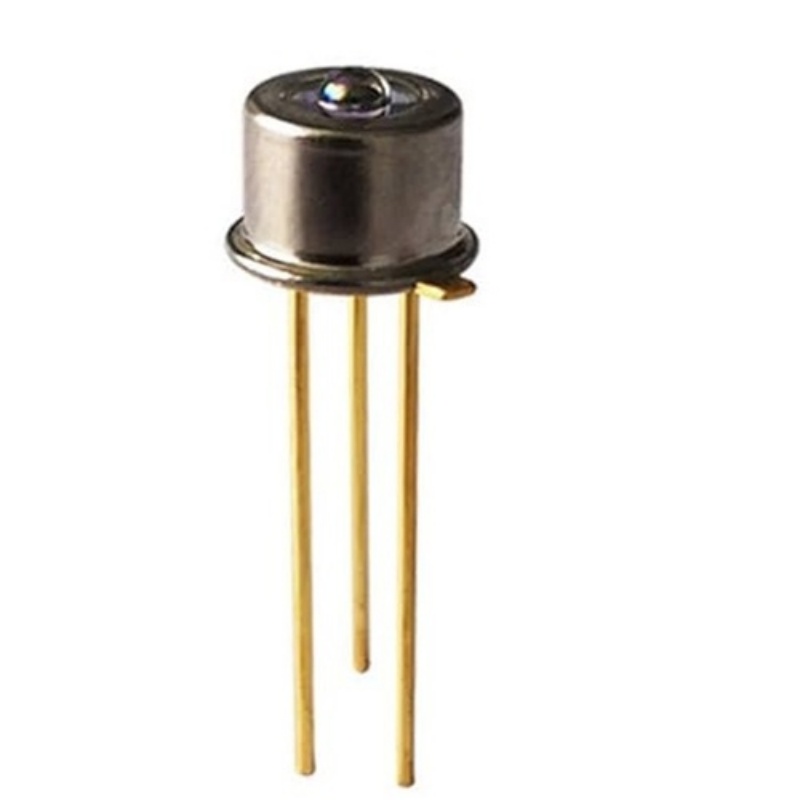

package:Hermetic package TO46 Can or with receptacle or fiber coupling
Soldering temperature(time):260℃
Operating temperature:-40～+85℃
Storage temperature:-40～+100℃

Features:
Low noise, High reliability
800-2200nm wide wavelength range
Active diameter 0.5mm
Hermetic package TO46 Can or with receptacle or fiber coupling

Applications
Gas Analyzer
Environment measurement
Optical sensor, Temperature sensing
Covert IR sensing, Spectrography
Medical and Chemical analysis
Optical power meter, Space light detect equipment

LSIPD22-0.5 2200nm 0.5mm InGaAs PIN Photodiode 800-2200nm
