Home Photodetectors 400-1100nm avalanche fiber photodetector LSSPD-0.2 0.2mm silicon high speed photodetector photodiode
LSGSPD-UL0.25 0.25mm Visible Light PIN photodiode 500-880nm Visible Light Photodetector Light $69.00 – $79.00
Back to products
LSSPD-0.5 400-1100nm 0.5mm Fast Silicon PIN photodiode photodetector $59.00 – $69.00

LSSPD-0.2 0.2mm silicon high speed photodetector photodiode

$59.00 – $69.00

Clear
Compare
Add to wishlist
SKU: N/A Categories: 400-1100nm avalanche fiber photodetector, 400-1100nm avalanche photodetector
Share:
  • Description
  • Additional information
  • Reviews (0)
Description

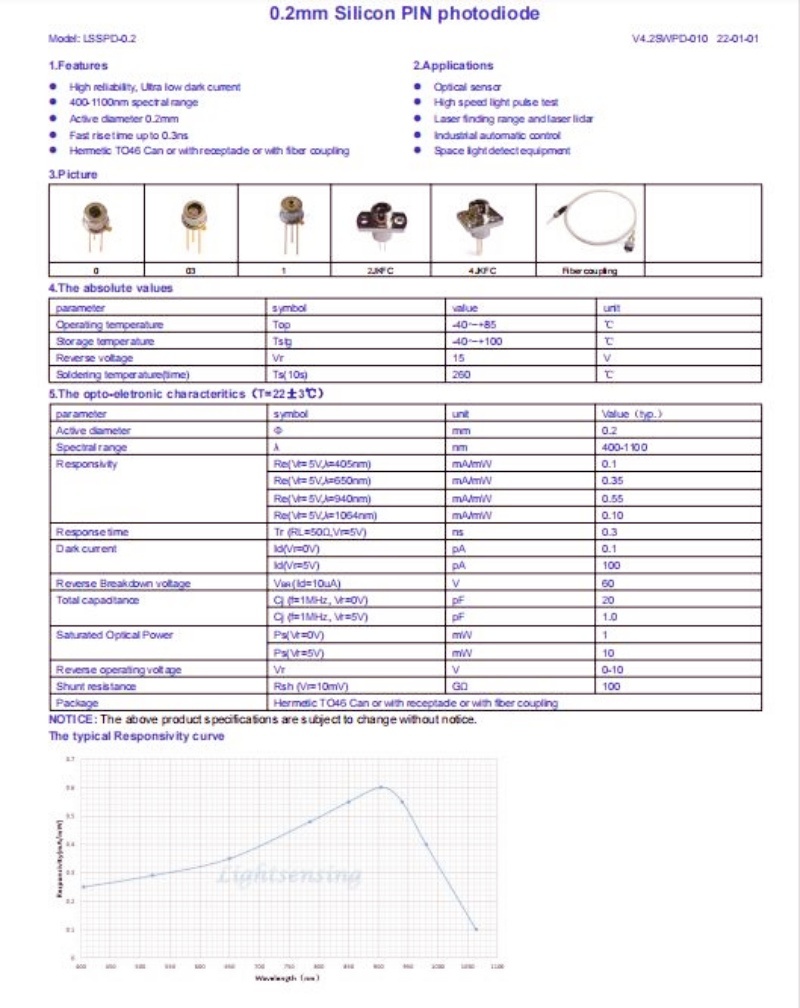

LSSPD-0.2 0.2mm silicon high speed photodetector photodiode

parameter

Model: LSSPD-0.2
Wavelength:400-1100nm
Active diameter:0.2×0.2mm
Saturated Optical Power:10mW
Forward current:20mA
Reverse voltage:15V
Reverse Breakdown voltage:60V
package:TO46 Can or Mini Can with receptacle or with

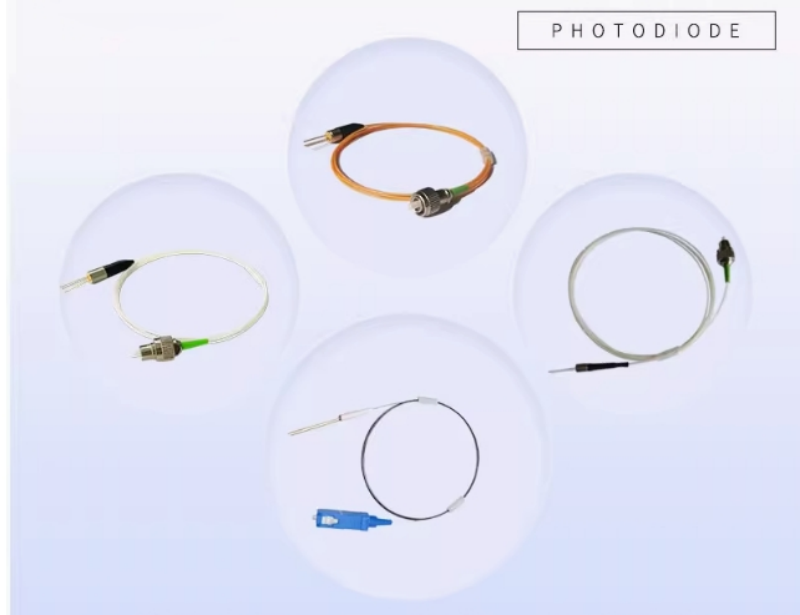

fiber coupling
Soldering temperature(time):260℃
Operating temperature:-40~+85℃
Storage temperature:-40~+100℃

1.Features
High reliability, Ultra low dark current
400-1100nm spectral range
Active diameter 0.2mm
Fast rise time up to 0.3ns

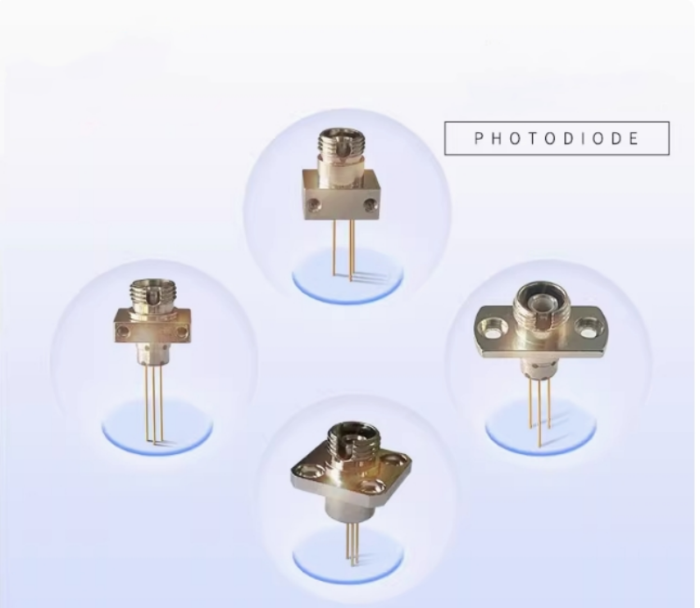

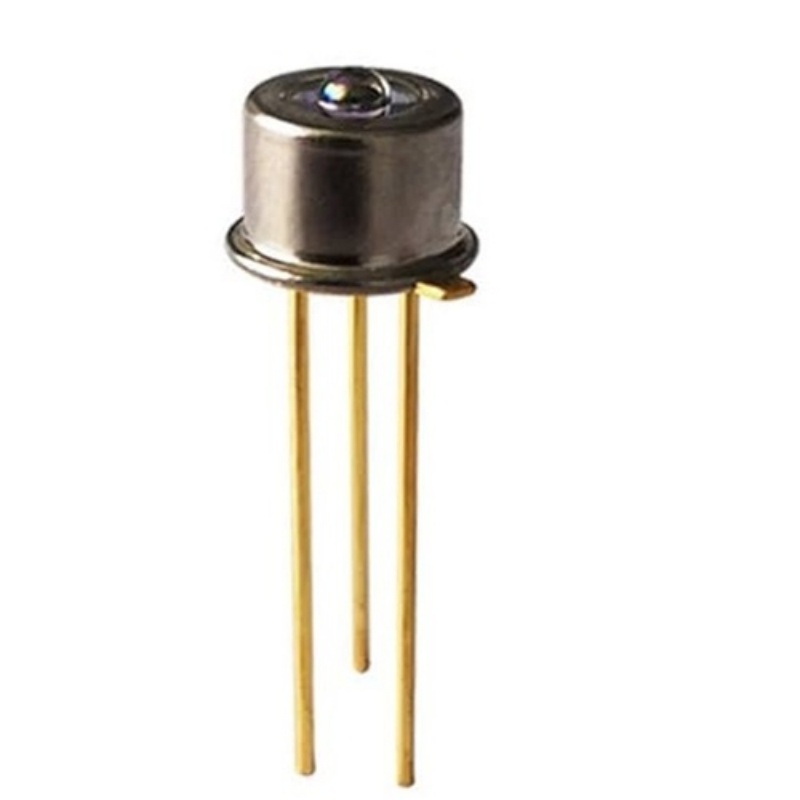

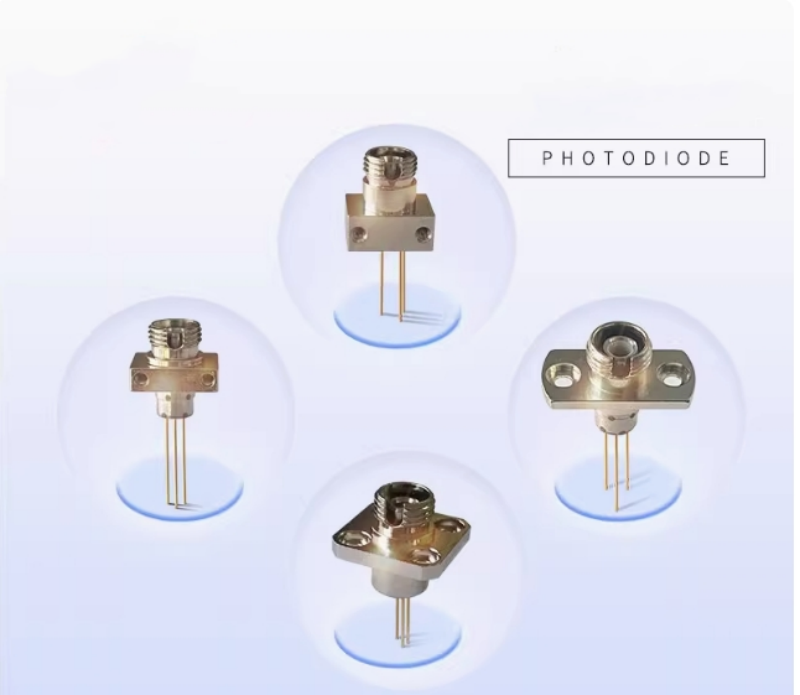

Hermetic TO46 Can or with receptacle or with fiber coupling

2.Applications
Optical sensor
High speed light pulse test
Laser finding range and laser lidar
Industrial automatic control
Space light detect equipment

LSSPD-0.2 0.2mm silicon high speed photodetector photodiode

LSSPD-0.2 0.2mm silicon high speed photodetector photodiode



LSSPD-0.2 0.2mm silicon high speed photodetector photodiode

LSSPD-0.2 0.2mm silicon high speed photodetector photodiode

LSSPD-0.2 0.2mm silicon high speed photodetector photodiode

LSSPD-0.2 0.2mm silicon high speed photodetector photodiode_unlocked_





Additional information
Size

TO46 package, Fiber coupling, other package
