LSSPD-0.5 400-1100nm 0.5mm Fast Silicon PIN photodiode photodetector

LSSPD-0.5 400-1100nm 0.5mm Fast Silicon PIN photodiode photodetector

parameter

Model: LSSPD-0.5
Wavelength：400-1100nm
Active diameter：0.5×0.5mm
Saturated Optical Power：7mW
Forward current:5mA
Reverse voltage：30V
Reverse Breakdown voltage:120V

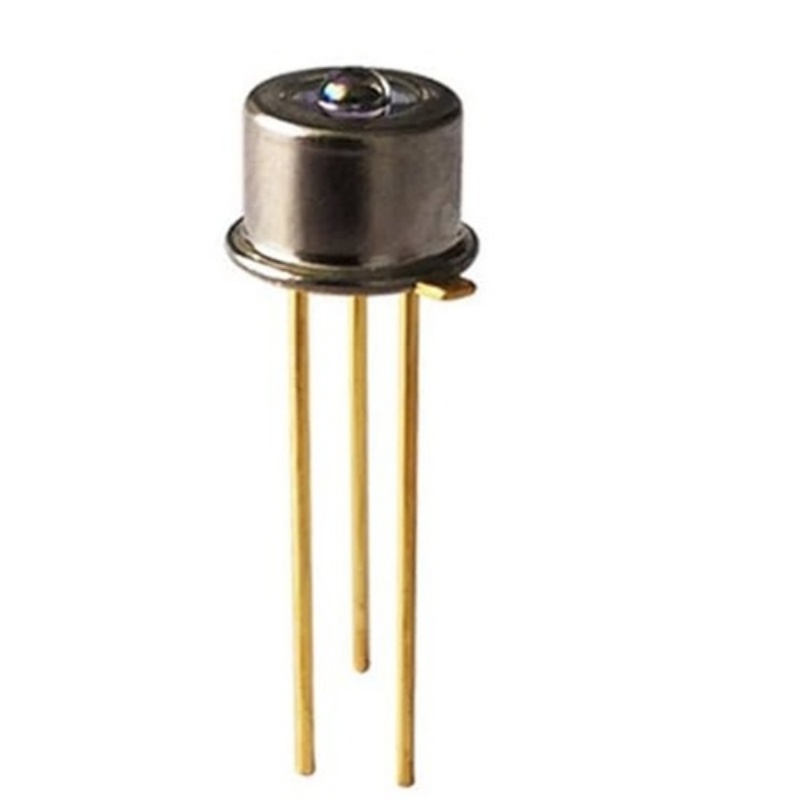

package:TO46 Can or Mini Can with receptacle or with
fiber coupling
Soldering temperature(time):260℃
Operating temperature:-40～+85℃
Storage temperature:-40～+100℃

1.Features
High reliability, Ultra low dark current
400-1100nm spectral range
Active diameter 0.5×0.5mm
Very fast rise time up to 250ps
Hermetic TO46 Can or with receptacle
or with fiber coupling

2.Applications
Optical sensor
High speed light pulse test
Laser finding range and laser lidar
Industrial automatic control
Space light detect equipment
