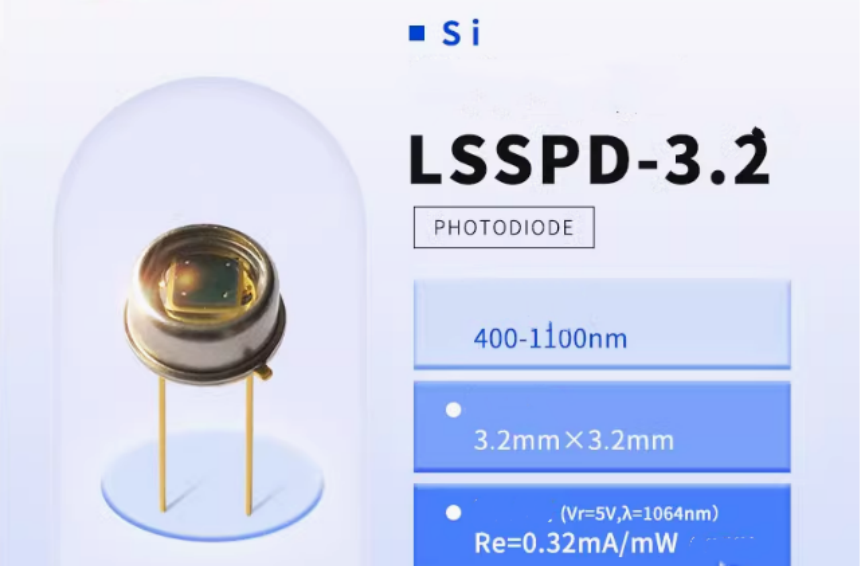

LSSPD-3.2 400-1100nm 3.2mm Silicon PIN photodiode photodetector

LSSPD-3.2 400-1100nm 3.2mm Silicon PIN photodiode photodetector

parameter

Model: LSSPD-3.2
Wavelength：400-1100nm
Active diameter：3.2 ×3.2 mm
Saturated Optical Power：25mW
Forward current:16mA
Reverse voltage：20V
Reverse Breakdown voltage:60V

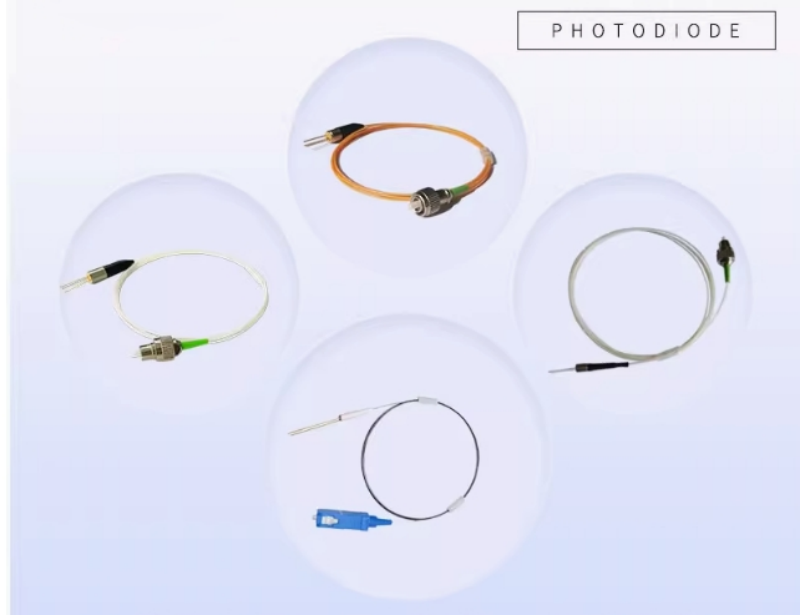

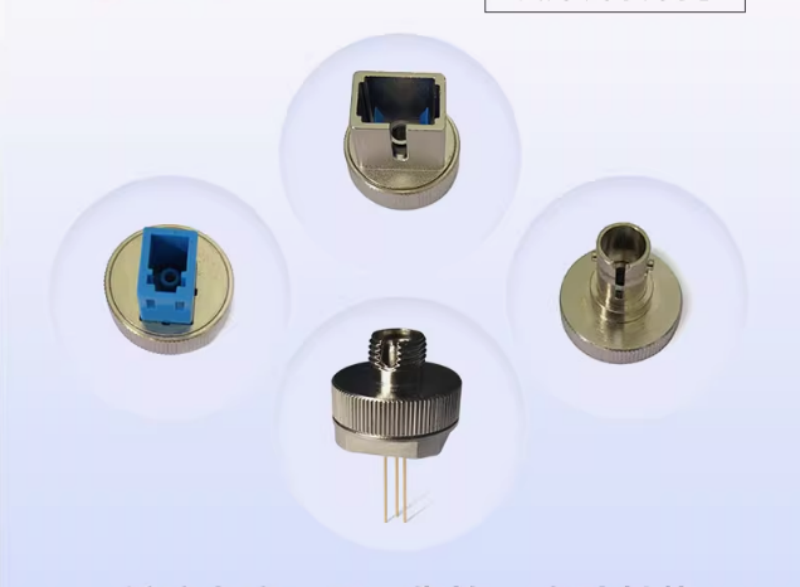

package:Hermetic TO5 Can or with receptacle
Soldering temperature(time):260℃
Operating temperature:-40～+85℃
Storage temperature:-40～+100℃

1.Features
High reliability, low dark current
400-1100nm spectral range
1064nm responsivity up to 0.32mA/mW
Active diameter 3.2×3.2mm
Hermetic TO5 Can or with receptacle

2.Applications
Optical sensor and Optical power meter
Industrial automatic control
IR/ Laser light Monitoring
Fluorescence detector
Medical equipment
Spectrophotometry/CT scan

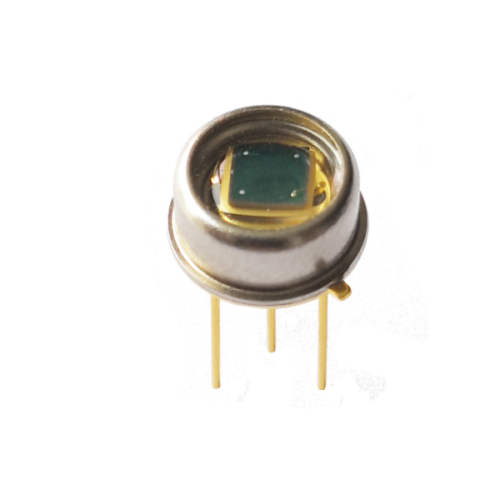

LSSPD-3.2 3.2mm Silicon PIN photodiode
