Home Photodetectors 400-1100nm silicon photodetector LSSPD-6-2P-0 400-1100nm 6mm Silicon PIN photodiode photodetector
LSSPD-4.2 400-1100nm 4.2mm Silicon PIN photodiode photodetector $59.00 – $79.00
Back to products
LSSPD-6 400-1100nm 6mm Si PIN Photodiode photodetector with Ceramic package $79.00 – $86.00

LSSPD-6-2P-0 400-1100nm 6mm Silicon PIN photodiode photodetector

$79.00

Clear
Compare
Add to wishlist
SKU: N/A Category: 400-1100nm silicon photodetector
Share:
  • Description
  • Additional information
  • Reviews (0)
Description

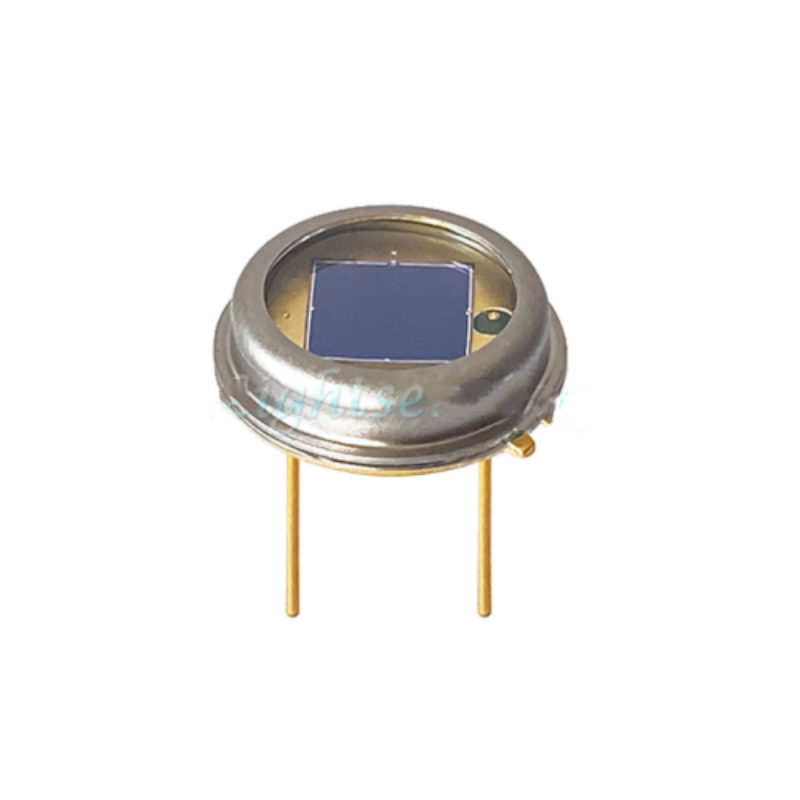

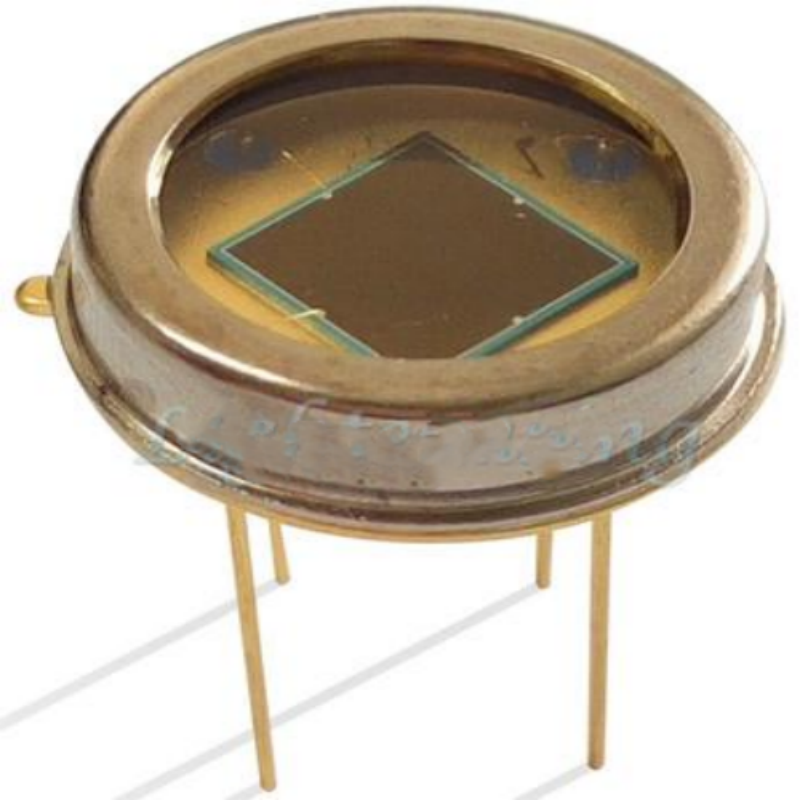

LSSPD-6-2P-0 400-1100nm 6mm Silicon PIN photodiode photodetector

parameter

Model: LSSPD-6-2P-0
Wavelength:400-1100nm
Active diameter:6 ×6mm
Saturated Optical Power:25mW
Forward current:13mA
Reverse voltage:15V
Reverse Breakdown voltage:60V
package:Hermetic TO6 or TO8 Can package
Soldering temperature(time):260℃
Operating temperature:-40~+85℃
Storage temperature:-40~+100℃

Features:
High reliability, Ultra low dark current
400-1100nm spectral range
Active diameter 6x6mm
Hermetic TO6 or TO8 Can package

Applications:
Optical sensor and Optical power meter
Industrial automatic control
IR/ Laser light Monitoring
Fluorescence detector  Medical equipment

LSSPD-6-2P-0 400-1100nm 6mm Silicon PIN photodiode photodetector

LSSPD-6-2P-0 400-1100nm 6mm Silicon PIN photodiode photodetector

LSSPD-6-2P-0 400-1100nm 6mm Silicon PIN photodiode photodetector_unlocked



Additional information
Size

TO6, TO8
