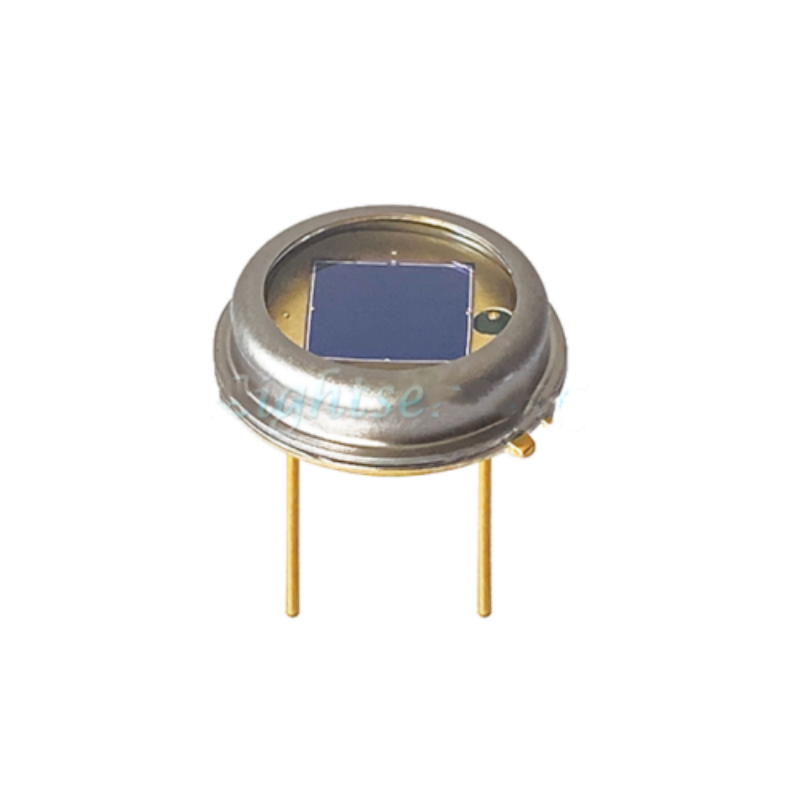

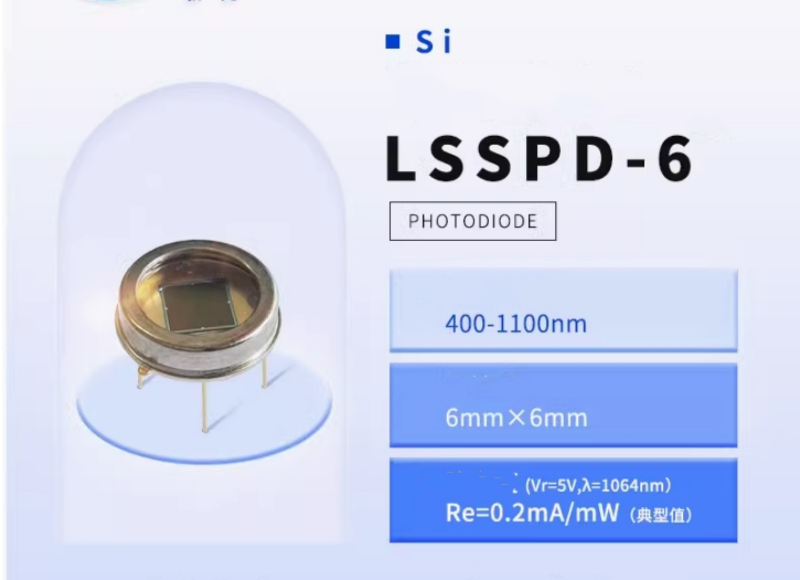

LSSPD-6 400-1100nm 6mm Si PIN Photodiode photodetector with Ceramic package
parameter
Model: LSSPD-6
Wavelength:400-1100nm
Active diameter:6 ×6mm
Saturated Optical Power:30mW
Forward current:18mA
Reverse voltage:20V
Reverse Breakdown voltage:60V

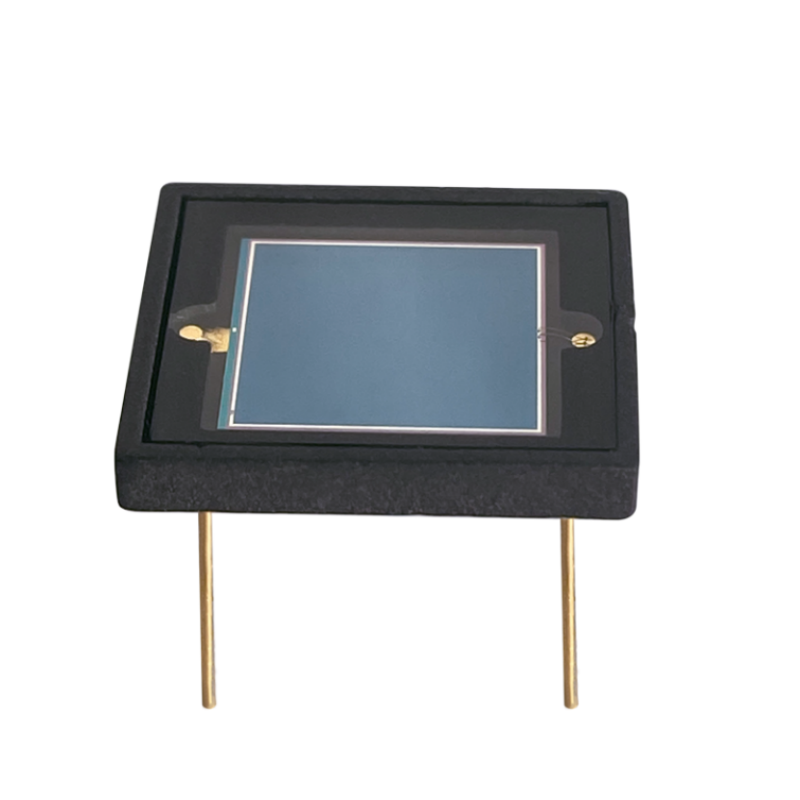

package:TO6,TO8 ,non-hermetic Ceramic package with epoxy resin
Soldering temperature(time):260℃
Operating temperature:-20~+60℃
Storage temperature:-25~+85℃
Features:
High reliability, low dark current
400-1100nm spectral range
Active diameter 6x6mm
TO6,TO8,non-hermetic Ceramic package with epoxy resin
Applications:
Optical sensor
Optical measurement equipment
Industrial automatic control
IR/ Laser light Monitoring
Fluorescence detector
Medical equipment
Spectrophotometry/CT scan
LSSPD-6 400-1100nm 6mm Si PIN Photodiode photodetector with Ceramic package
