LSSPD-U3.2 Silicon PIN photodiode 3.2mm 200-1100nm UV Extended Silicon Photodiode Photodetector

LSSPD-U3.2 Silicon PIN photodiode 3.2mm 200-1100nm UV Extended Silicon Photodiode Photodetector

parameter

Model: LSSPD-U3.2
Wavelength：200-1100nm
Active diameter：3.2×3.2mm
Saturated Optical Power：25mW
Forward current:16mA
Operating voltage：0-15V
Reverse voltage:20V
package:TO5
Soldering temperature(time):260℃
Operating temperature:-40～+85℃
Storage temperature:-40～+100℃

Features:
High reliability, low dark current
200-1100nm spectral range
Active diameter 3.2×3.2mm

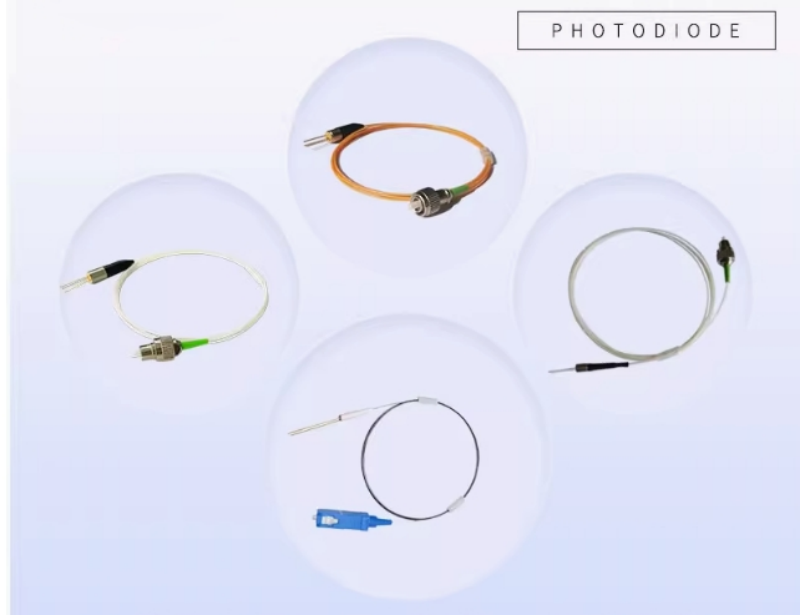

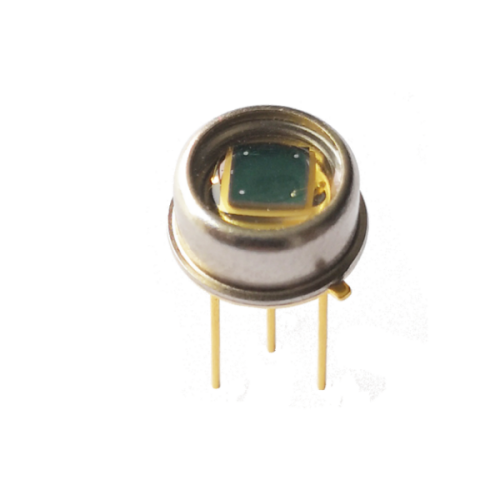

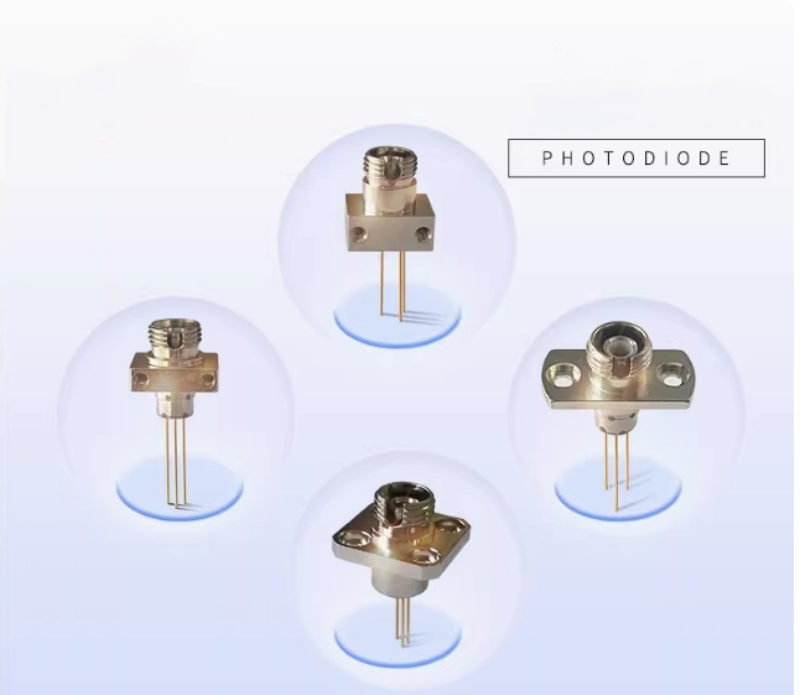

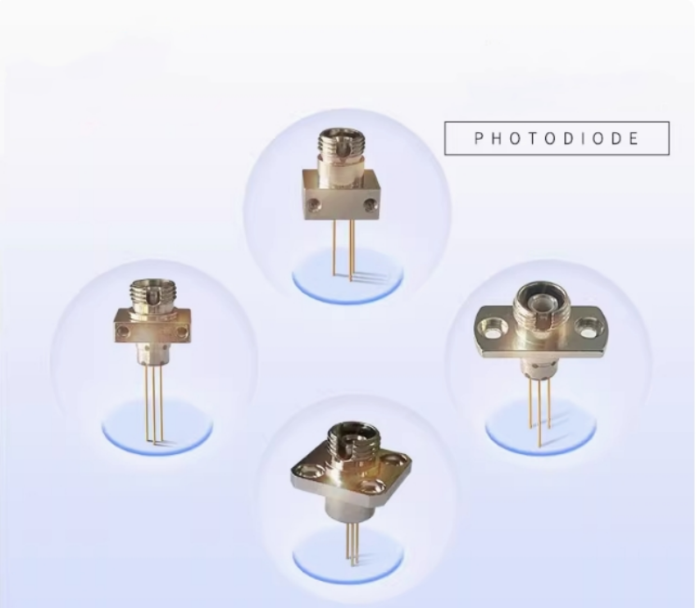

Hermetic TO5 Can with UV window or with receptacle

Applications:
Optical sensor
Optical power meter
Industrial automatic control
Science analysis and experiment
Space light detect equipment
Response spectrum testing

LSSPD-U3.2 Silicon PIN photodiode 3.2mm UV Extended Silicon Photodiode Photodetector
