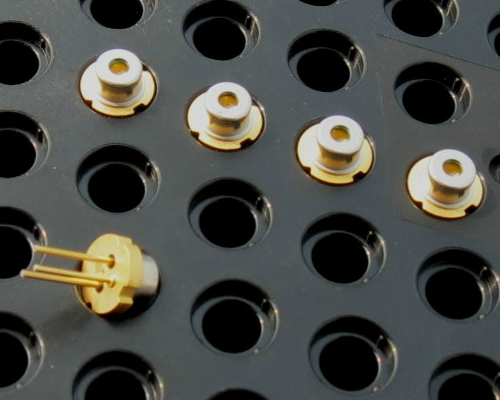

Nichia 488nm Laser Diode 60mW Semiconductor Laser Sky Blue
Output Power: 60mW (CW)
Efficient Quantum Well Structure
Standard TO-18 Package

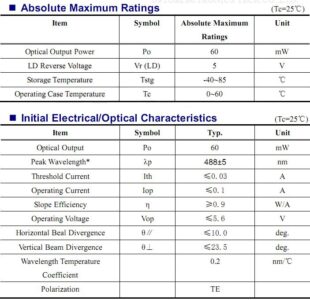

Absolute Maximum Ratings:
Optical Output Power:60 mW
LD Reverse Voltage:5V
Storage Temperature:-40~85
Operating Case Temperature:0~60
Initial Electrical/Optical Characteristics:
Optical Output:60 mW
Peak Wavelength:488+-5 nm
Threshold Current:0.03A
Operating Current:0.1A
Slope Efficiency:0.9W/A
Operating Voltage:5.6V
Horizontal Beal Divergence:10.0deg.
Vertical Beam Divergence:3.5deg.
Wavelength Temperature Coefficient:0.2 nm/
Polarization:TE
Measuring specifications.
All figures in this specification are measured by CNI method and may contain measurement deviations.
The above specifications are for reference purpose only and subjected to change without prior notice.
