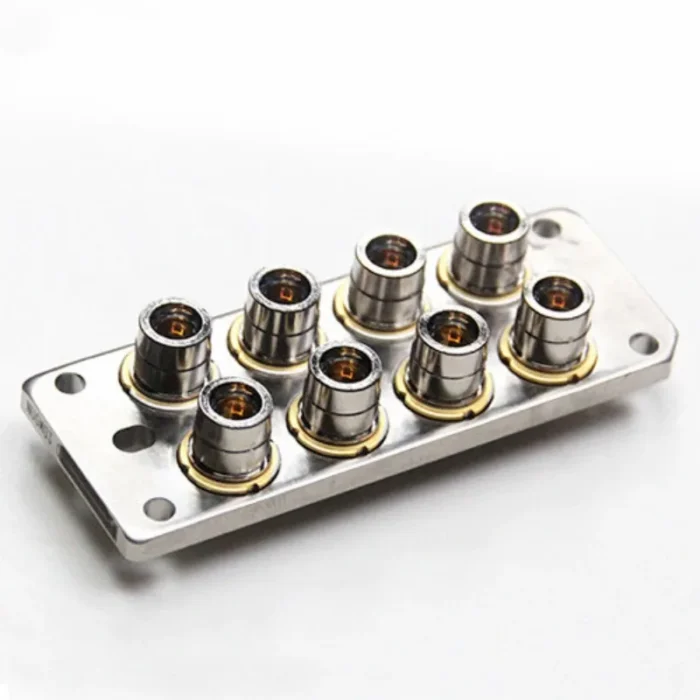

Nichia NUBM0A Blue 450nm 38W High Power Laser Diode Bank 8lds
- Brand Name: Nichia
- Origin: Mainland China
- Place of Origin: Japan
- Condition: New
- Warranty: Unavailable
- Spare Parts Type: no
- Brand Name: Nichia
- Key Selling Points: Long Service Life
- Showroom Location: None
- Applicable Industries: Stage Laser
- Weight (KG): 0.1 KG
- After Warranty Service: Online support
- Local Service Location: None
- Color: Blue
- Dominant Wavelength: 450nm~460nm
- Optical Output Power: 450NM
- Power: 36W
- Foward Current: 3.5A
- Allowable Reverse Current: 85mA
- Operating Temperature: 0-65 Degree
- Collection: 81ds
- Operating Voltage: 30V
- Storage Temperature: -40~85 degree
Specification :Nichia Blue 450nm 30W High Power Laser Diode Bank 8lds
Features:
1.Nichia blue multiple laser diode bank.
2.High power optical output:38W(CW)
3.8PCS LD Nichia Blue 450nm 30W High Power Laser Diode Bank 8lds
Nichia Blue 450nm 38W High Power Laser Diode Bank 8lds
Excellent beam qulity High stability Advanced technology long lifetime
Product Description:Nichia Blue 450nm 30W High Power Laser Diode Bank 8lds
Absolute Maximum Ratings
(TC=25℃)
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | If | 3.5(individual LD) | A |
| Allowable Reverse Current | Ir(LD) | 85(individual LD) | mA |
| Storage temperature | Tstg | -40~85 | °C |
| Operating Case Temperature(case temp.) | Tc | 0~60 | °C |
(Tc=25℃)
Initial Electrical /Optical Characteristics: Nichia Blue 450nm 30W High Power Laser Diode Bank 8lds (TC=25℃)
| Item | Condition | Symbol | Min | Typ. | Max | Unit |
| Optical output power | If=2.5A | Po | – | (38) | – | W |
| Dominant Wavelength | If=2.5A | λd | 450 | (455) | 460 | nm |
| Beam Pointing Tilt Angle | If=2.5A | Δθ | – | – | 0.7 | deg |
| Operating voltage(8LDs series connection) | If=2.5A | Vop | 30 | – | 39 | v |
Packing&Shipping :Nichia Blue 450nm 30W High Power Laser Diode Bank 8lds
a Blue 450nm 30W High Power Laser Diode Bank 8lds
