Sharp GH04V01A2G 405nm 1W fiber-coupled blue violet laser diode $99.00

Sharp GH0406AA2G 405nm 600mW 700mW high power laser diode UV optocoupling laser diode

$69.00 – $299.00

Clear
Compare
Add to wishlist
SKU: 1005006140867721 Categories: ,
Description

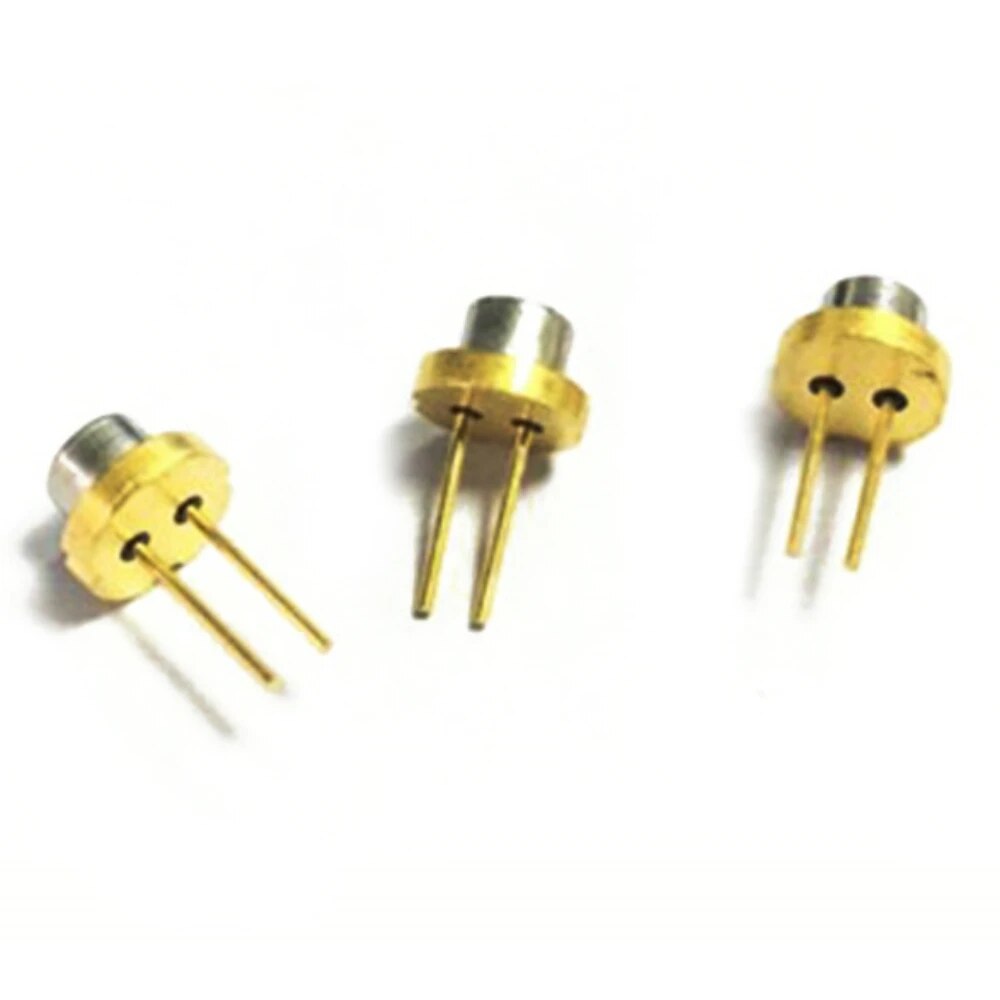

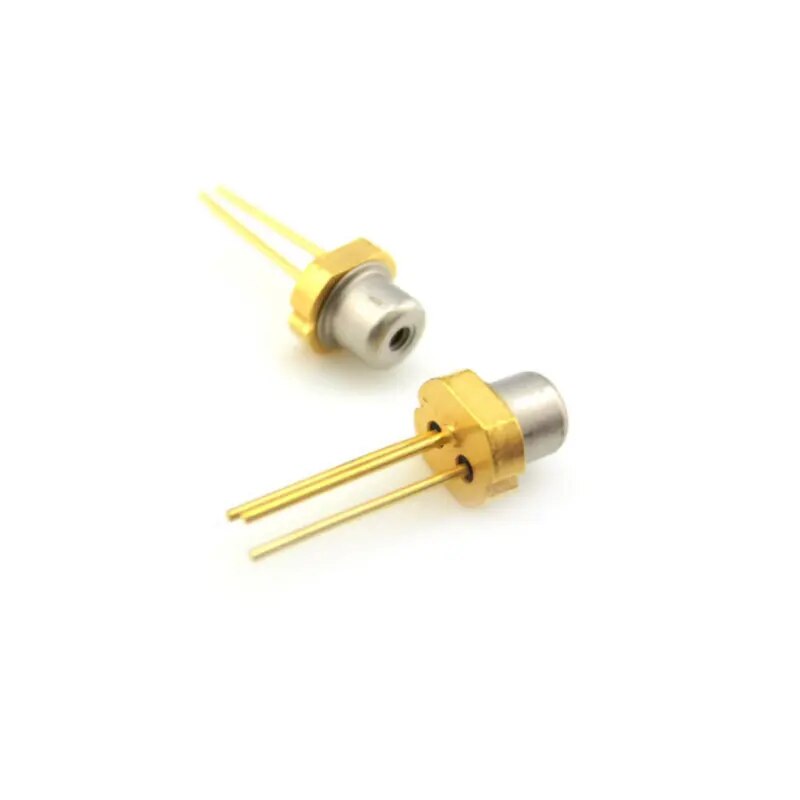

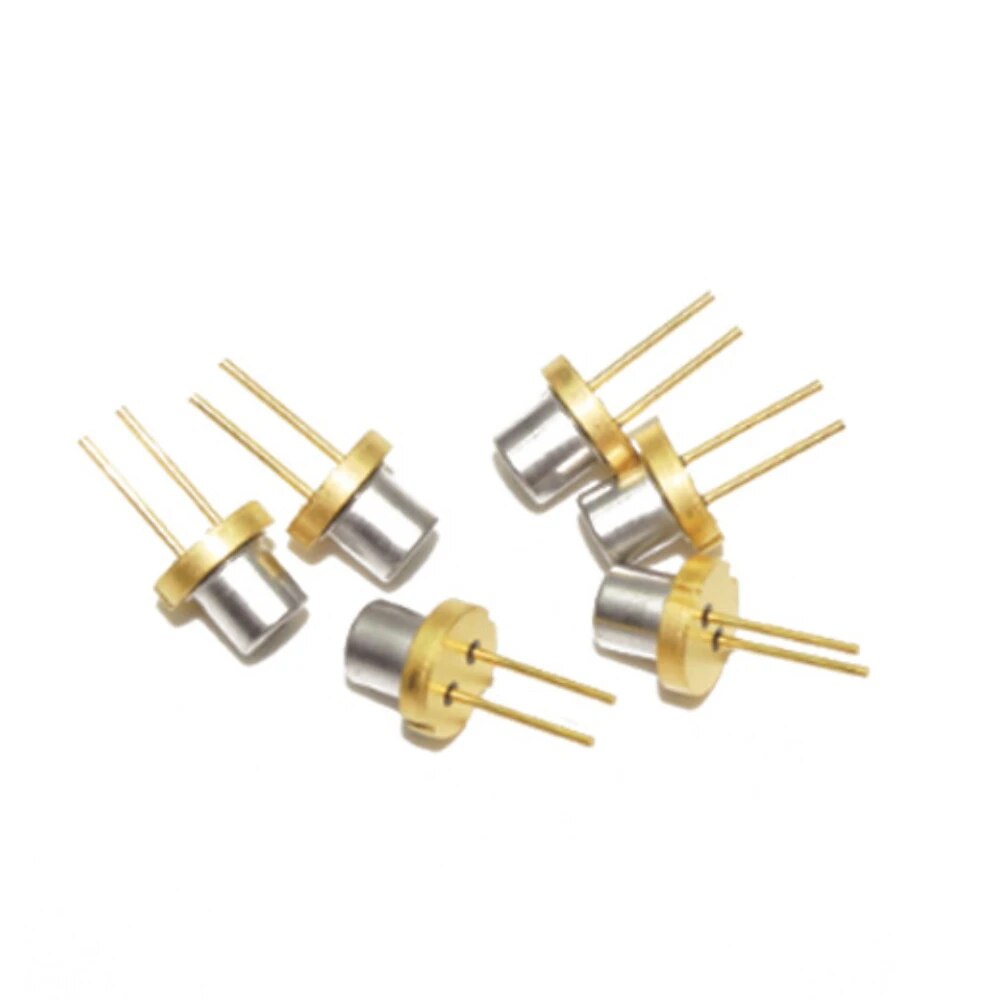

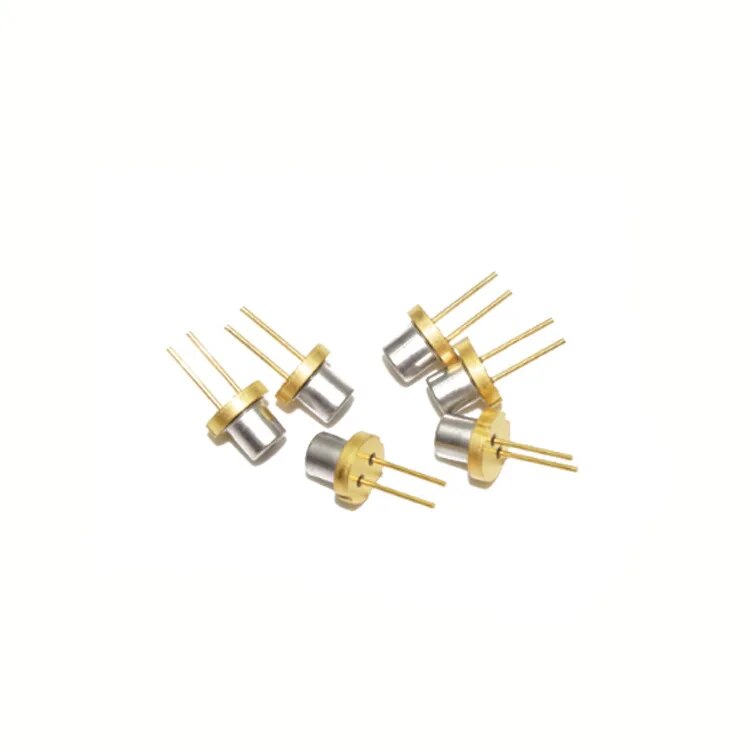

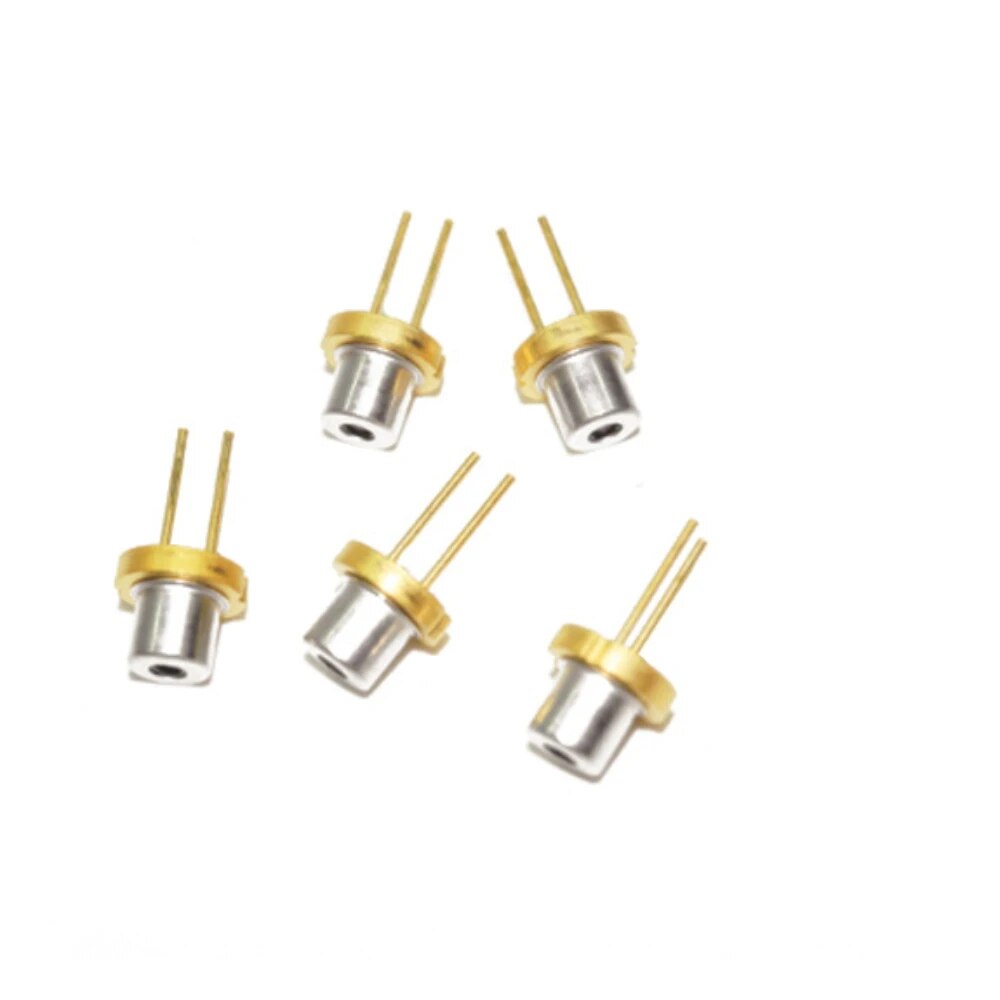

Sharp 405nm 600mW 700mW high power laser diode UV optocoupling laser diode

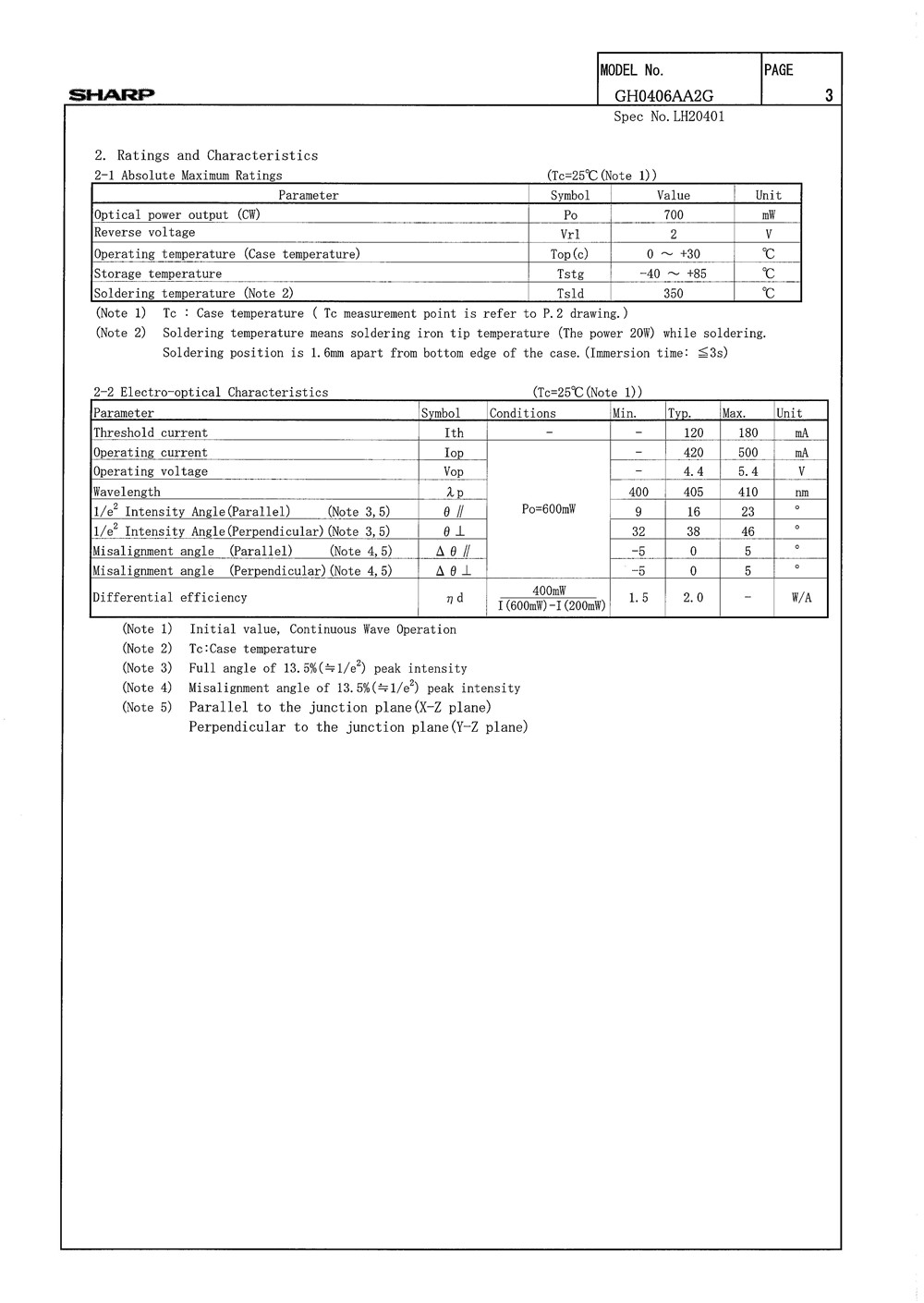

[Specification]

Brand: Sharp
Origin: Japan
Wavelength: 405nm
Model: GH0406AA2G
Output Power:700mW
Operating Current: 500mA
Operating Voltage: 5.4V
Operating Temperature: 0 ~ +30ºC
Storage Temperature:-40-85ºC

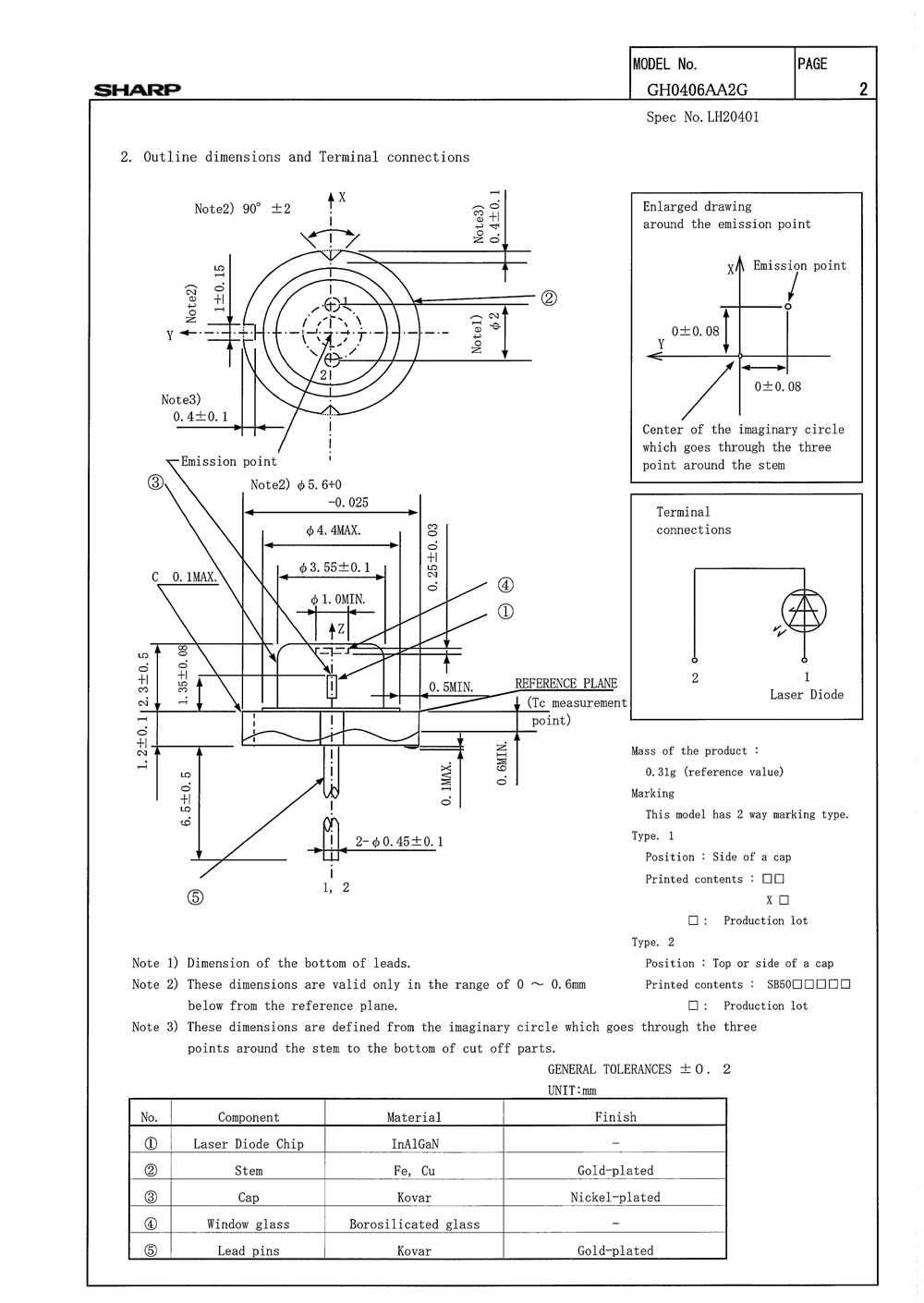

Package Type: TO18 (φ5.6mm)
Working hours:>10000h

Sharp GH0406AA2G 405nm 600mW 700mW high power laser diode UV optocoupling laser diode

Sharp GH0406AA2G 405nm 600mW 700mW high power laser diode UV optocoupling laser diode
