QSI 635nm 15mW QL63G5S-A/B/C Red Laser Diode TO56 5.6mm $8.00 – $49.00
Back to products
QSI 775nm 788nm 800nm 15mW QL78F6DF-1 Dual Wavelength IR Laser Diode TO18 $9.00 – $59.00

QSI 775nm 788nm 800nm10mW QL78E6HG-Q 6-pin 4 wavelength IR laser diode TO9

$19.00 – $159.00

Clear
Compare
Add to wishlist
SKU: N/A Categories: , ,
Description

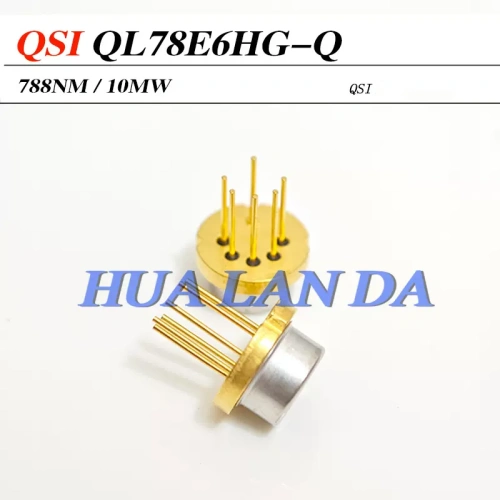

QSI 775nm 788nm 800nm10mW QL78E6HG-Q 6-pin 4 wavelength IR laser diode TO9

[Specification]

Brand: QSI
Model: QL78E6HG-Q
Wavelength: 785nm
Output Power: 10mW
Operating Current: 38mA
Operating Voltage: 2.5V
Operating Temperature: -10 ~ +60ºC
Package Type: TO9

QSI 775nm 788nm 800nm10mW QL78E6HG-Q 6-pin IR laser diode TO9

QSI 775nm 788nm 800nm10mW QL78E6HG-Q 6-pin IR laser diode TO9

QSI 775nm 788nm 800nm10mW QL78E6HG-Q 6-pin IR laser diode TO9

Additional information
color

1pcs, 3pcs, 10pcs
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “QSI 775nm 788nm 800nm10mW QL78E6HG-Q 6-pin 4 wavelength IR laser diode TO9”
