QSI 808nm 200mW QL80R4SC IR laser diode with PD housing negative type P 5.6mm

$15.00 – $119.00

Clear
Compare
Add to wishlist
SKU: N/A Categories: ,
Description

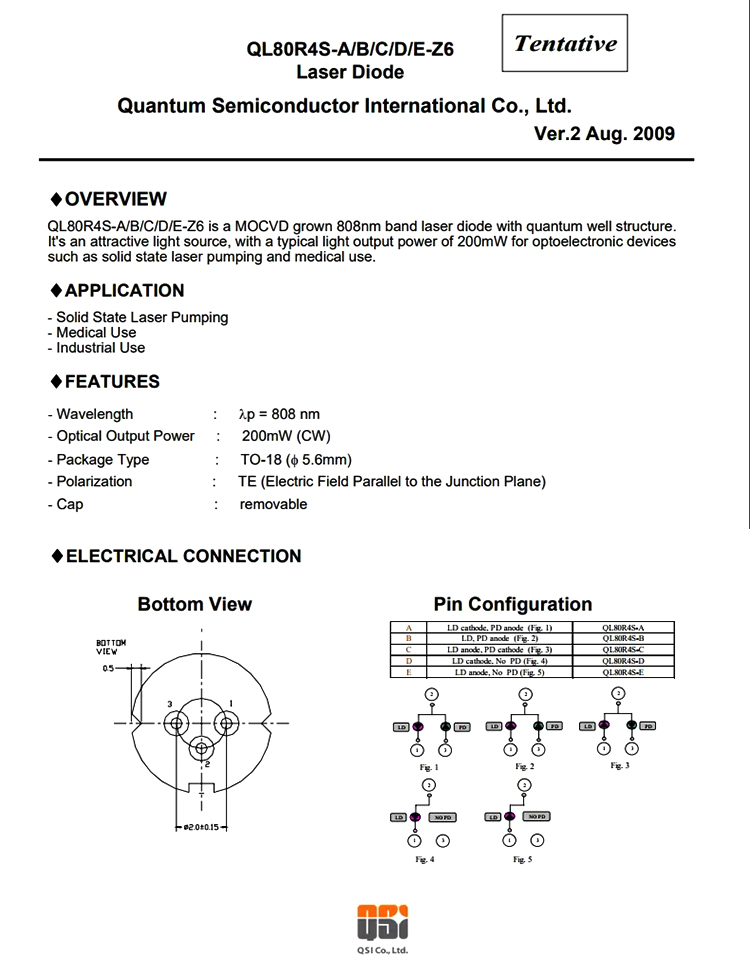

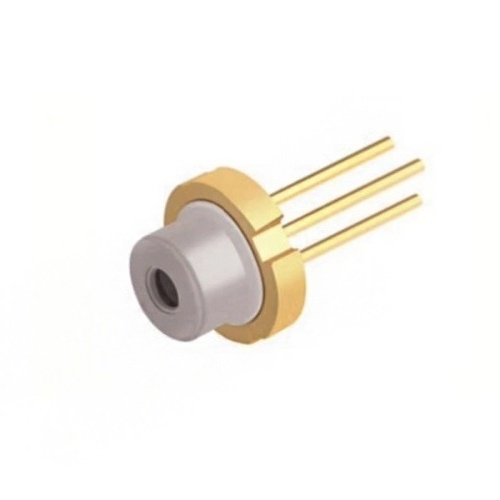

QSI 808nm 200mW QL80R4SC IR laser diode with PD housing negative type P 5.6mm

Brand: QSI
Origin: Korea

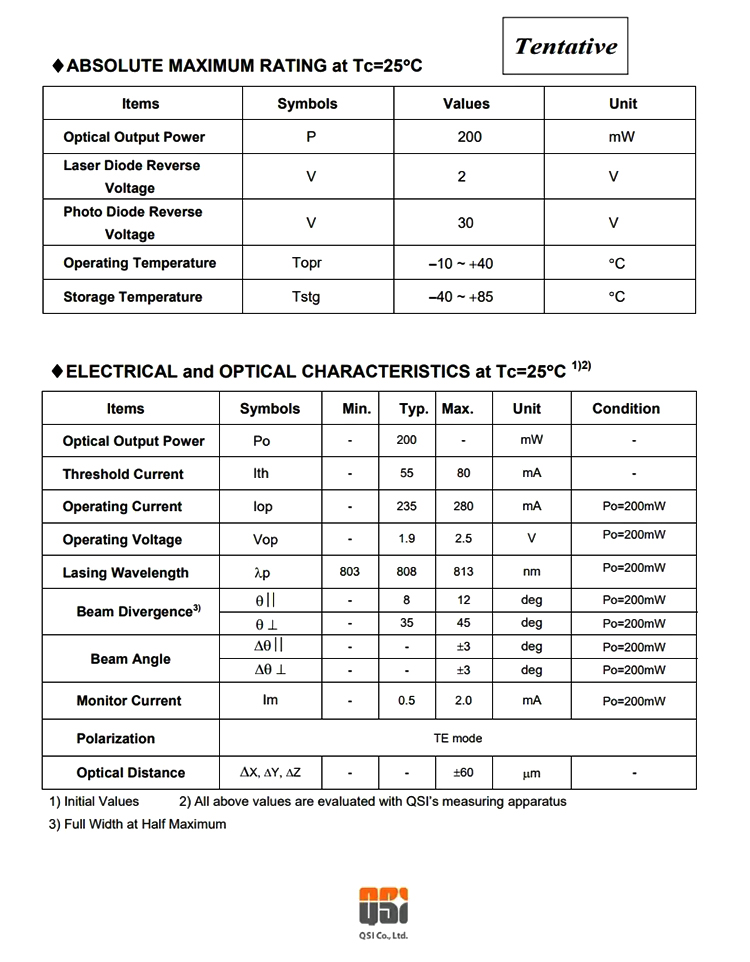

Wavelength: 808nm
Model: QL80R4SC
Output Power:200mW
Operating Current: 235-280mA
Operating Voltage: 1.9-2.5V
Operating Temperature: -10 ~ +40ºC
Storage Temperature:-40 ~ +85ºC

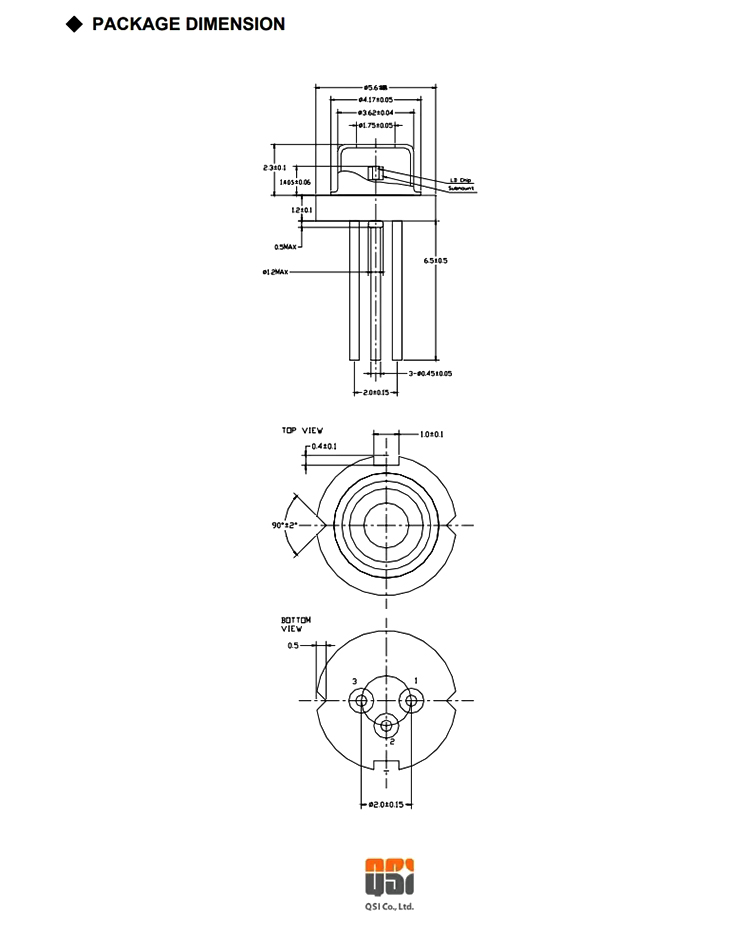

Package Type: TO18 (φ5.6mm)

QSI 808nm 200mW QL80R4SC IR laser diode with PD housing negative type P 5.6mm

QSI 808nm 200mW QL80R4SC IR laser diode with PD housing negative type P 5.6mm

QSI 808nm 200mW QL80R4SC IR laser diode with PD housing negative type P 5.6mm

Additional information
color

1pcs, 5pcs, 10pcs
