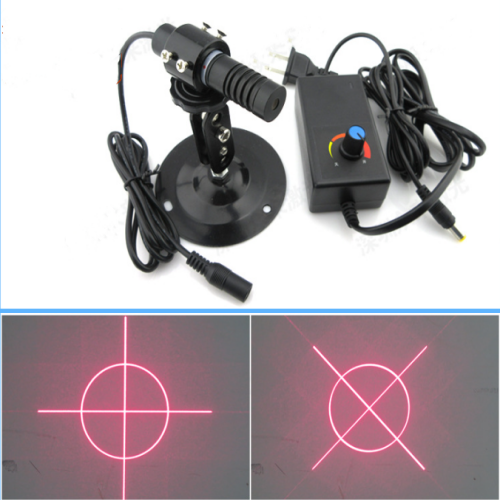

Red green blue special cross circle laser module bullseye laser positioning light, infrared laser module

Red  green blue special cross circle laser module  bullseye laser positioning light, infrared laser module

Operating Voltage: DC 2.8V to 5.2V (customizable)

Operating current: <500mA

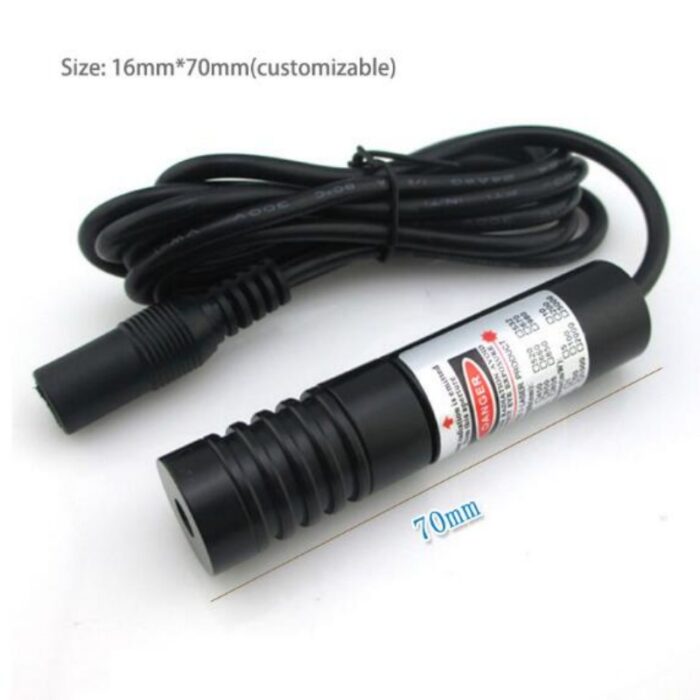

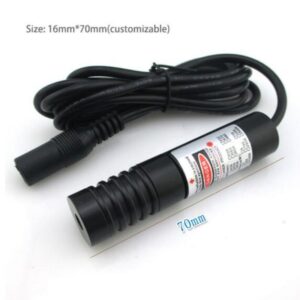

Dimensions: 16*70mm (customizable)

Optical lens: grating sheet (imported from Germany)

Circle angle: 10.5 degrees

Cross angle: 21 degrees

At 50 cm: the length of the cross line is 18.5 cm, and the diameter of the circle is 9.15 cm
At 100 cm: the length of the cross line is 37 cm, and the diameter of the circle is 18.3 cm
At 150 cm: the length of the cross line is 55.5 cm, and the diameter of the circle is 27.45 cm
The wire is thin and uniform, the collimation and stability are very high, and the installation height can be used from 0 meters to 5 meters
1 Ultra-high brightness, both indoor and outdoor

2 The light is clear and bright, and it is soft and not dazzling

3 Adjustable line width to meet your different usage requirements

4. The shell is made of aviation aluminum-plated insulating paint, which can not only fully dissipate heat, but also be shockproof, anti-drop and anti-static

5. The imported laser diode directly emits light and has a particularly high stability and can be turned on 24 hours a day

6 Intelligent driver board with imported IC can supply power in 2.8-5.2V ultra-wide range (other voltages can be customized)

7 High temperature resistant and corrosion-resistant DC plug cable is suitable for all-weather and all-environment use

8. Wavelength, power, wire length, working distance, spot effect, etc. can be customized according to customer requirements, what you want
