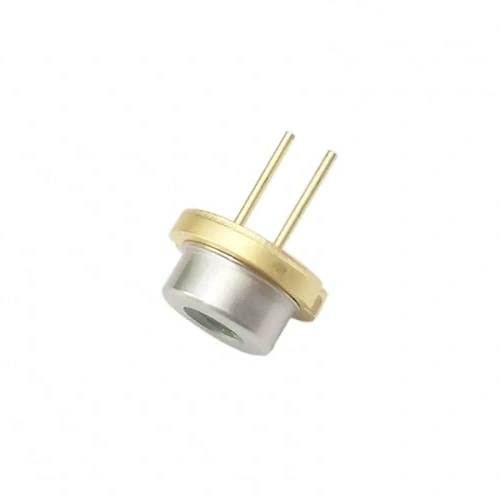

USHIO 638nm 2.2W 2.8W HL63290HD Orange-Red Laser Diode

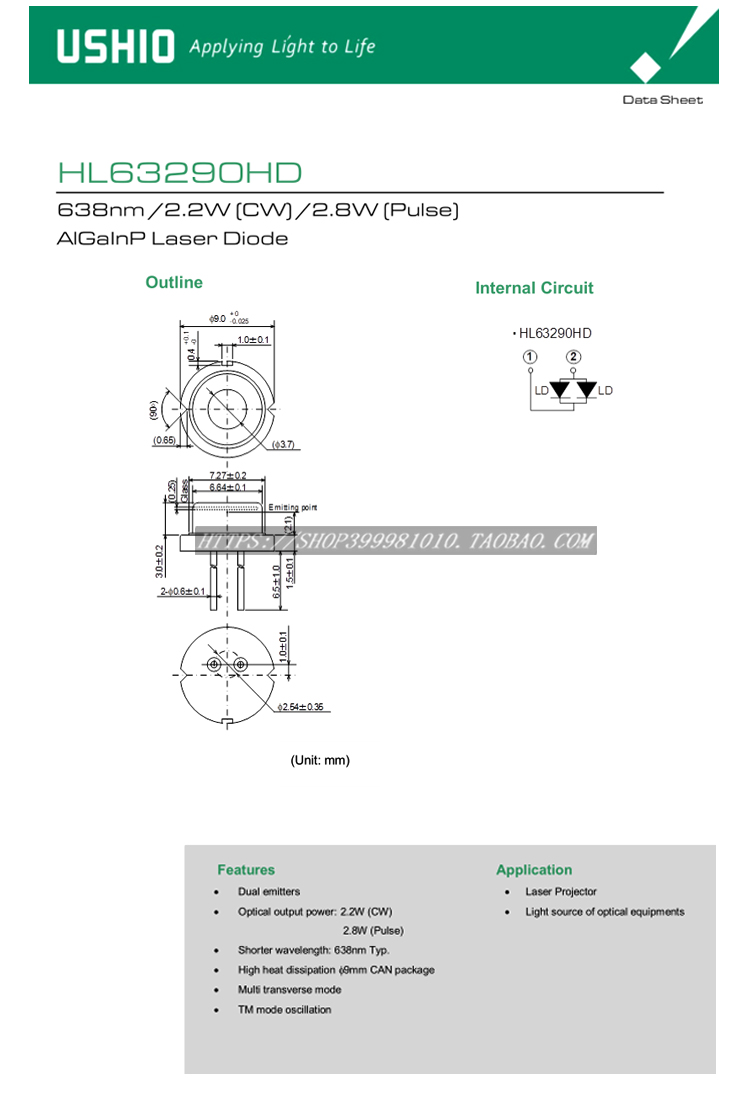

[Specification]

Brand:USHIO
Model: HL63193MG
Wavelength: 638nm
Optical power: 2.2W-2.8w
Operating Current: 750mA
Operating Voltage: 2.4-2.8V
Operating Temperature: -10 ~ +55ºC
Storage Temperature:-40 ~ +85ºC
Dimension: TO5(9mm)

USHIO 638nm 2.2W 2.8W HL63290HD Orange-Red Laser Diode

USHIO 638nm 2.2W 2.8W HL63290HD Orange-Red Laser Diode

USHIO 638nm 2.2W 2.8W HL63290HD Orange-Red Laser Diode
