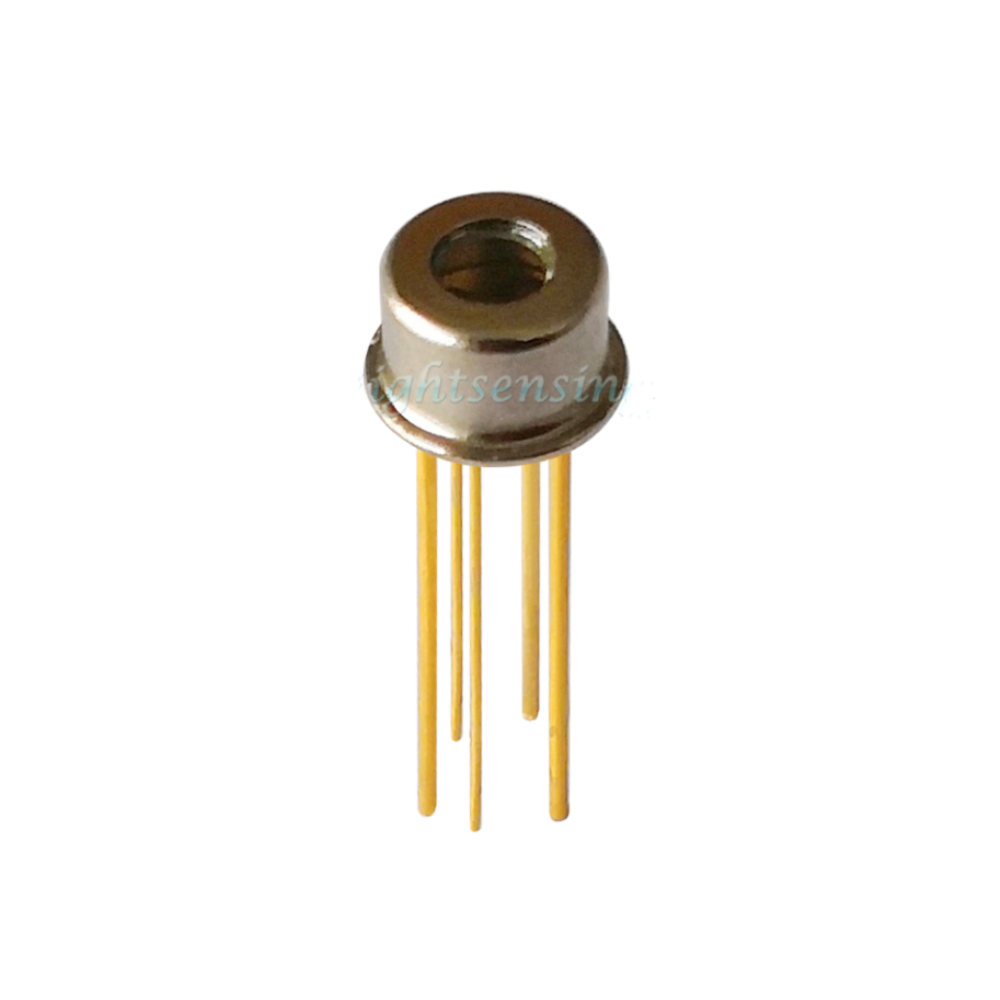

1064nm 15mW FP SM coaxial laser diode

1064nm 15mW FP SM coaxial laser diode

parameter

Model: LSFLD1064-15
Wavelength：1064nm
Output power：15mW.
Reverse voltage:2V
Operating Current:140mA
Operating Voltage:2.3V
Soldering temperature(time):260℃
Operating temperature:-10～+50℃
Storage temperature:-15～+85℃

Features:
MQW F-P LD
Single mode
Built-in monitor PD
Metal can type hermetic
Low threshold/operate current
High reliable

Applications:
Optical Sensing
Industrial automatic control
Science analysis and experiment
Test and Measurement Equipment

LSFLD1064-15 1064nm 15mW FP SM coaxial laser diode
