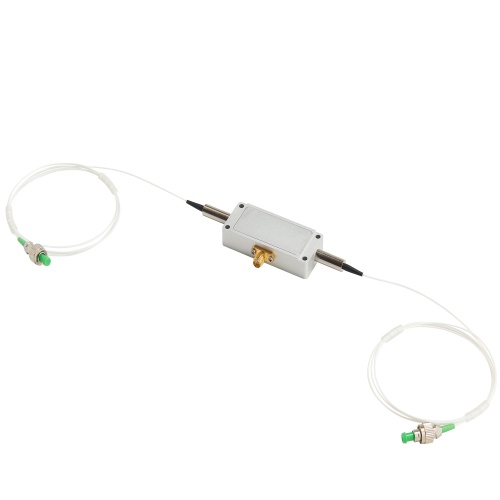

1550nm 150MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)

1550nm 150MHz Polarization-Maintaining Fiber Acousto-Optic Modulator (AOM)

parameter
material :TeO2
wavelength:1550nm
Average optical power :  0.5W
Peak (pulsed) optical power:  0.5kW
Ultrasonic sound velocity : 4200m/s
Insertion loss  :3dB
PER：18dB
Extinction ratio : 50dB
Return loss: 40dB
Rising edge time ：25ns
frequency :150MHz
Frequency shifting : +/-150MHz
Frequency stability: 150+/-0.1%MHz
RF power :4W
Voltage VSWR :1.2:1
Input impedance:  50Ω
Device interface SMA
Fiber type ：PM1550
Fiber length： 1m
Fiber optic interface： FC/APC
Operating temperature ：-20~60℃
Storage temperature ：-30~70℃
