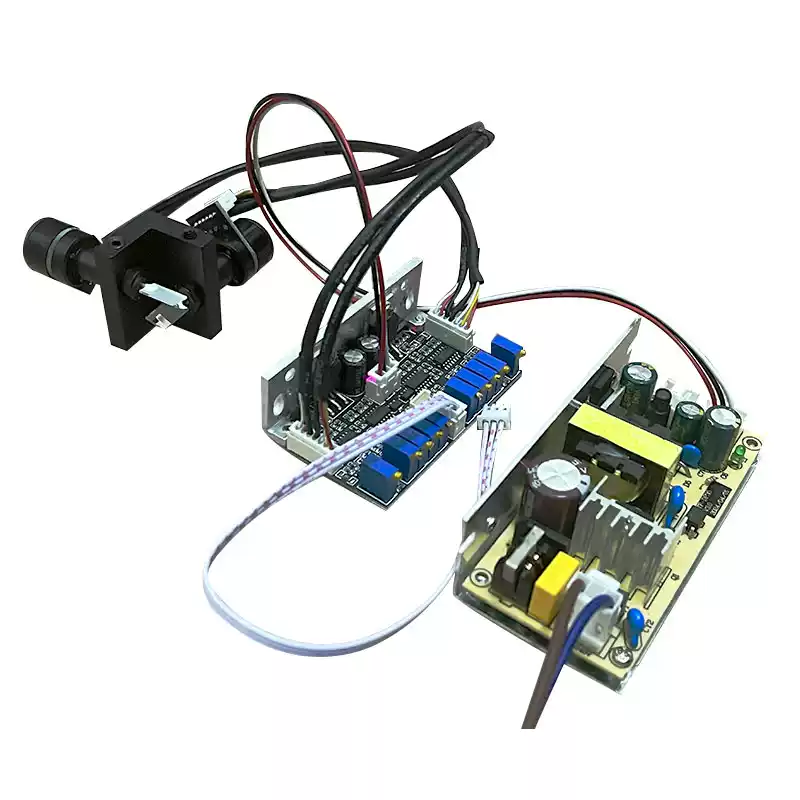

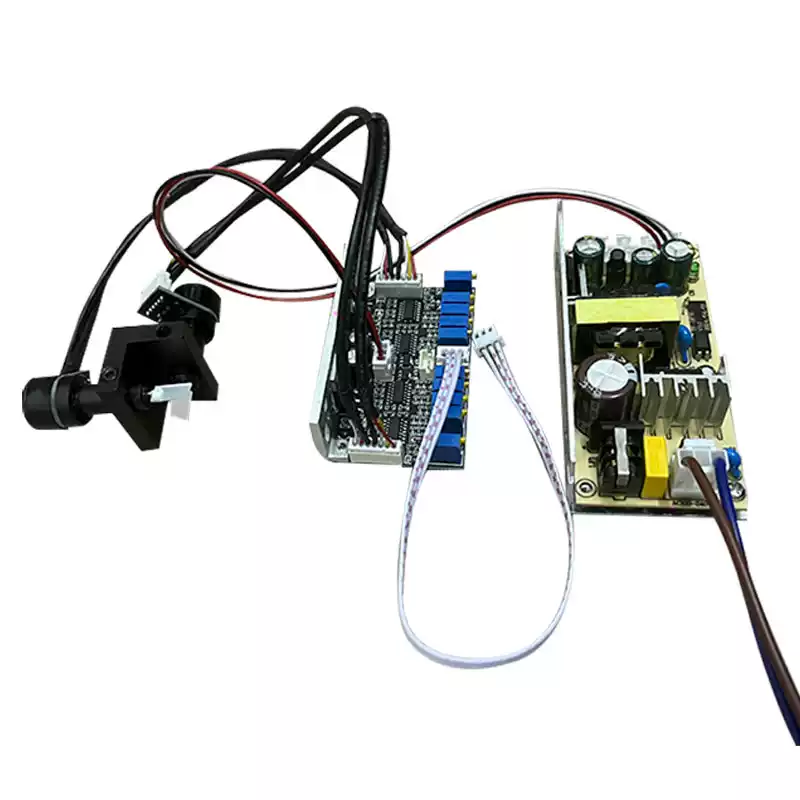

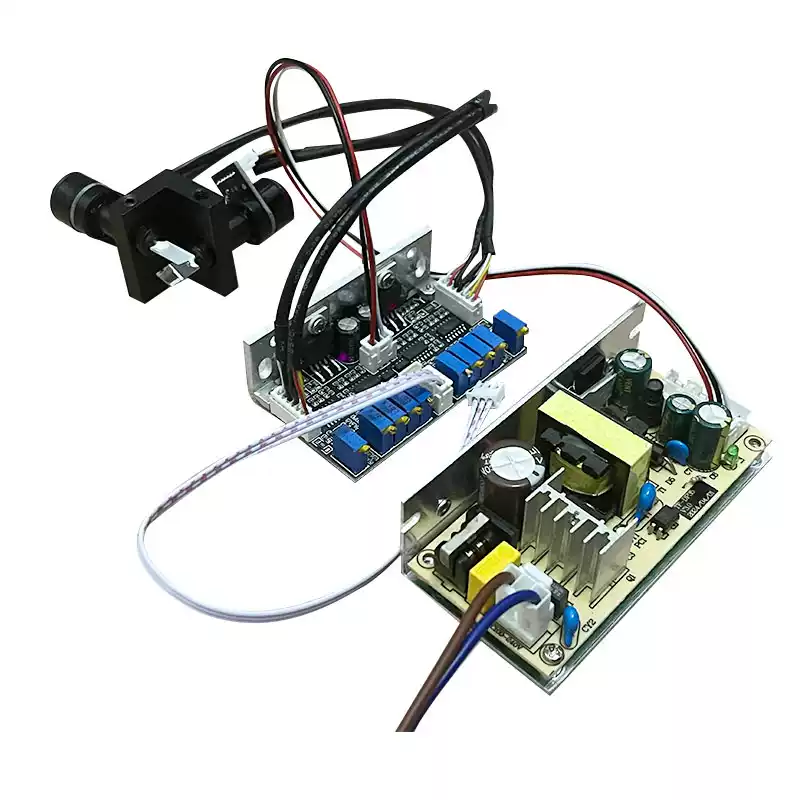

20Kpps Laser Scanning Galvo Stage Animation Galvo

20Kpps Laser Scanning Galvo Stage Animation Galvo

Driver Board Specifications

Power supply voltage: +15V/1.0A, -15V/0.5A (±12V optional)

Analog signal input impedance: 150K±1%Ω (single-ended input)

Analog position input range: ±15 V

Operating temperature: 0~50℃

Scanning angle: Factory default ±20° (±30° optional)

Scanning speed: >20Kpps (30k ILDA standard test chart)

Mirror size: 7mm11mm0.6mm

Mirror reflectivity: >99% @45° incidence (covered wavelength: 380nm-700nm)

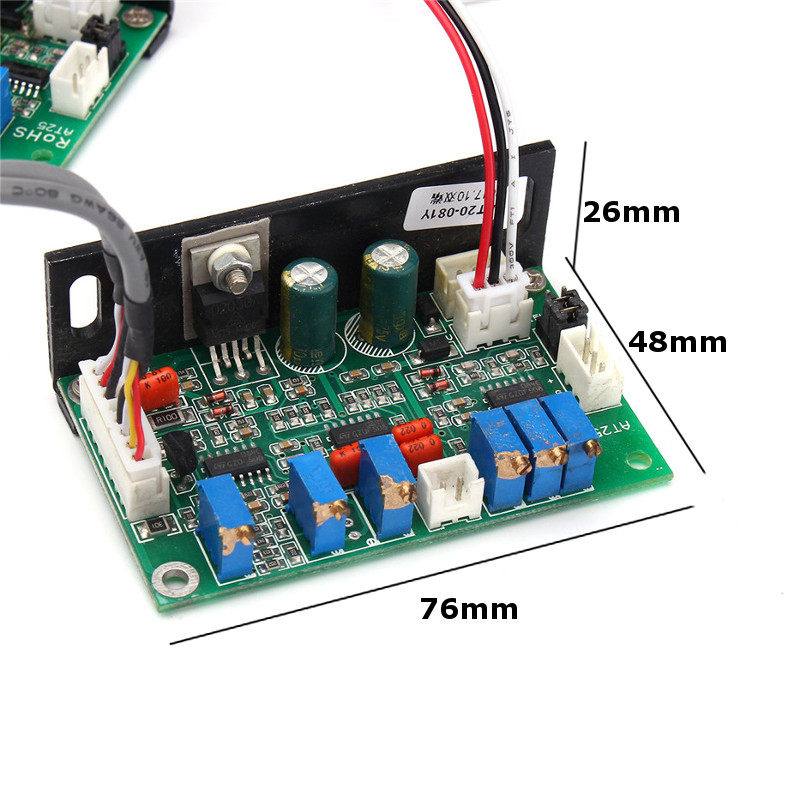

Driver board dimension: 74mm×45mm×25mm
