532nm 50mW 100mW 12V Dot Laser Module

532nm 50mW 100mW 12V Dot Laser Module

Specifications:

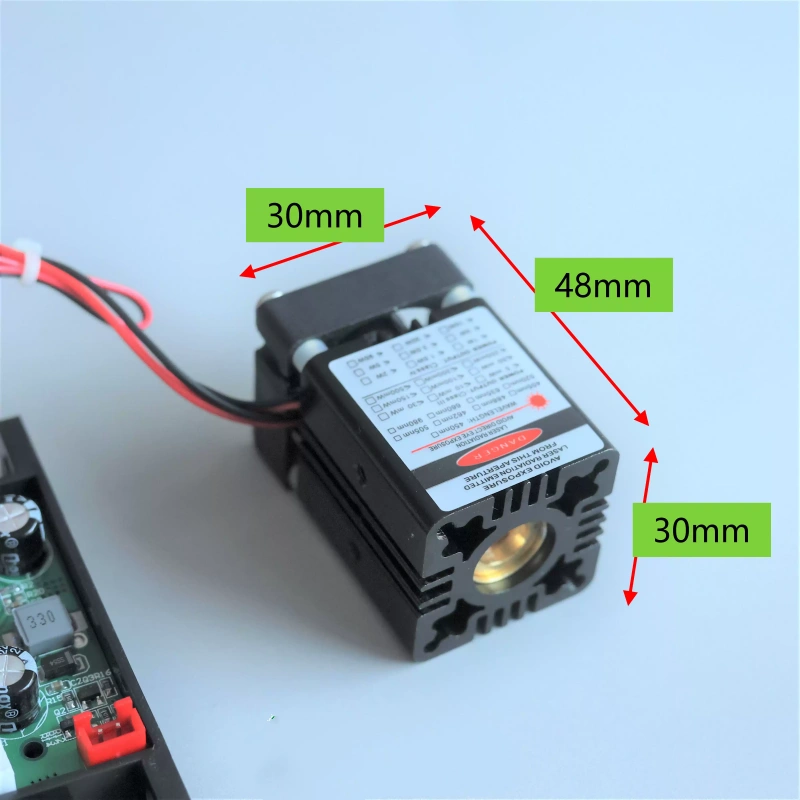

Main unit size: 48mm (L) * 30mm (W) * 30mm (H)
Circuit size: 72mm (L) * 35.5mm (W) * 16mm (H)
Output wavelength: 532nm
Output power: 50mW, 100mW
Cooling method: air cooling
Modulation frequency: 1-20KHz
Operating feature: can work continuously
Surface treatment: black
Housing material: 6063 aviation aluminum
Circuit control: constant current step-down
Reverse connection protection: yes, automatically detects polarity
Operating voltage: DC 12V (10-14V)
Working current: I <0.6A
Warm-up time: none
Operating temperature: -10℃ ~ 50℃
Storage temperature: -40℃ ~ 80℃

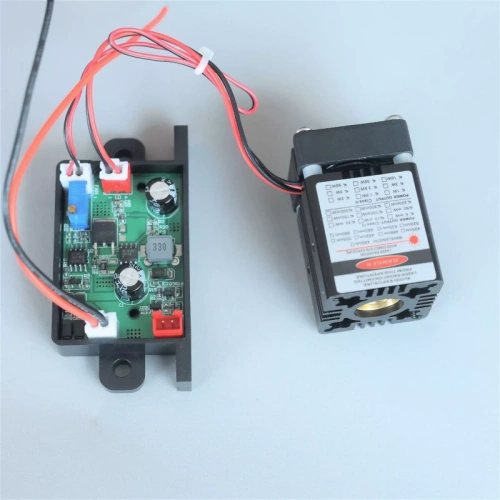

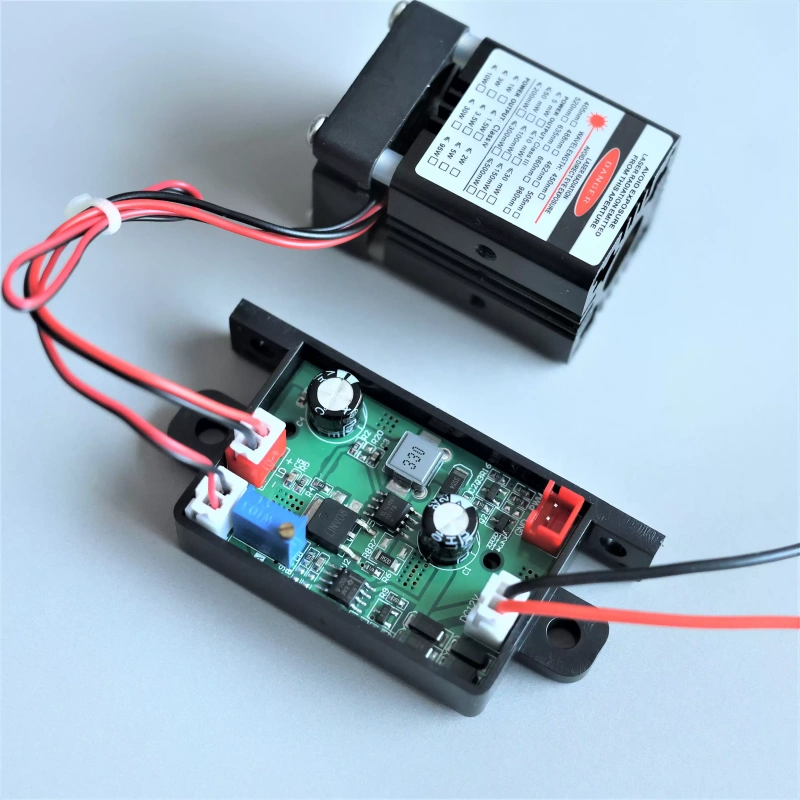

Structural features: laser tube, lens, heat-dissipating housing
Note: power supply is external
Special reminder: Input voltage is 12V; overvoltage may instantly damage the circuit and module
