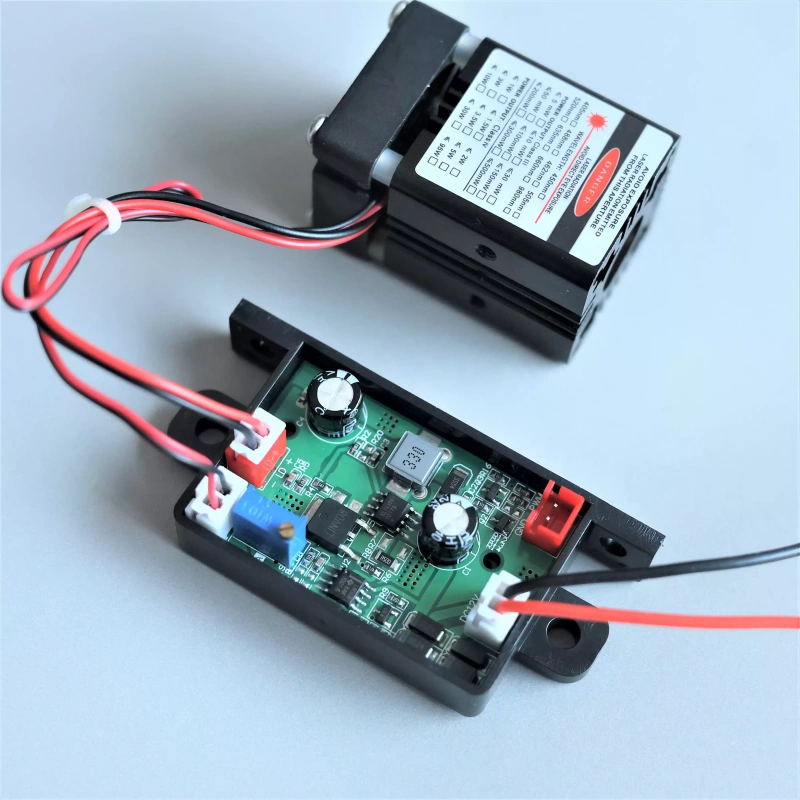

571nm 20mW 30mW 12V Dot Laser Module

571nm 20mW 30mW 12V Dot Laser Module

Specifications:

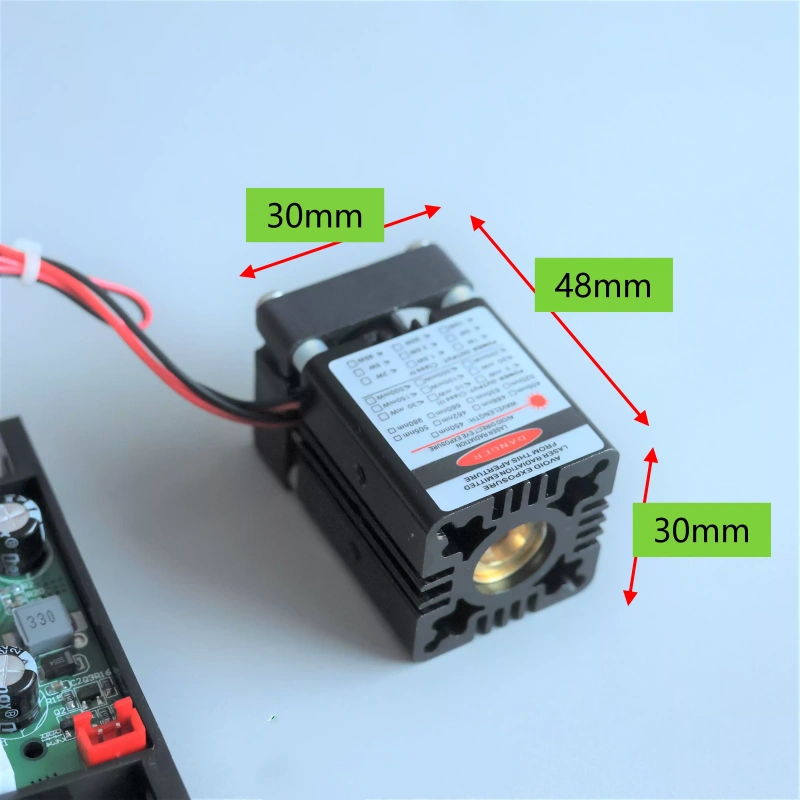

Main unit size: Length 48mm * Width 30mm * Height 30mm
Circuit size: Length 72mm * Width 35.5mm * Height 16mm
Output wavelength: 571nm
Output power: 20mW 30mW
Cooling method: Air cooling
Modulation frequency: 1-20KHz
Operating feature: Can work continuously
Surface treatment: Black
Housing material: 6063 aviation aluminum
Circuit control: Constant current step-down
Reverse connection protection: Yes, automatically identifies polarity
Operating voltage: DC 12V (10-14V)
Operating current: I<0.6A
Preheating time: None
Operating temperature: -10℃ ~ 50℃
Storage temperature: -40℃ ~ 80℃

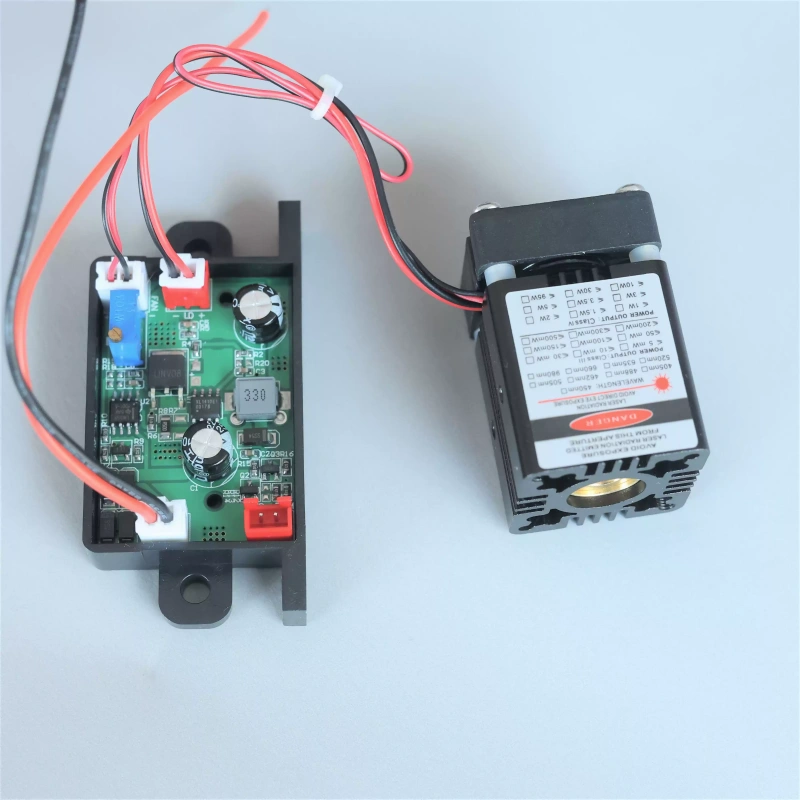

Structural features: Laser tube, lens, heat-dissipating housing
Note: Power supply is external
Special reminder: Input voltage is 12V, overvoltage can instantly damage the circuit and module
