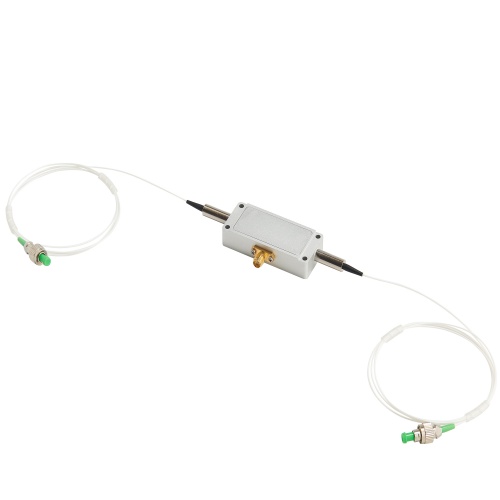

633nm 100MHz Single-mode Fiber Acousto-Optic Modulator (AOM)

633nm 100MHz Single-mode Fiber Acousto-Optic Modulator (AOM)

parameter
material :TeO2
wavelength:633nm
Average optical power handling : 0.3W
Peak (pulsed) optical power: 0.3kW
Ultrasonic sound velocity : 4200m/s
Insertion loss :3dB
Extinction ratio : 50dB
Return loss: 40dB
Rising edge time ：60ns
frequency :100MHz
Frequency shifting : +100MHz（
Customizable -100）
Frequency stability: 100+/-0.1%MHz
RF power :0.8W
Voltage VSWR :1.2:1
Input impedance: 50Ω
Device interface SMA
Fiber type ：Hi630
Fiber length： 1m
Fiber optic interface： FC/APC
Operating temperature ：-20~60℃
Storage temperature ：-30~70℃
