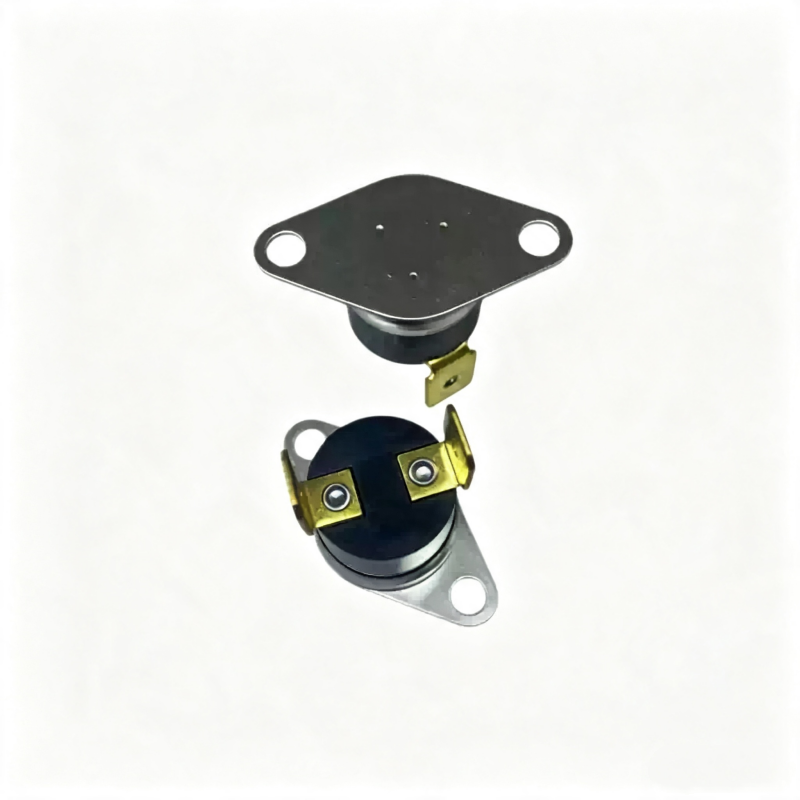

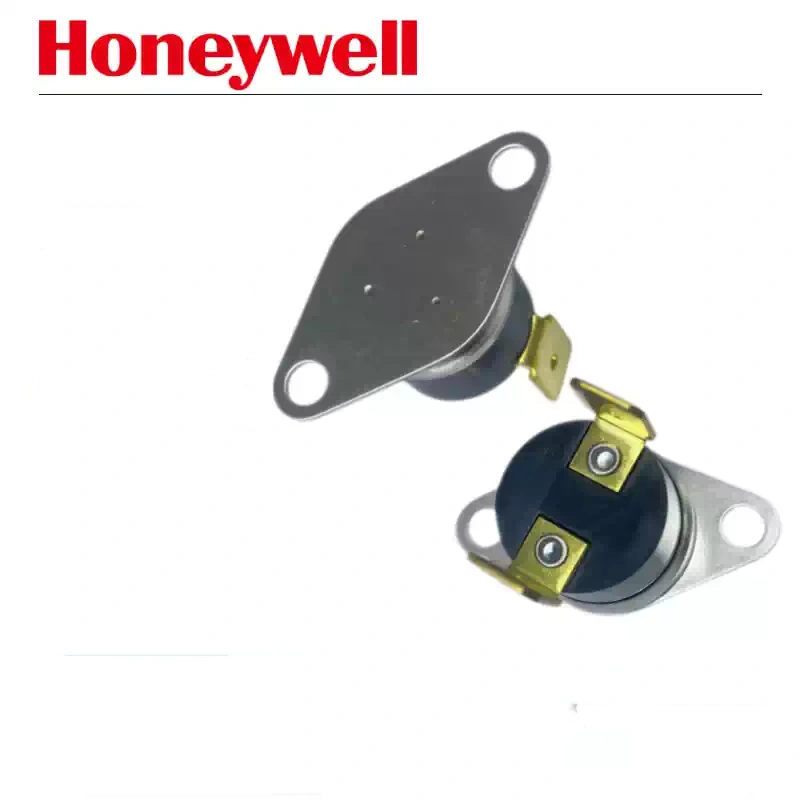

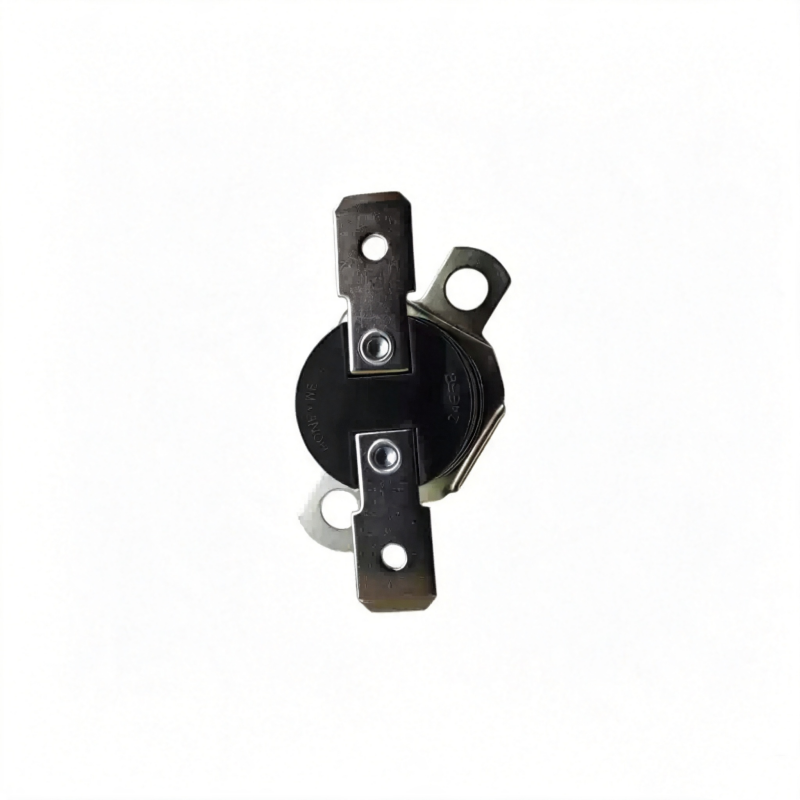

Honeywell 2455R-00820195 2455R-00820713 2455R-00820716 2455R-00820664 Thermostat Switch

Honeywell 2455R-00820195 2455R-00820713 2455R-00820716 2455R-00820664 Thermostat Switch

Parameters

Contact Type: SPST (Single Pole Single Throw)
• Rated: 250VAC; 10A (resistive), momentary 15A
• Reset Type: Automatic reset (typical hysteresis about -15°C, returns to original state after temperature drops about 15°C)
• Dielectric Strength: 2000VAC; maximum contact resistance 50mΩ
• Maximum Operating Environment: 150°C
• Mounting: Dual-ear flange, mounting hole Φ4.8mm; sensing surface closely attached to the heat source

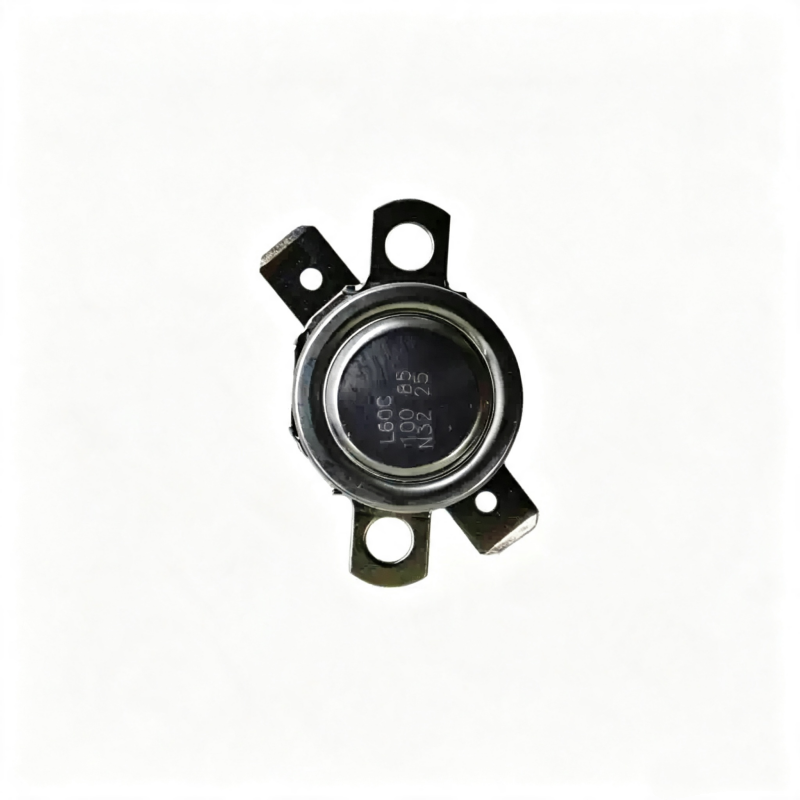

• Label Meaning: LxxC = Normally Closed – Opens when heating (OOR); FxxC = Normally Open – Closes when heating (COR)
