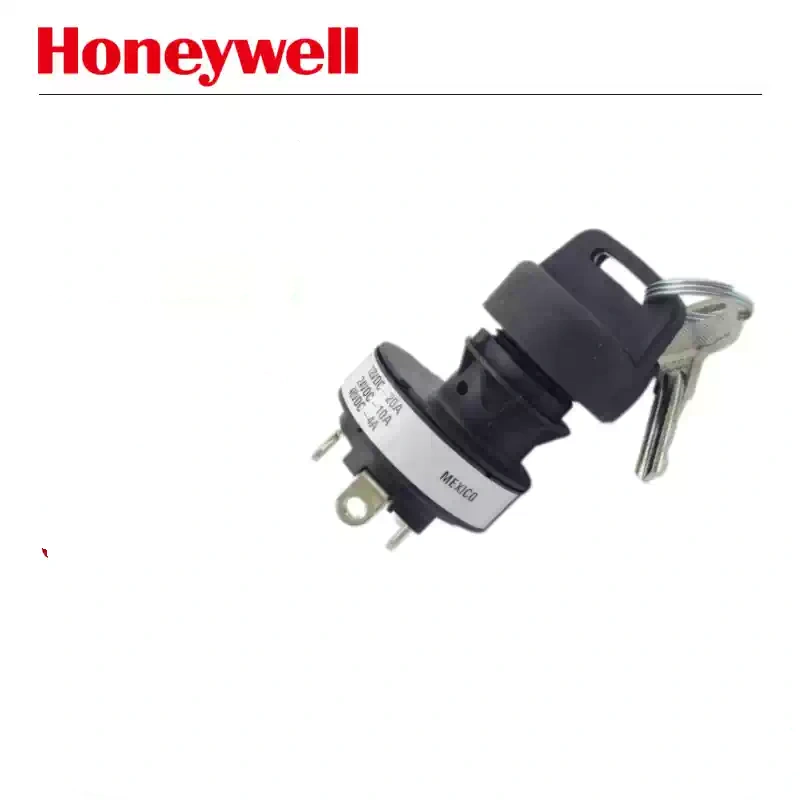

Honeywell 90173-09 89850-07 Key Switch Lock Key Switch

Honeywell 90173-09 89850-07 Key Switch Lock Key Switch

Specifications
Brand: Honeywell
Model: 90173-09
Mounting Method: Panel Mount
Wiring Type: Screw Terminal
Key Type: Flat Key
Rotation Angle: 45°
Operating Temperature: -40℃ ~ 85℃

Model: 89850-07
Switch Circuit: SPDT (Single Pole Double Throw)
Positions: 2 positions: OFF-ON (non-momentary)
Key Type: Flat Key, key can be removed in OFF position
Rotation Angle: 45°
Wiring Type: #6-32 Screw Terminal

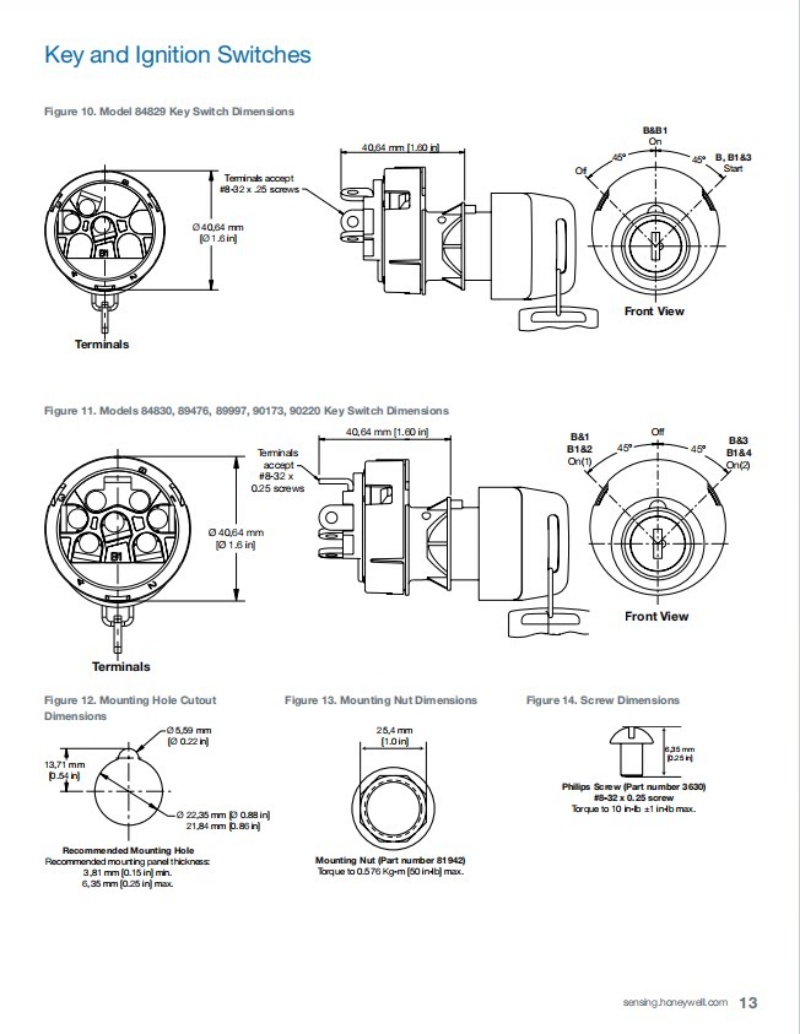

Mounting Method: Panel Mount, panel cutout Φ22.1mm (0.87″), suitable for panel thickness 3.18-6.35mm
Electrical Rating (Resistive Load): 12VDC 20A; 24VDC 10A; 48VDC 4A
Mechanical Life: 25,000 cycles
Operating Temperature: -40℃ ~ 85℃
Sealing: O-ring seal, dust and water resistant, lock cylinder with drainage hole
Applications: Aerial platforms, forklifts, agricultural machinery, generator sets, marine equipment, special vehicles
