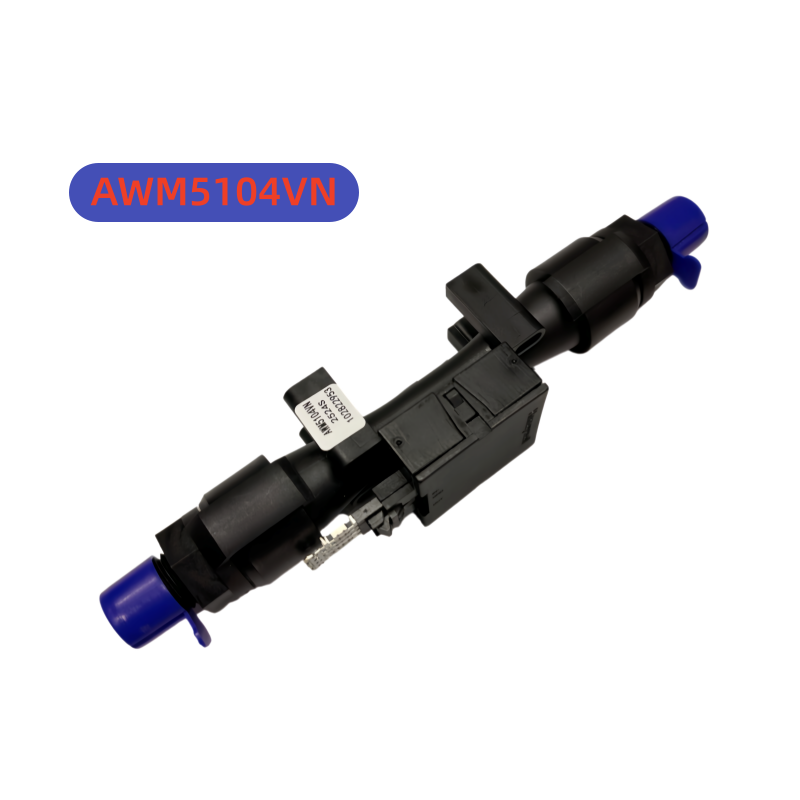

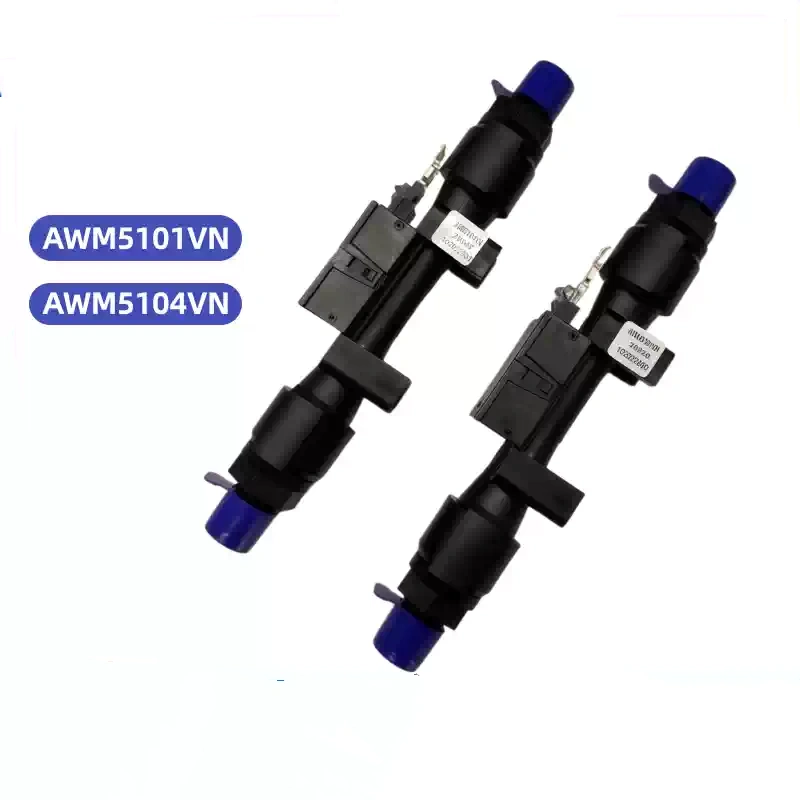

Honeywell AWM5101VN AWM5103VC AWM5104VN Flow Meter Sensor

2. Common Electrical Specifications (Identical for All Three Models)

1. Supply Voltage: DC 8V ~ 15V, typical supply 10V
2. Output Signal: 1~5V DC linear voltage output (≈1V at zero flow, 5V at full scale)
3. Linearity Error: Max. ±3% of reading within 2%~100% FS (Full Scale)
4. Repeatability & Hysteresis: Max. ±0.5% of reading
5. Response Time: ≤60 ms
6. Power Consumption: Typical 50 mW
7. Connector: 4-pin AMP 103956-3 compatible socket (factory equipped as standard)

3. Mechanical & Fluid Specifications (Identical for All Three Models)

1. Fluid Port: 1/4″ NPT external thread (6.35 mm)
2. Housing Material: Engineering plastic
3. Maximum Common Pressure Endurance: 50 psi (3.45 bar)
4. Max. Pressure Drop (At full scale): 2.25 inch H₂O (approx. 560 Pa)
5. Leakage Rate: ≤0.1 psi/min under static pressure of 50 psi
6. Shock Resistance: 100g peak, 6 ms half-sine wave shock, 3 times for each of 3 axes
7. Applicable Media: Dry and clean gas (air, N₂, CO₂, argon, etc.); oil, moisture and dust-laden gas are prohibited

4. Ambient Temperature Specifications (Identical for All Three Models)

• Operating Temperature of Sensor: -20℃ ~ +70℃
• Measured Medium Temperature: 0℃ ~ +50℃
• Storage Temperature: -40℃ ~ +85℃

5. Suffix Code Definition (Key for Model Selection)

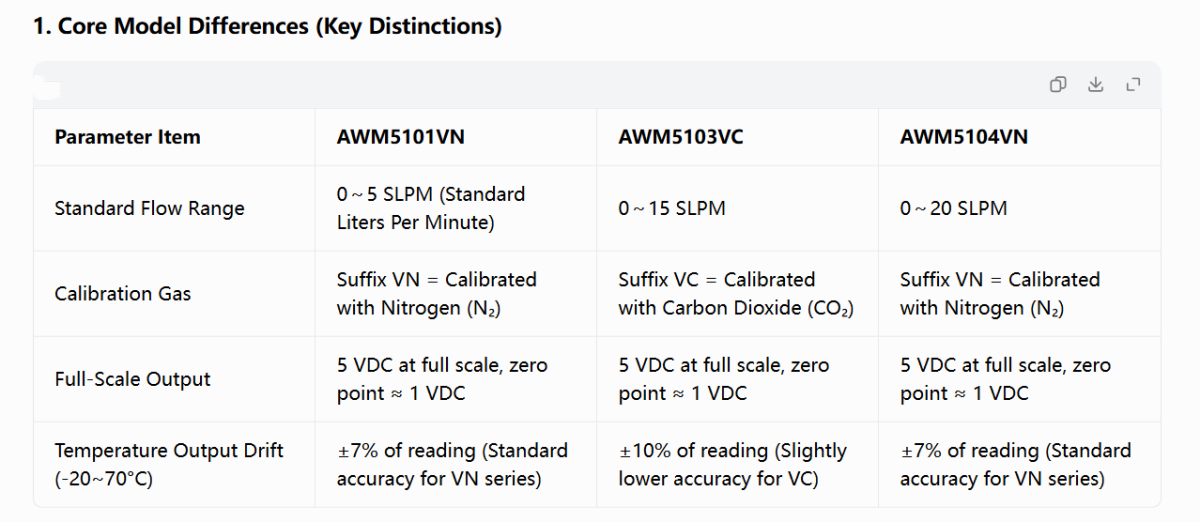

1. VN: Factory-calibrated with nitrogen (N₂), temperature drift ±7%, high versatility, ideal for air and nitrogen measurement
2. VC: Factory-calibrated for carbon dioxide (CO₂), dedicated to CO₂ measurement; temperature drift tolerance widened to ±10%. Fixed offset exists when measuring air/N₂, which requires software correction
3. VA: Argon-calibrated (not included in these three models)

6. Quick Selection Guide

1. Low flow nitrogen/air measurement → AWM5101VN (0~5 SLPM)
2. Dedicated carbon dioxide gas measurement → AWM5103VC (0~15 SLPM)
3. Medium-high flow nitrogen/air measurement → AWM5104VN (0~20 SLPM)
