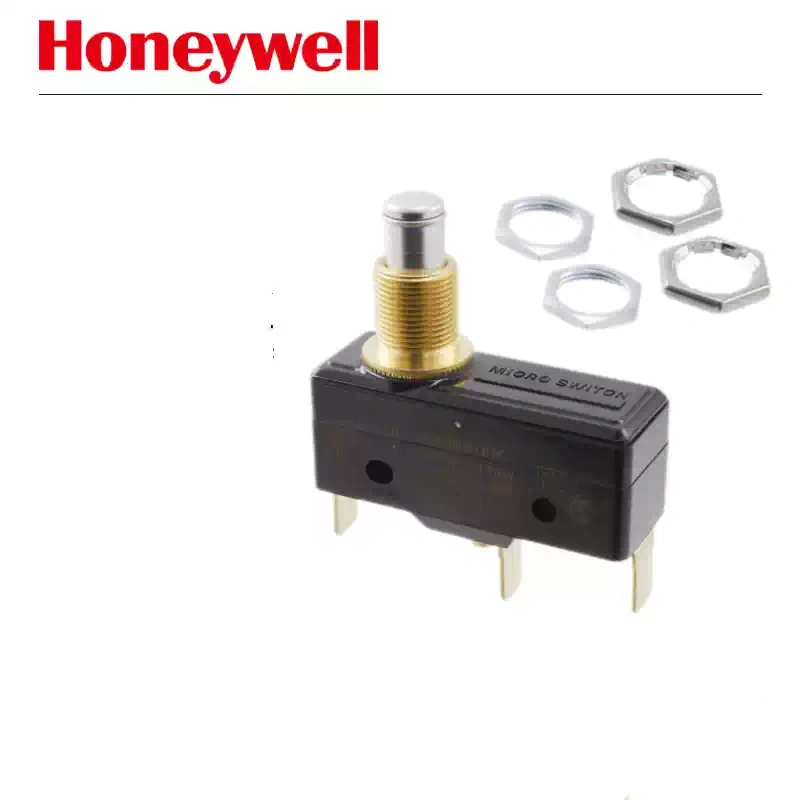

Honeywell BZ-2RQ1-D6 BZ-2RQ-A2 Limit Switch

Honeywell BZ-2RQ1-D6 BZ-2RQ-A2 Limit Switch

BZ-2RQ1-D6 Specs
Contact Type: SPDT (Single Pole Double Throw, momentary)
Rated Current: 15A
Rated Voltage: 250VAC; 125/250VDC
Terminals: Screw terminal

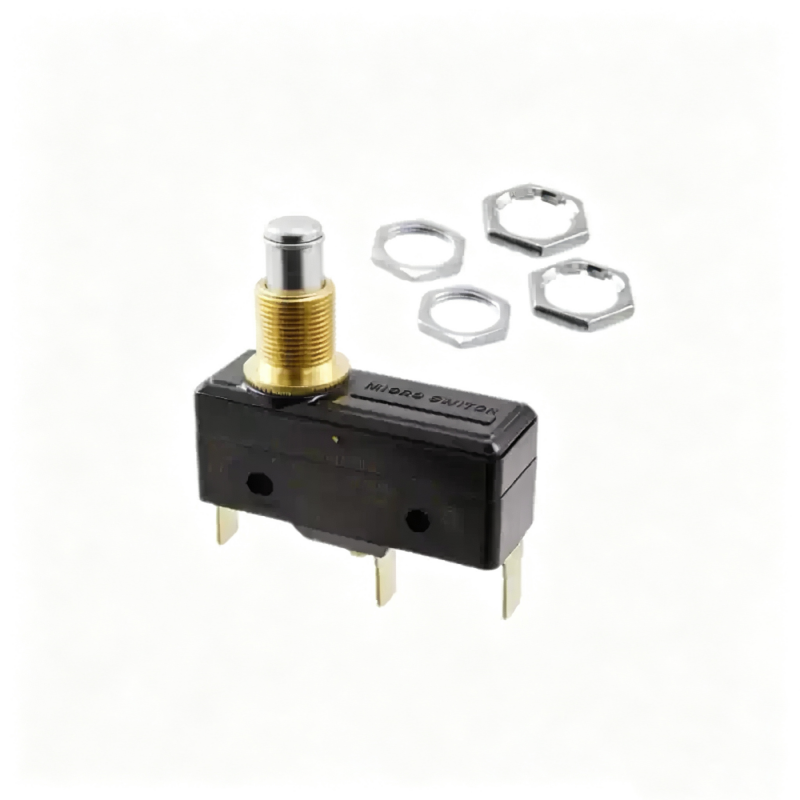

Actuator: Threaded plunger (panel mount with lock nut)
Operating Force: 2.55‑3.68 N (255‑368 gf)
Protection Rating: IP64
Contacts: Silver material
Housing: Phenolic high-temperature resistant housing
Operating Temperature: -55℃ ~ 85℃
Key Notes:
1. **Meaning of D6 Suffix**: Comes with a threaded plunger and matching lock nut for panel hole installation; standard BZ-2RQ1 does not have a threaded plunger.
2. Mechanical Life: Millions of operations, commonly used for industrial limit switches, equipment door control, and safety interlocks.
3. Pin Definition: COM common, NO normally open, NC normally closed; standard SPDT micro switch logic.

BZ-2RQ-A2 Specs
Contact Configuration: SPDT (Single Pole Double Throw, momentary)
AC Rating: 15A 125/250/480VAC
DC Rating: 2A‑60VDC, 0.5A‑125VDC
Terminals: Screw terminal
Actuator: Smooth rod plunger (no threads, lock nut not possible for panel)
Operating Force: OF 2.45‑3.61 N
Release Force: RF 1.11 N
Housing: Phenolic resin high-temperature resistant with protection
Rating: IP64
Contacts: Silver material
Operating Temperature: -55℃ ~ 85℃

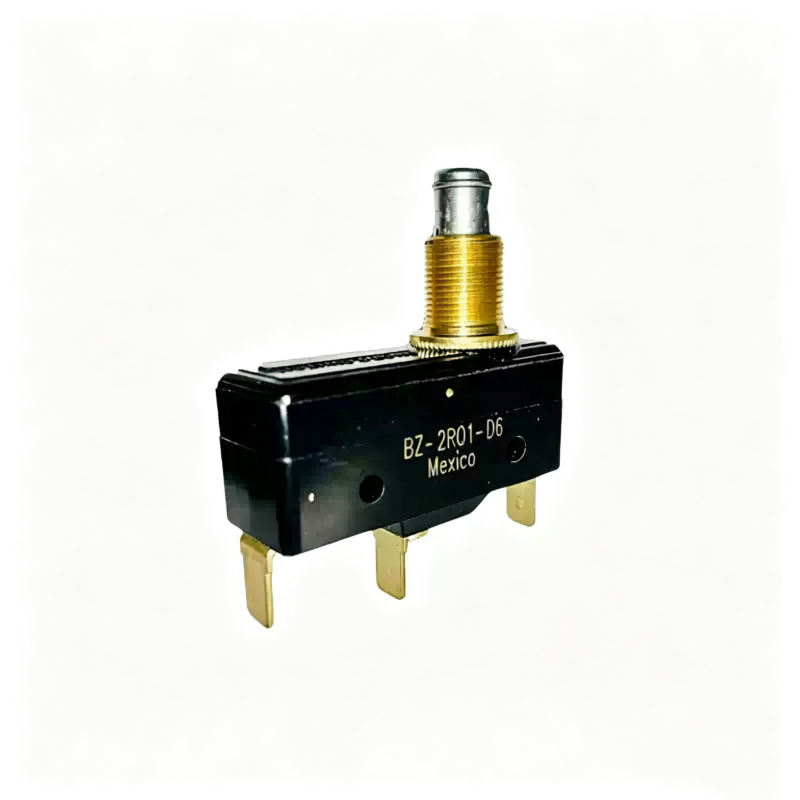

Honeywell BZ-2RQ1-D6 Limit Switch
