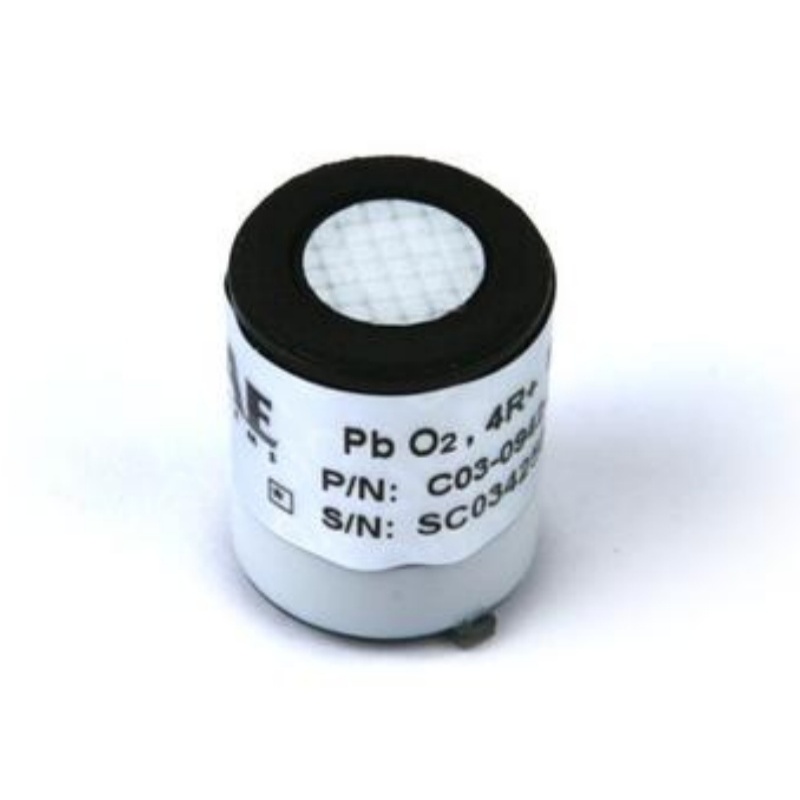

HONEYWELL C03-0942-000 Gas Sensor Oxygen Sensor

HONEYWELL C03-0942-000 Gas Sensor Oxygen Sensor

Specs:
Brand: HONEYWELL
Model: C03-0942-000
Principle: Electrochemical lead-oxide battery (PbO₂)
Range: 0～30%Vol O₂
Resolution: 0.1%Vol O₂
T90 Response Time: ≤15 s
Bias Voltage: No bias needed
Stabilization Time: About 10 minutes after installation
Operating Temperature: -20℃ ~ 50℃
Pressure Range: Atmospheric ±10%
Humidity: 5～90% RH, no condensation
Zero Calibration: Using high-purity N₂
Span Calibration: 20.9% air or 18% O₂ calibration gas

Usage Notes:
1. Do not contaminate or block the breathable membrane; oil, dust, and organic solvent vapors can permanently damage the sensing film.
2. The sensor is a pre-activated module. Install it as soon as possible after unpacking; store in the original packaging and avoid long-term exposure to air to prevent electrolyte depletion.
3. Replace the entire module when the lifespan ends; do not replace the sensing cell alone.
4. Perform a bump test before each use and calibrate regularly.
