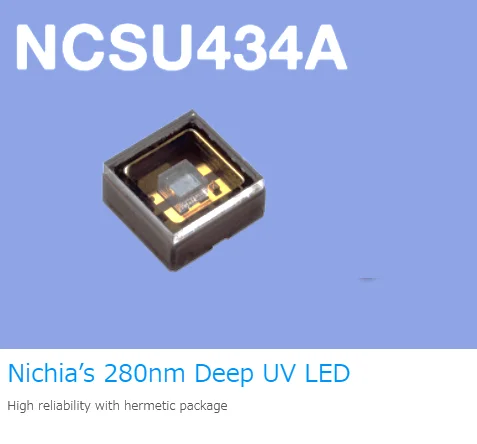

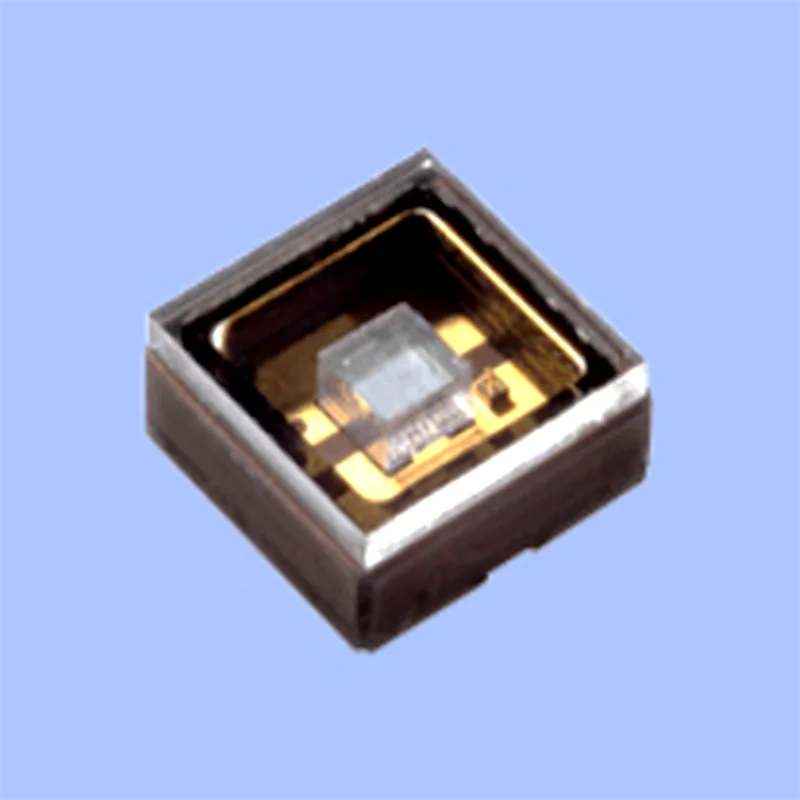

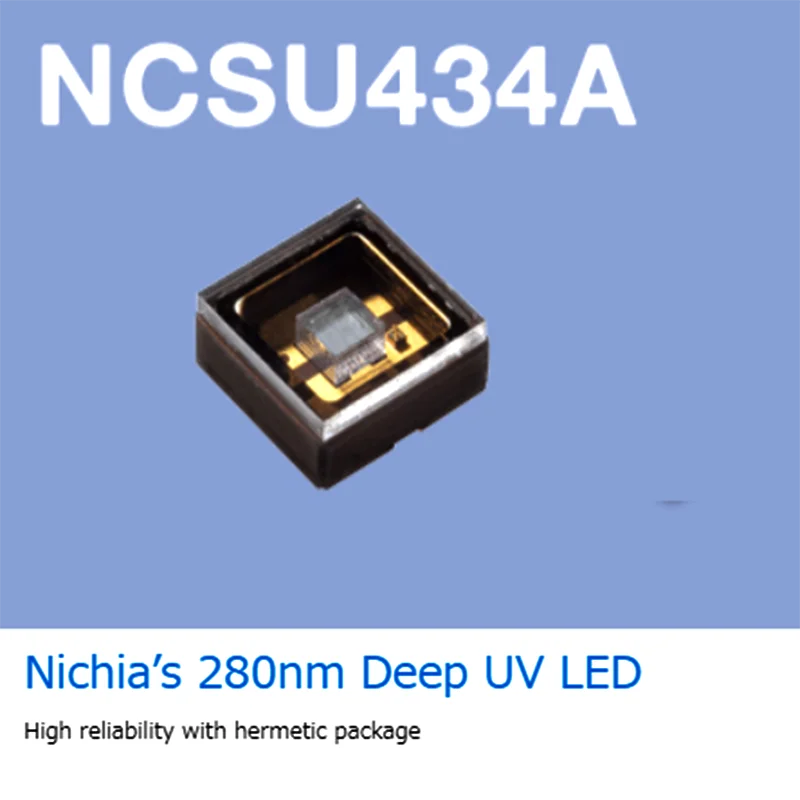

NICHIA NCSU434A UVC LED UVC Lamp Beads 280nm Deep Ultraviolet Light Emitting Diode SMD UV Chips
- Model Number: NCSU434A
- Origin: JP(Origin)
- Item Type: BALL
- Wavelength: 280nm

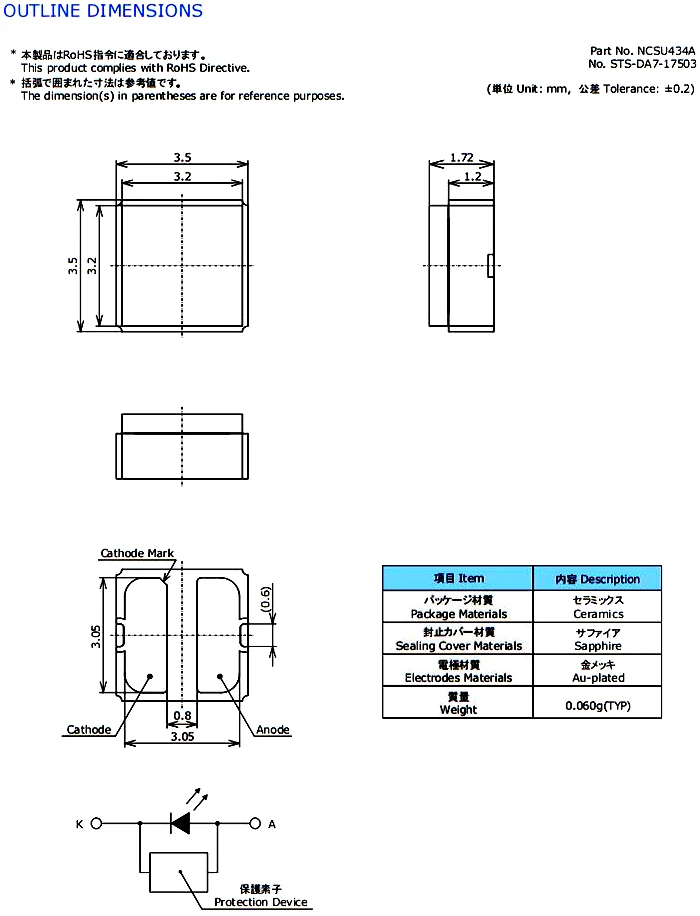

- Size: 3.5mm x 3.5mm x 1.7mm
- Intensity: 17.5 mW/cm2
NICHIA has also launched the mid-power NCSU434A UVC LED emitter, which produces a lower radiant output of 17.5mW at a drive current of 100mA and a forward voltage of 5.3V. the NCSU434A is supplied in a package which measures 3.5mm x 3.5mm x 1.7mm.
If necessary, please contact us for detailed specifications and parameters.
Applications of 280nm NCSU434A UVC UV LED Light Bead:
Industrial equipment
Water purifiers
HVAC systems
Features of NICHIA Deep UVC Ultraviolet LED:

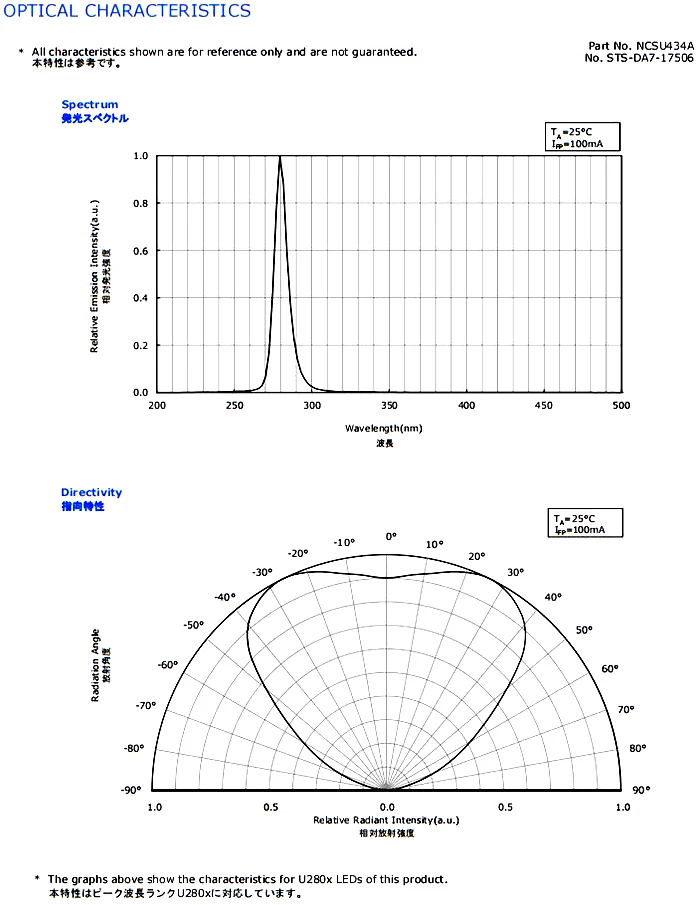

10nm spectrum half-width
110°C maximum junction temperature

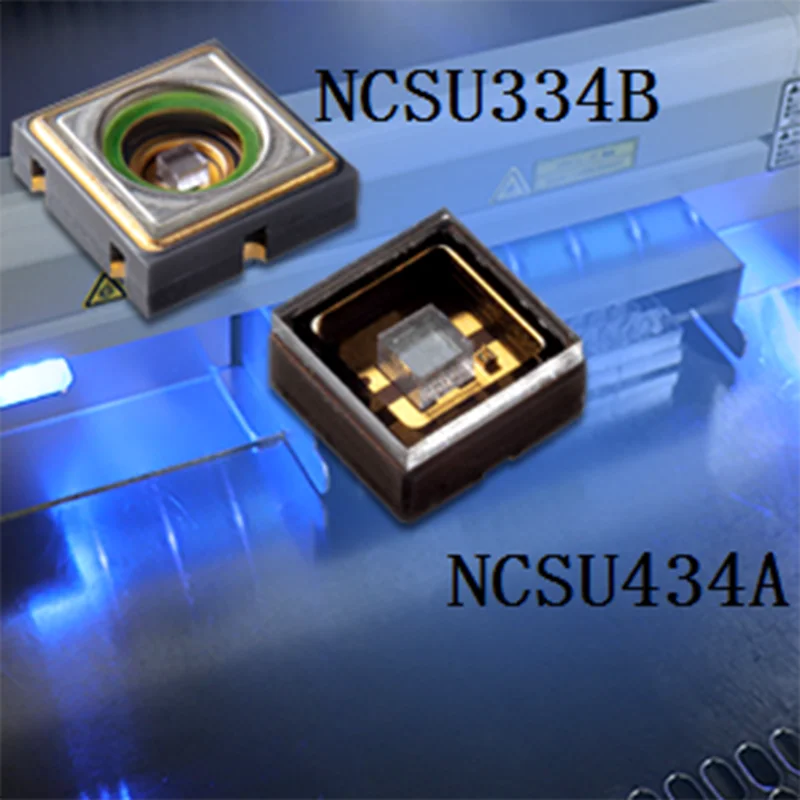

Package specifications:
NCSU334B: 6.8mm x 6.8mm x 2.1mm surface-mount package
NCSU434A: 3.5mm x 3.5mm x 1.7mm surface-mount package
NICHIA NCSU434A UV LED Disinfection:
Ultraviolet light technology is a hot topic in the lighting industry today, as UV light is capable of disinfecting and killing biological impurities. In particular, UV-C LEDs are said to revolutionize sterilization and disinfection, improving the safety of health facilities specifically, which is a much needed development in the current pandemic situation.
|
Peak Wavelength λp |
Typ.(nm) |
280 |
|
|
Radiant Flux ΦE |
Typ.(mW) |
62 |
17.5 |
|
Forward Voltage VF |
Typ.(V) |
5.7 |
5.3 |
|
Max.(V) |
6.5 |
6.0 |
|
|
Directivity 2θ ½ |
Typ.(degree) |
110 |
|
|
IF |
(mA) |
350 |
100 |
|
Size |
LxWxH (mm) |
3.5×3.5×1.72 |
|
