Nichia 405nm 35mW NDV1322-01 violet-blue laser diode
Nichia 405nm 35mW NDV1322-01 violet-blue laser diode Price range: $9.90 through $45.00

SANYO 405nm20mW Violet Laser Diode DL-4146-101S P-type with PD

Price range: $9.00 through $68.00

Clear
Compare
Add to wishlist
SKU: N/A Categories: ,
Description

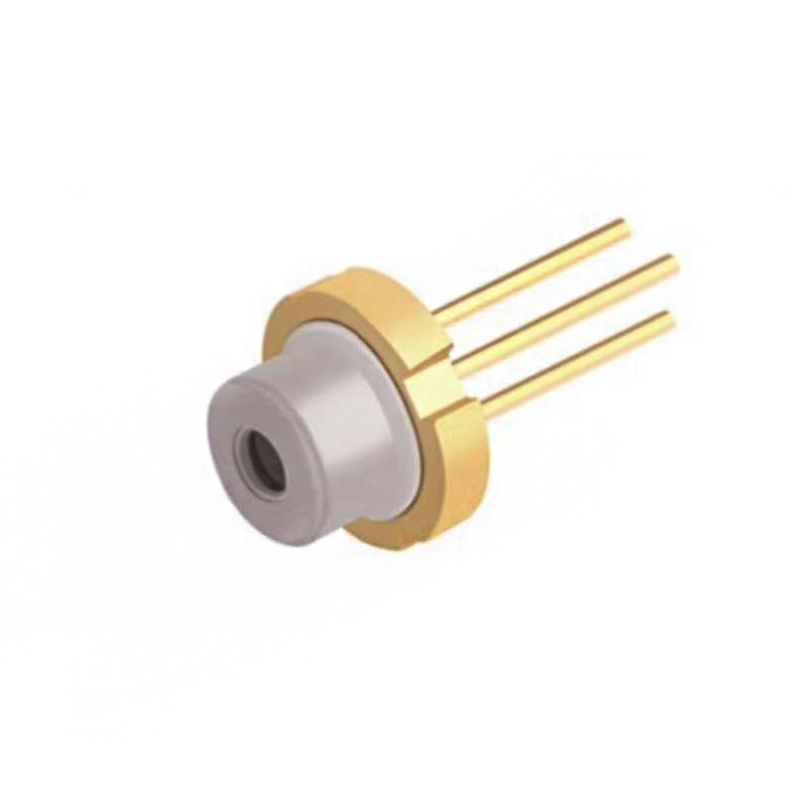

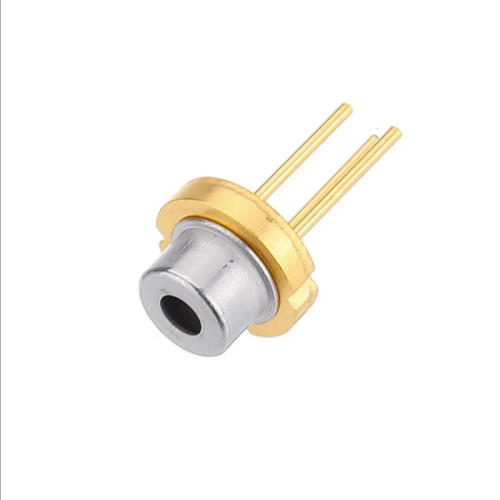

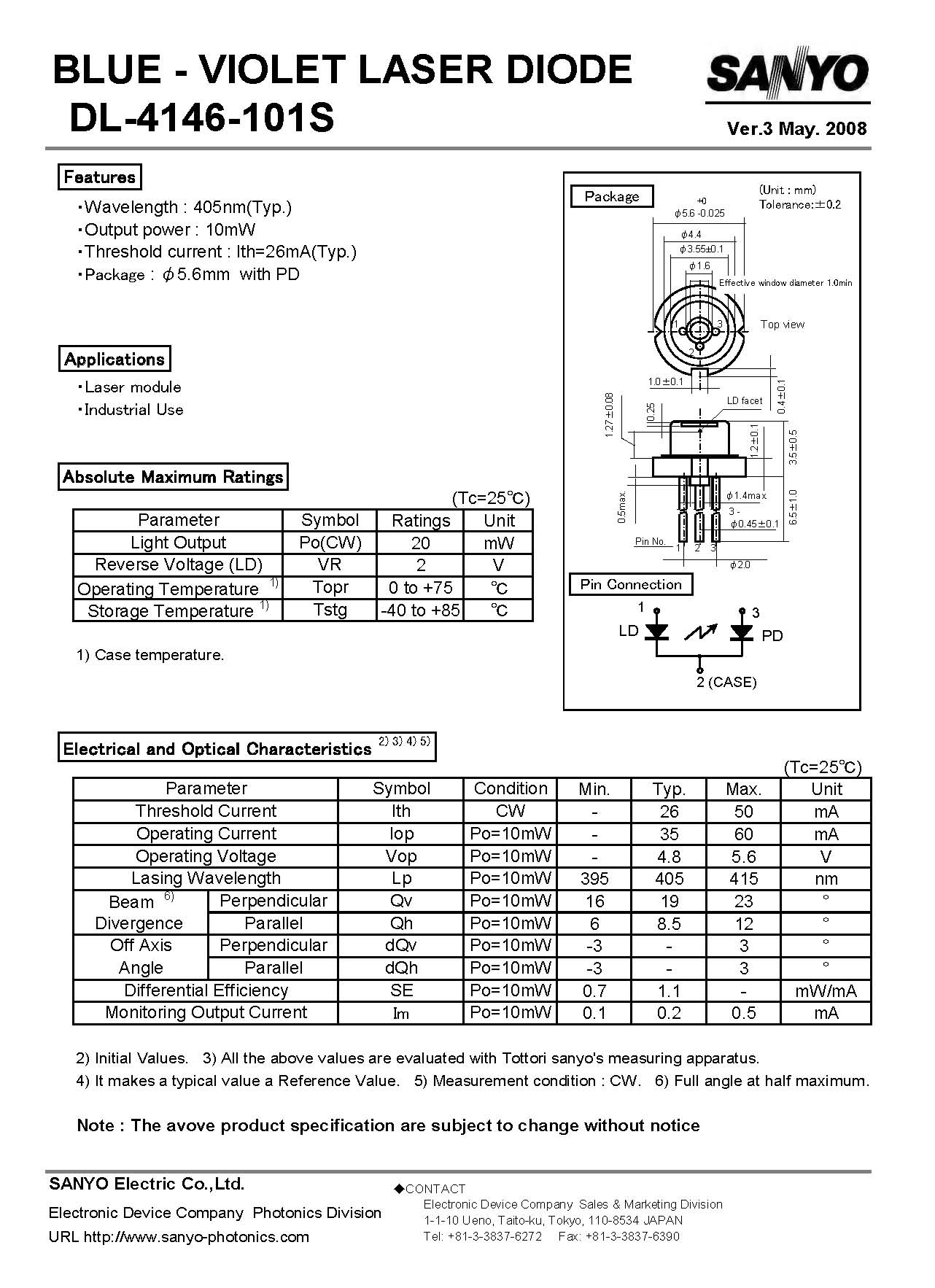

SANYO 405nm20mW Violet Laser Diode DL-4146-101S P-type with PD

[Specification]

Brand: Sanyo
Origin: Japan
Wavelength: 405nm
Model: DL-4146-101S
Output Power:50- 20mW
Operating Current: 60mA
Operating Voltage: 5.6V
Operating Temperature: 0 ~ +75ºC
Package Type: TO18 (φ5.6mm)

SANYO 405nm20mW Violet Laser Diode DL-4146-101S P-type with PD
