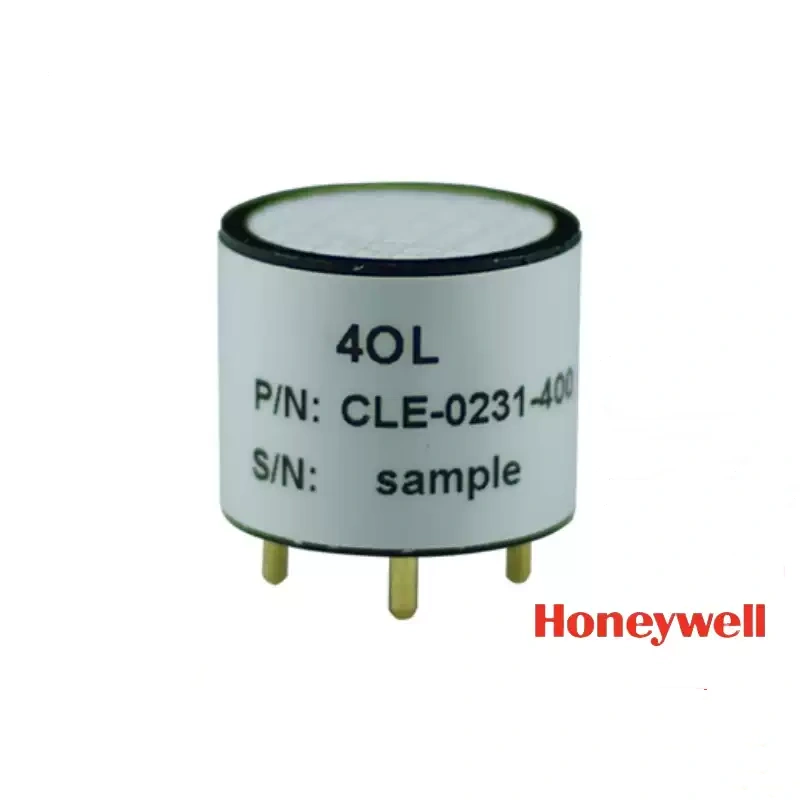

Honeywell 4OL CLE-0231-400 Oxygen Sensor

Honeywell 4OL CLE-0231-400 Oxygen Sensor

Specifications:
Principle: Two-electrode electrochemical galvanic cell
Measurement range: 0–30% Vol O₂
T90 response time: ≤30 s
Dimensions: Φ20.2 mm, standard 4-series package
Orientation sensitivity: None, can be installed at any angle
Storage life (factory sealed): 6 months
Output signal (in air with 20.95% O₂): about -600 mV
Pressure range: 80–120 kPa
Pins: Working, Counter, Reference
Do NOT solder the sensor pins directly—must use a PCB socket; high-temperature soldering will permanently damage the sensor
