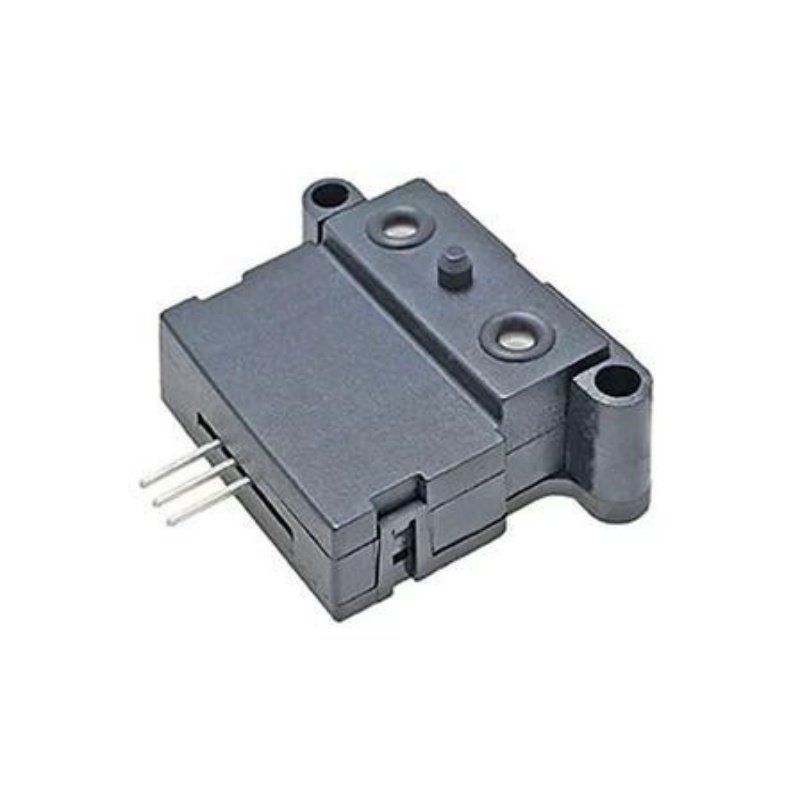

Honeywell AWM43600V-2 Air Mass Flow Sensor

Honeywell AWM43600V-2 Air Mass Flow Sensor

The AWM43600V-2 belongs to the AWM40000 series of amplified microbridge mass flow sensors, which directly measure gas mass flow (not volumetric flow). It has a built-in signal conditioning circuit and provides an analog voltage output. It’s commonly used for monitoring the flow of clean gases like dry air and oxygen.

Specifications:

Measurement Principle: Microbridge thermal mass flow (heat transfer)
Full Scale: 0–6 SLPM (Standard Liters Per Minute, unidirectional forward flow)
Supply Voltage: 5 VDC
Output Type: Amplified analog voltage output (ratiometric)
Zero Flow: 1.0 V ±0.05 V
Full Scale 6 SLPM: 5.0 V ±0.15 V
Response Time: Millisecond-level fast response, can detect flow changes
Medium: Dry air, O₂, nitrogen, and other clean, non-condensing gases
Operating Temperature: -25℃ to 85℃
Recommended Max Pressure Difference: 8 in H₂O (~20 mbar)
Power Consumption: Typically 30 mW
Interface: Two hose barbs, PCB through-hole pins (2.54mm spacing)
