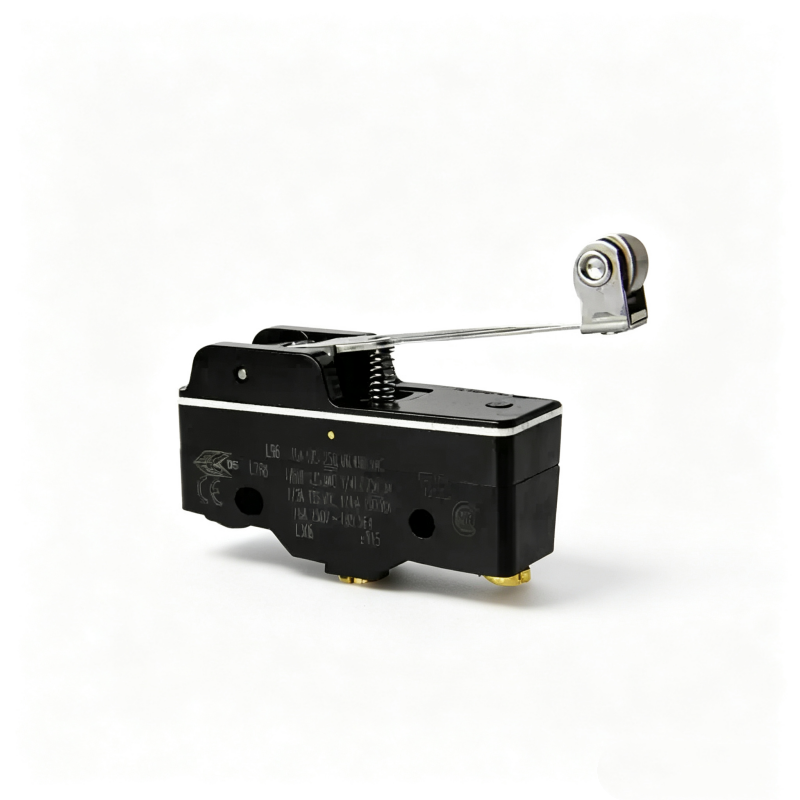

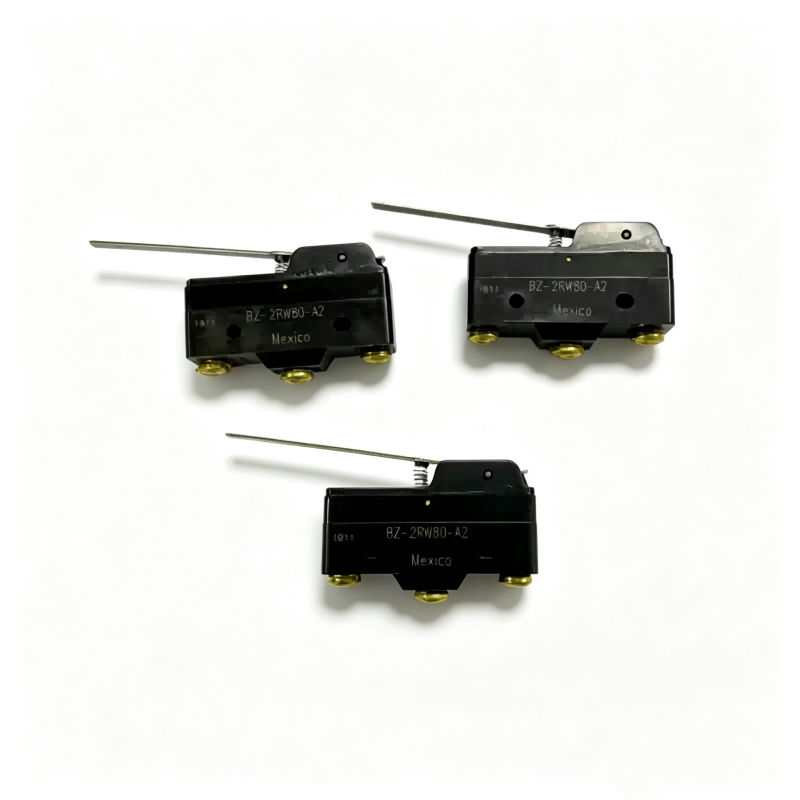

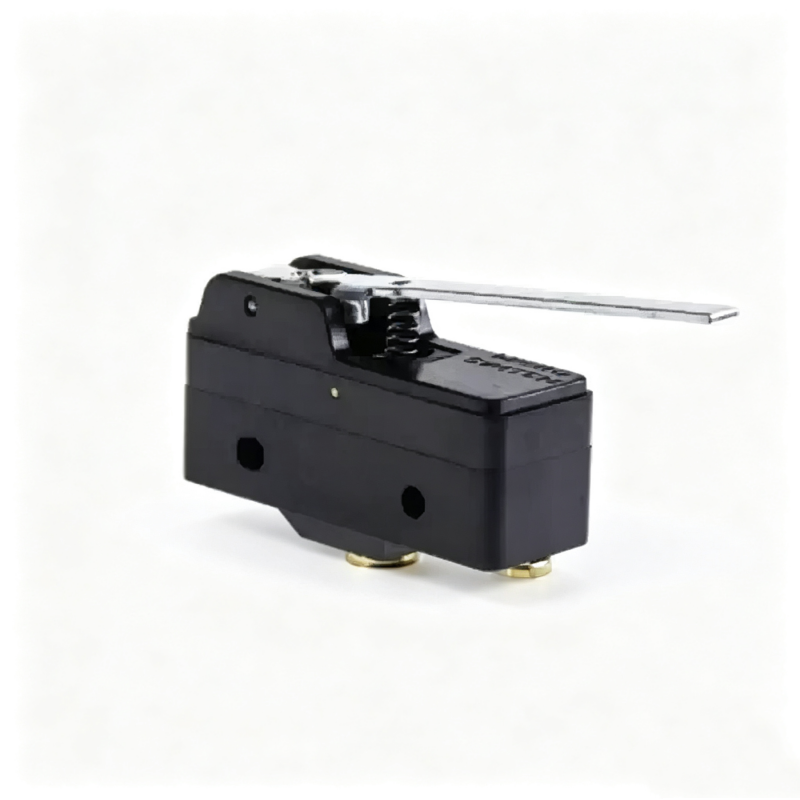

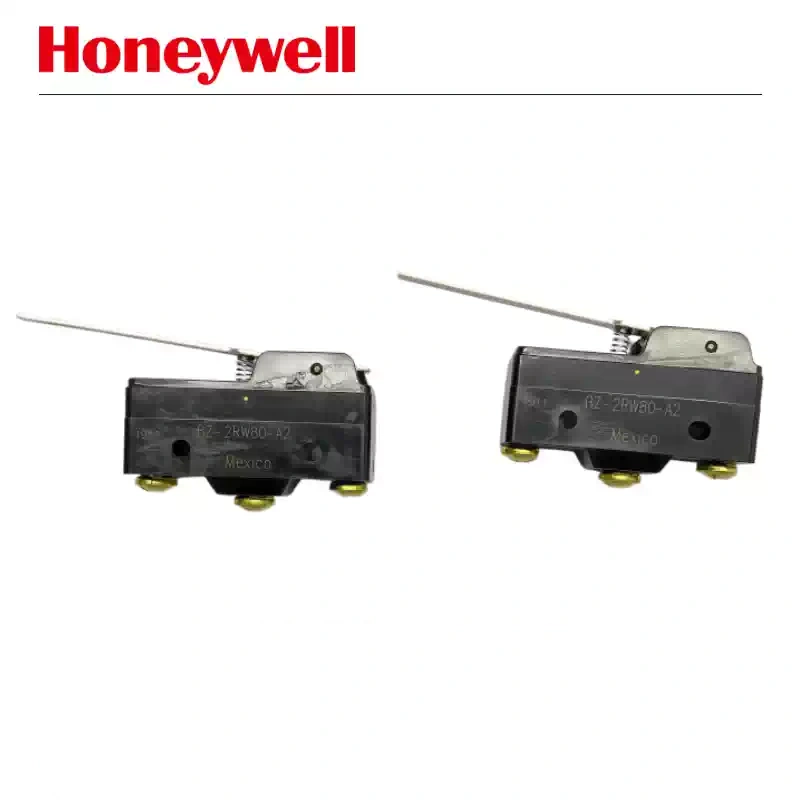

Honeywell BZ-2RW80-A2, BZ-2RW8244-A2, BZ-2RW822244-A2, BZ-2RW84-A2 Micro Travel Limit Switches

Honeywell BZ-2RW80-A2, BZ-2RW8244-A2, BZ-2RW822244-A2, BZ-2RW84-A2 Micro Travel Limit Switches

Specifications

Model: BZ-2RW80-A2, BZ-2RW8244-A2, BZ-2RW822244-A2, BZ-2RW84-A2
Brand: Honeywell
Contact Type: SPDT (Single Pole Double Throw, COM‑NO‑NC)
Terminals: M3.5 screw terminals, suitable for direct cable crimping, not quick-connect tabs
Housing Material: Phenolic resin (Bakelite) flame-retardant case
Mechanical Life: Up to 2,000,000 cycles
Mounting: Two through holes for M3.5/M4 screws; installation torque 1.2‑1.5 N·m
Certifications: UL, CSA, CE; some high-temperature models have high-temperature resistance certification
Operating Parameters: Pre-travel (PT), over-travel (OT) minimum 5.56mm, differential travel 0.18‑1.27mm
