Hamamatsu C16767MA-01 UV Mini Spectrometer for POC Testing: Small Device Integration for Accurate UV Detection

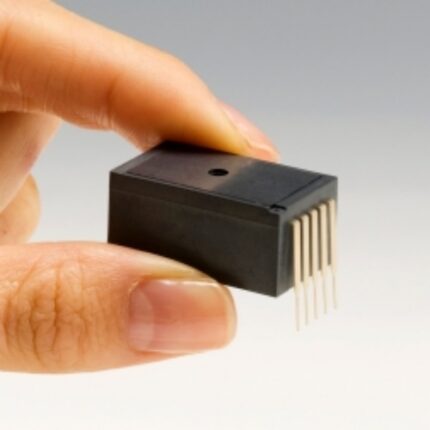

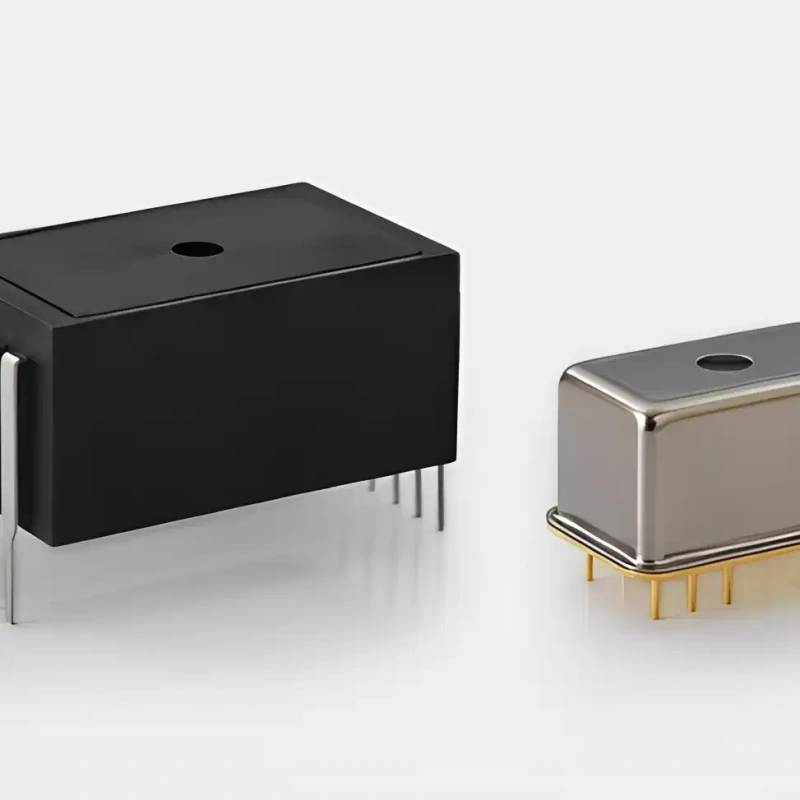

The Hamamatsu C16767MA-01 is a fingertip-sized ultra-compact UV micro spectrometer probe designed for integration into mobile measurement devices. Its core strengths are high sensitivity and coverage of the ultraviolet range (190–440 nm).
Specifications
Brand: Hamamatsu
Model:C16767MA-01
Origin: Japan
Spectral response range: 190 nm to 440 nm (UV range)
Spectral resolution (FWHM): Typical 3.2 nm, max 5 nm
Size and weight: 20.1 mm × 12.5 mm × 10.1 mm, only 5 g
Sensor type: CMOS linear image sensor with slit (288 pixels), non-cooled
Key features: Supports synchronized integration (electronic shutter), built-in stray light cutoff filter
Technical highlights:
Uses MEMS etching technology to integrate the slit and nanoimprint lithography to make a reflective concave grating, optimizing UV diffraction efficiency. The image sensor is UV-optimized and integrates a stray light cutoff layer made with semiconductor processes, improving the signal-to-noise ratio. Requires an external interface module; wavelength conversion factors are provided in the accompanying inspection report.
Typical applications:
Environmental monitoring: Water analysis (nitrate, nitrite, BOD), atmospheric pollutant (NO, SO₂) monitoring
Light source testing: UV-LED, UV-A/B/C radiation intensity checking
Industrial processes: Semiconductor plasma or gas process monitoring
