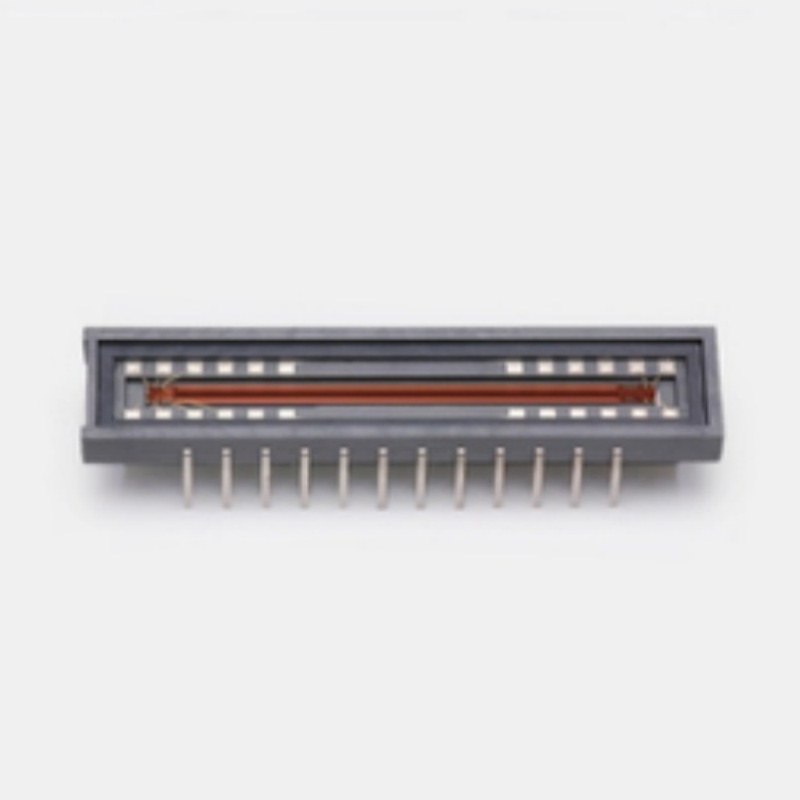

Hamamatsu S13496 High-Sensitivity CMOS Linear Sensor

Hamamatsu S13496 High-Sensitivity CMOS Linear Sensor

The S13496 is a high-sensitivity CMOS linear image sensor with a light-receiving area made up of tiny pixels. It has a long light-receiving surface with 4096 pixels (effective photosensitive length: 28.672 mm), and each pixel measures 7 × 200 μm.

Specifications

Brand: Hamamatsu
Model: S13496
Origin: Japan
Pixel size: 7 × 200 μm
4096 pixels
Effective photosensitive length: 28.672 mm
High sensitivity: 650 V/(lx·s)
Full-pixel synchronous charge integration
Variable integration time function (electronic shutter)
5 V single power supply
Built-in timing circuit allows operation with just start and clock pulse inputs
Maximum signal data rate: 10 MHz
