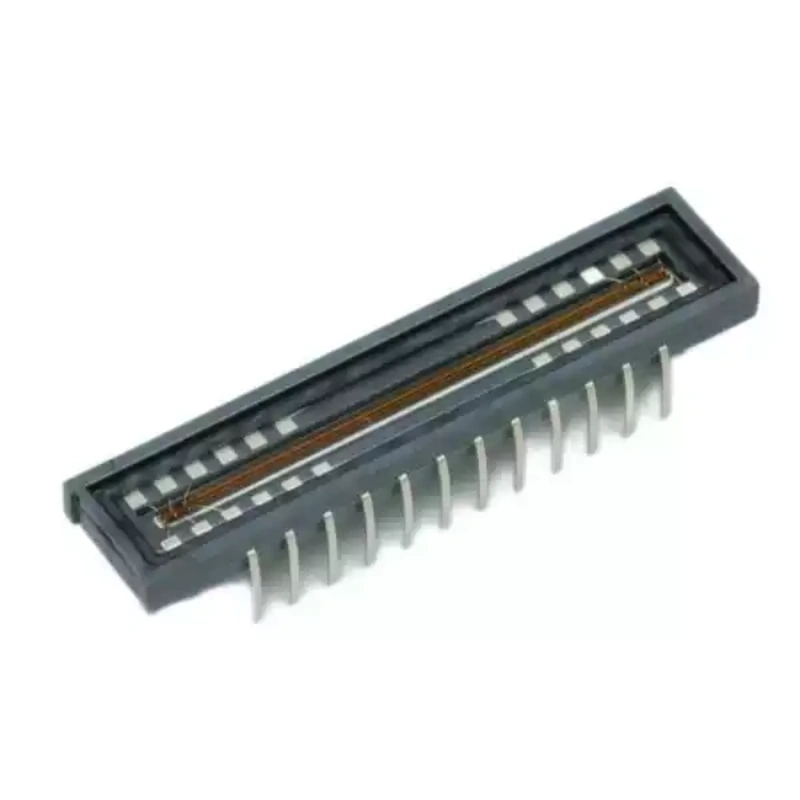

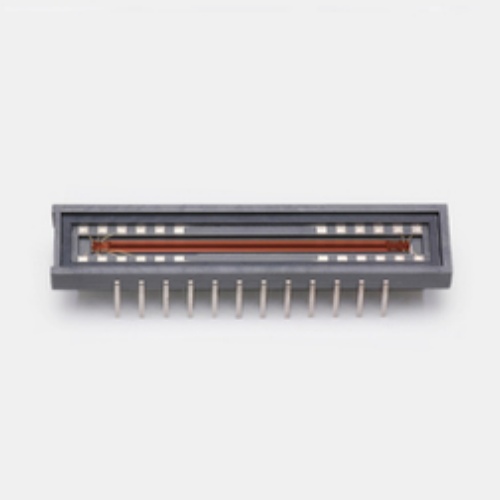

Hamamatsu S11639-01 High-Sensitivity CMOS Line Sensor

The S11639-01 is a high-sensitivity CMOS line sensor with a photosensitive surface featuring longer vertical pixel lengths (14 × 200 µm). Other features include high sensitivity in the UV range and strong resistance to ultraviolet exposure. The S11639-01 operates on a 5 V single power supply, making it suitable for low-cost spectrometers.

Features

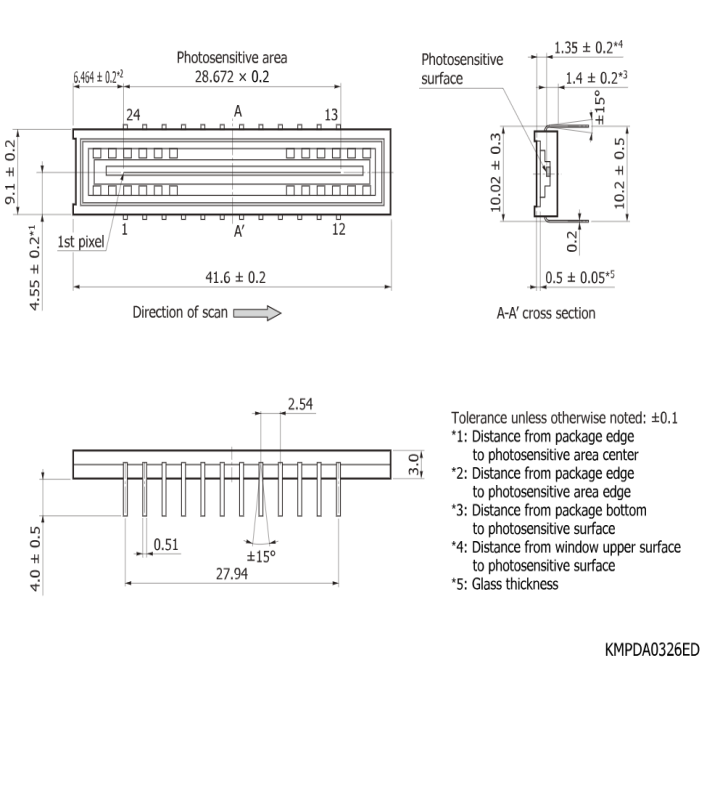

– Pixel size: 14 × 200 μm
– 2048 pixels
– Effective photosensitive area length: 28.672 mm
– High sensitivity: 1300 V/(lx·s)

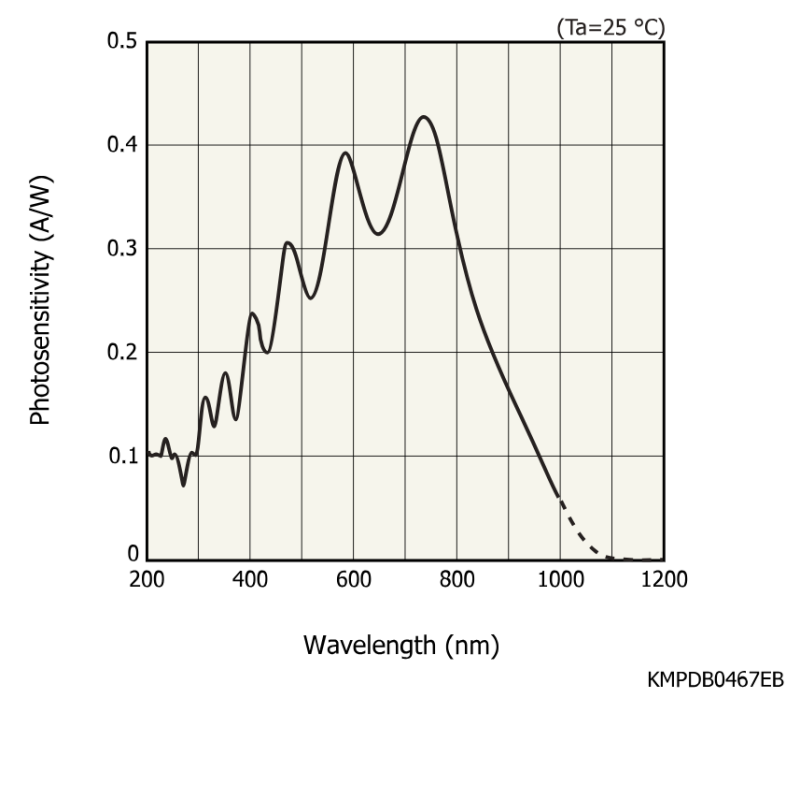

– High sensitivity from UV to near-infrared range (spectral response: 200 to 1000 nm)
– Simultaneous charge integration across all pixels
– Variable integration time feature (electronic shutter)
– 5 V single power supply
– Built-in timing circuit allows operation with just start and clock pulse input
– Signal data rate: up to 10 MHz
