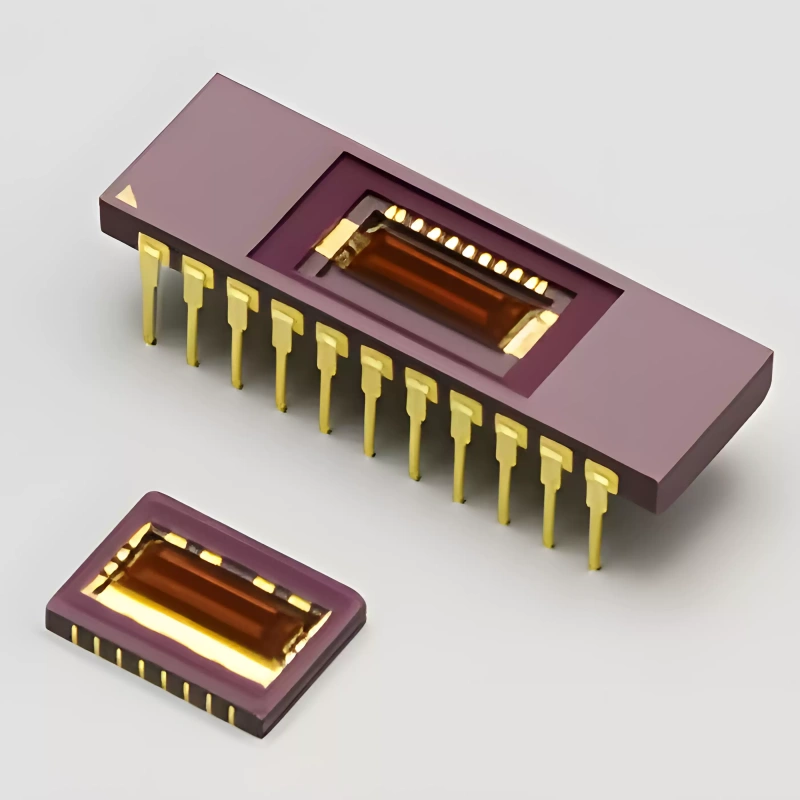

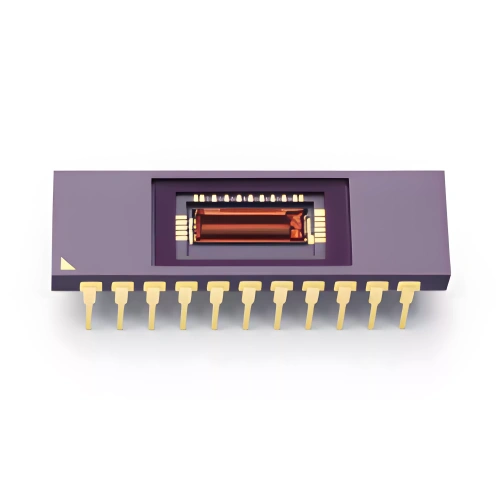

Hamamatsu S11105 50MHz High-Speed 512-Pixel Dual-Package Industrial Inspection Linear Image Sensor
Specifications
Brand: Hamamatsu
Model: S11105
Origin: Japan
Effective Pixels: 512 x 1 pixel
Pixel Size: 12.5 × 250 μm
Image Size: 6.4 × 0.25 mm
Spectral Response Range: 400 ~ 1000 nm (peak wavelength 680 nm)
Maximum Signal Data Rate: 50 MHz
Maximum Line Rate: approx. 88,495 lines/sec (depending on clock frequency)
Electrical and Operating Characteristics
Supply Voltage: 5 V single supply (recommended range 4.75 ~ 5.25 V)
Power Consumption Current: Typical 140 mA (at 50 MHz clock); 70 mA (at 1 MHz)
Output Impedance: 60 ~ 260 Ω
Integration Time: Supports variable integration time (electronic shutter function), determined by the high-level period of the start pulse
Timing Control: Built-in timing generation circuit, can operate with just Start Pulse (ST) and Clock Pulse (CLK)
Key Performance Parameters (typical values, Ta=25℃, Vdd=5V, f(clk)=50MHz)
Sensitivity: 40 V/(lx·s)
Conversion Efficiency: 0.6 µV/e-
Dark Output Level: 1.0 V (integration time 10 ms)
Saturation Output Level: 1.3 V
Readout Noise: 1.3 mV rms
Dynamic Range: 520 times (DR1) / 1300 times (DR2)
Photo Response Non-Uniformity (PRNU): ±8%
