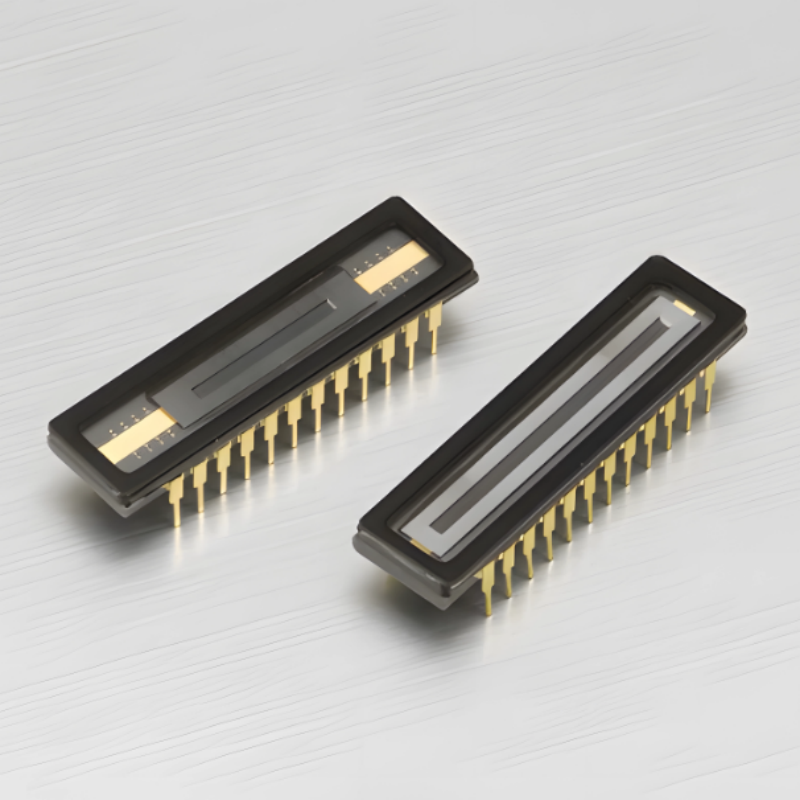

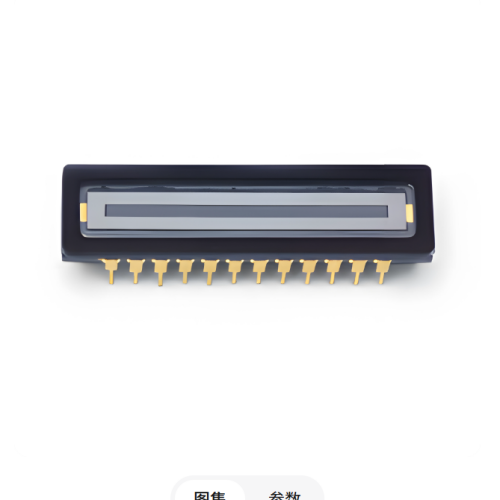

Hamamatsu S11071-1106 CCD Image Sensor 10MHz High Precision 14×14μm Pixel Spectrometer Special

Hamamatsu S11071-1106 CCD Image Sensor 10MHz High Precision 14×14μm Pixel Spectrometer Special

Specifications

Brand: Hamamatsu
Model: S11071-1106
Origin: Japan
Effective Pixels: 2048 (H) × 64 (V)
Pixel Size: 14 × 14 μm
Image Size: 28.672 × 0.896 mm
Spectral Response Range: 200 to 1100 nm (UV to near-infrared)
CCD Node Sensitivity: 8 μV/e-
Readout Noise: 23 e- rms (typical, under full-line binning conditions)
Dark Current: 50 e-/pixel/sec (typical, Ta=25°C)
Full Well Capacity: High full well capacity, supports wide dynamic range
Speed and Cooling Characteristics
Line Rate (Typical): 651 lines/sec
Line Rate (Max): 2875 lines/sec
Cooling Method: Non-cooled (no built-in thermoelectric cooler)
Spectral Response Characteristics: Nearly flat, with better standard etaloning suppression.
