Hamamatsu S8377-128Q CMOS Linear Image Sensor

Hamamatsu S8377-128Q CMOS Linear Image Sensor

Specifications

Brand: Hamamatsu
Model: S8377-128Q
Origin: Japan
Effective Pixels: 128 × 1 pixels
Pixel Size: 50 μm (W) × 500 μm (H)
Pixel Pitch: 50 μm
Image Size: 6.4 mm × 0.5 mm
Spectral Response Range: 200 nm to 1000 nm
Window Material: Quartz glass (standard)
Cooling Type: Non-cooled

Electrical and Performance Parameters
Supply Voltage: 5 V single supply (recommended range 4.75 V – 5.25 V)
Max Operating Clock Frequency: 500 kHz
Max Line Rate: Approx. 3846 lines/sec
Output Impedance: 1 kΩ
Power Consumption: Typical 25 mW (Ta=25℃, Vdd=5V)
Gain Selection: Switch via VG pin, 5 V for low gain, 0 V for high gain

Interface and Control
Control Signals: Only need Start Pulse (ST) and Clock Pulse (CLK) to operate, compatible with CMOS logic levels
Output Signals: Video output (VIDEO), non-inverted; End of Scan Signal (EOS)

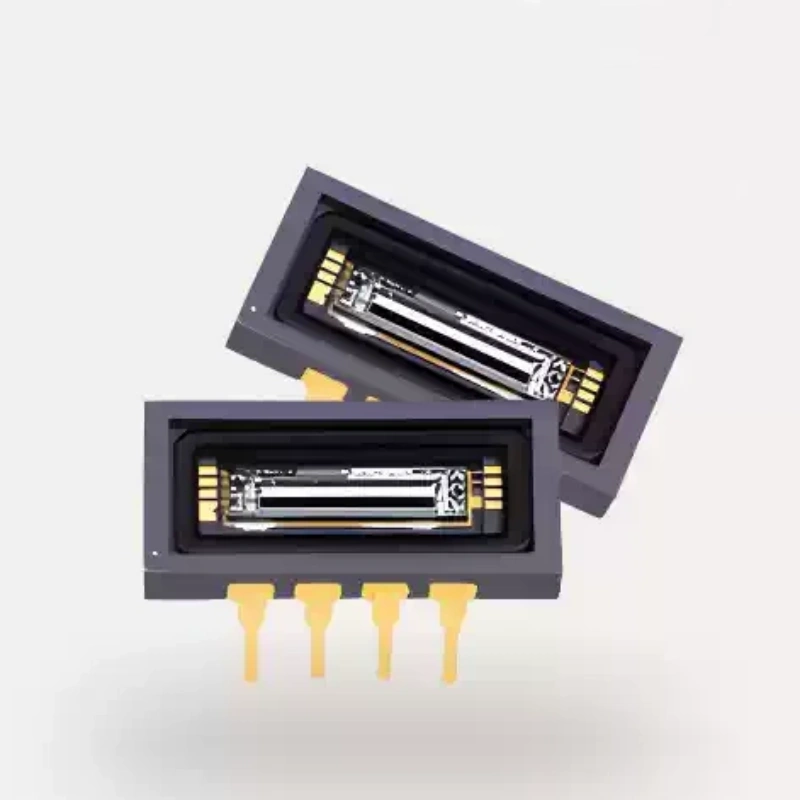

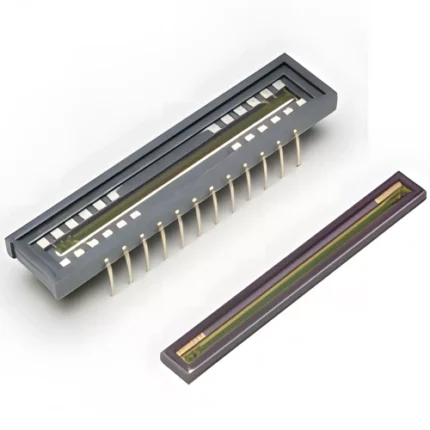

Package Type: Ceramic package, 8-pin DIP
