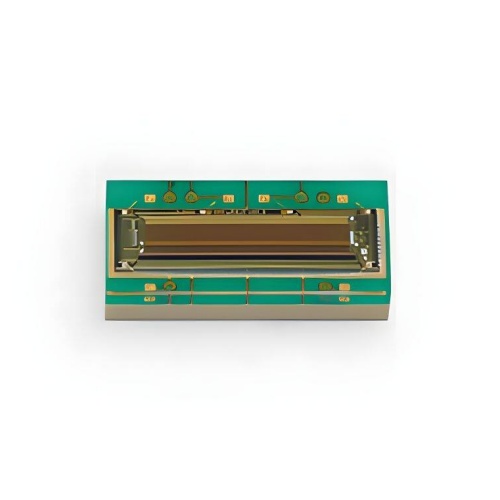

Hamamatsu S10227-10 CMOS line-scan image sensor

Hamamatsu S10227-10 CMOS line-scan image sensor

Specifications

Brand: Hamamatsu
Model: S10227-10
Origin: Japan
Effective Pixels: 512 × 1 pixels
Pixel Size: 12.5 μm (pitch) × 250 μm (height)
Image Size: 6.4 mm × 0.25 mm

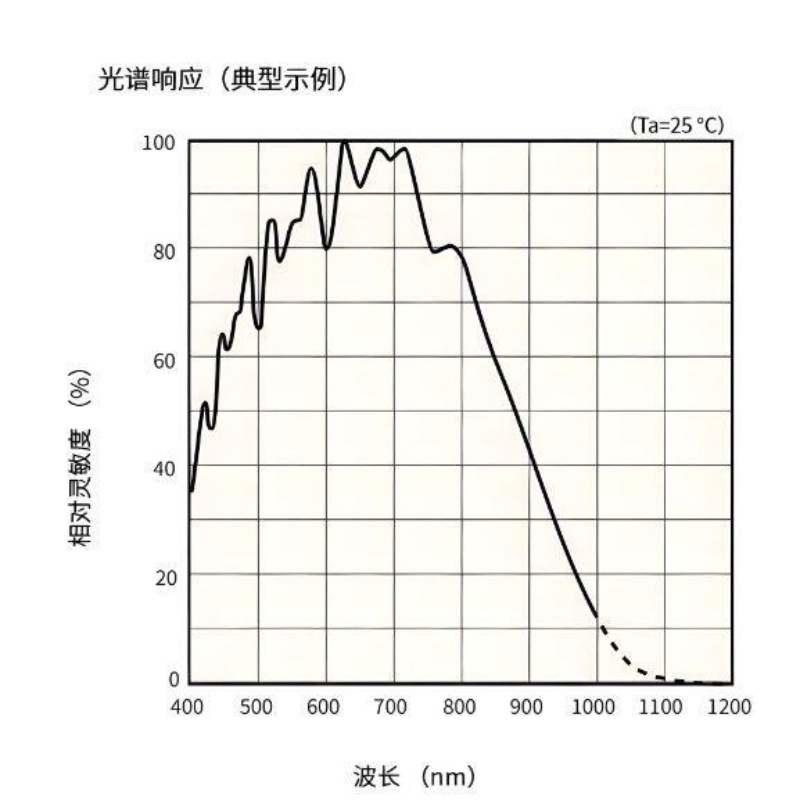

Spectral Response Range: 400 nm to 1000 nm
Maximum Data Rate: 5 MHz
Maximum Line Rate: approx. 9434 lines/sec

Electrical and Mechanical Specs
Supply Voltage: Single 5 V power source
Drive Method: Built-in timing generator; only start pulse (ST) and clock pulse (CLK) needed to operate
Package Type: Glass epoxy, with resin-sealed window made of silicone resin
Package Dimensions: approx. 4.4 mm × 9.1 mm × 1.6 mm (H)
Operating Temperature: Non-cooled type, typical test condition Ta = 25°C

Main Features
Supports Simultaneous Charge Integration
With electronic shutter function to control exposure time
High sensitivity, low dark current, low noise design
On-chip charge amplifier, simplifying external circuit design
